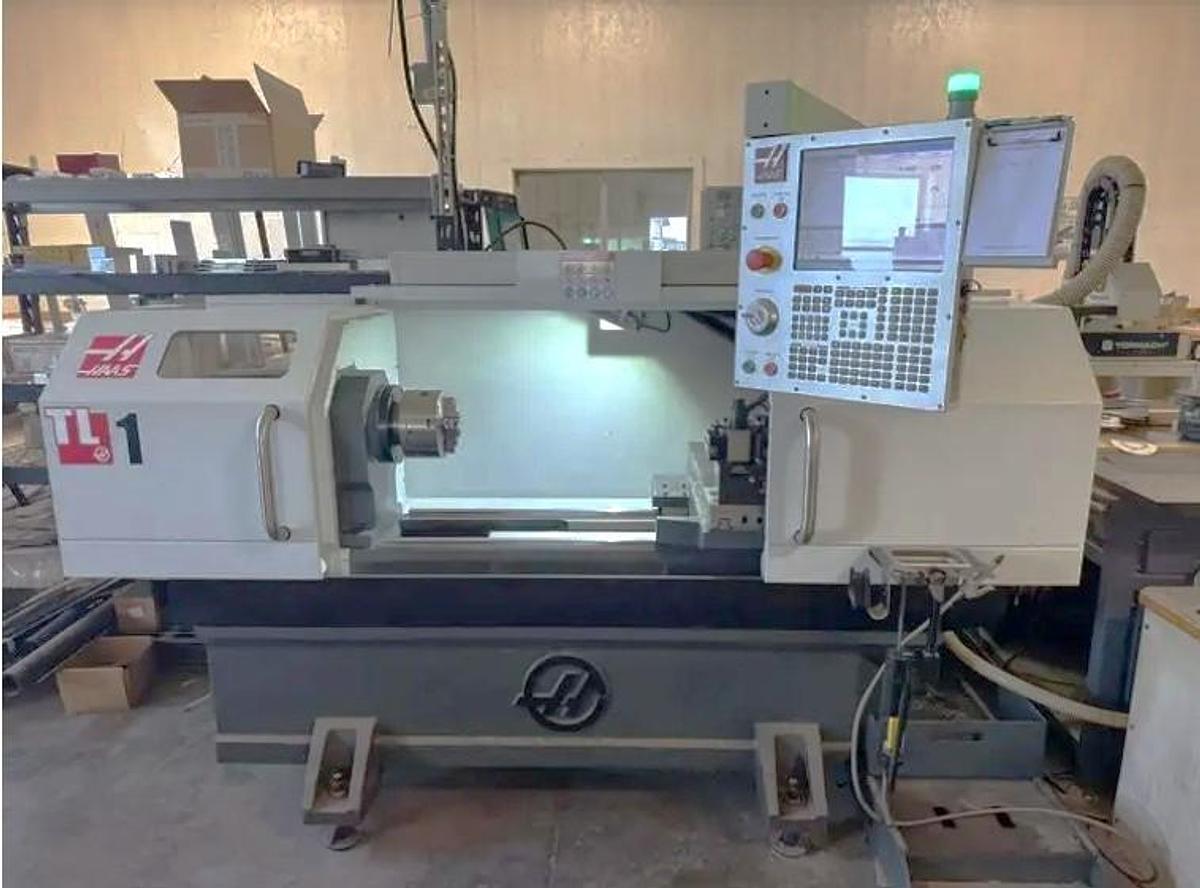

2019 Haas TL-1 with 2.31" Bore, 8" 3 Jaw Chuck, Tailstock, Some Tooling, USB Port
2019 Haas TL-1 with 2.31" Bore, 8" 3 Jaw Chuck, Tailstock, Some Tooling, USB Port
$28.500 (USD)
Ubicación:Míchigan
o
Llamar (863) 439-6066
Descripción
4 Sided Tool Post
Tailstock
8" 3 Jaw Manual Chuck
Haas Visual Part Programming Software
Coolant System with Tank & Pump
Integral Chip-Flow Channel
Full Enclosure Doors
USB Port Interface
RS 232 Port Interface
Work Light
Machine can be wired either single phase or three phase electrics
**This machine is showing almost no use**
Especificaciones
| Fabricante | Haas |
| Modelo | TL-1 |
| Año | 2019 |
| Condición | Usado |
| Número de Stock | 120314 |
| Control | Haas CNC Control |
| Chuck Size | 8" 3 Jaw Chuck |
| Maximum Swing over Bed | 16" |
| Maximum Swing Over Cross Slide | 8.5" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 30" |
| X-axis travel | 8" |
| Z-Axis Travel | 30" |
| Spindle Nose / Spindle Bore | A2-5" / 2.31" |
| Spindle Speeds | 2,000 RPM |
| Spindle Motor | 12 HP |
| Number of Turret Positions | 4 Sided Tool Post |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Machine Dimensions | 88" x 56" x 75" |
| Machine Weight | 4,100 lbs. |
