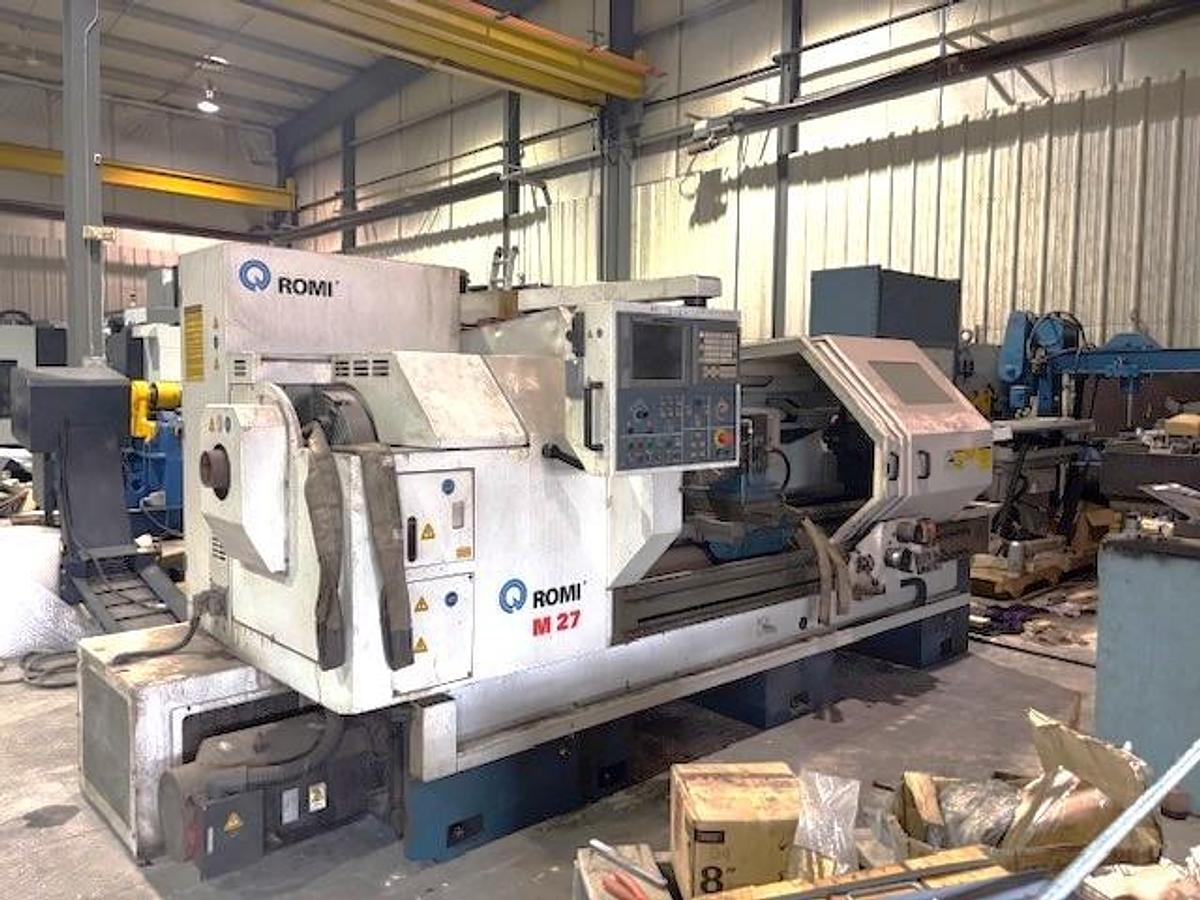

2000 Romi M27 x 80" with 6.77" Big Bore Spindle, Front & Rear Chucks, 8 Station Turret, Tailstock
2000 Romi M27 x 80" with 6.77" Big Bore Spindle, Front & Rear Chucks, 8 Station Turret, Tailstock
$39.500 (USD)
Ubicación:Alberta, Canadá
o
Llamar (863) 439-6066
Descripción
Big Bore 6.77" Spindle Bore
21" 3 Jaw Manual Front Chuck (full bore through hole)
19.5" 4 Jaw Manual Rear Chuck (full bore through hole)
8 Station Turret
Tailstock
Conversational Programming
Manual Guide Control Capability
X & Z Axis Electronic Hand Wheels
Auto Lubrication System
Spindle Motor Switch for Manual Operation
Splash Guard Doors to Create Full Enclosure
Complete Coolant System with Tank & Pump
Work Light
Card Interface
RS 232 Port Interface
All Available Tooling (Crate of Tooling goes with)
Especificaciones
| Fabricante | Romi |
| Modelo | M27 x 80" with 6.77" Big Bore Spindle |
| Año | 2000 |
| Condición | Usado |
| Número de Stock | 120284 |
| Machine Control | Fanuc 21i-T Control |
| Maximum Swing over Bed | 26.97" |
| Maximum Swing Over Cross Slide | 16.93" |
| Distance Between Centers | 87.73" |
| X-Axis Travel | 14.17" |
| Z-Axis Travel | 80.78" |
| Spindle Nose / Bore / Bar Capacity | A2-11" / 6.77" / 6.77" |
| Spindle Speeds | 2 - 1,800 RPM |
| Spindle Motor | 30 HP |
| Number of Tool Positions | 8 Station Turret |
| Rapid Traverse Rates | 295 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.94" / 7.08" / #5MT |
| Floor Space Required | 176" x 80" |
| Machine Weight | 13,955 lbs |
