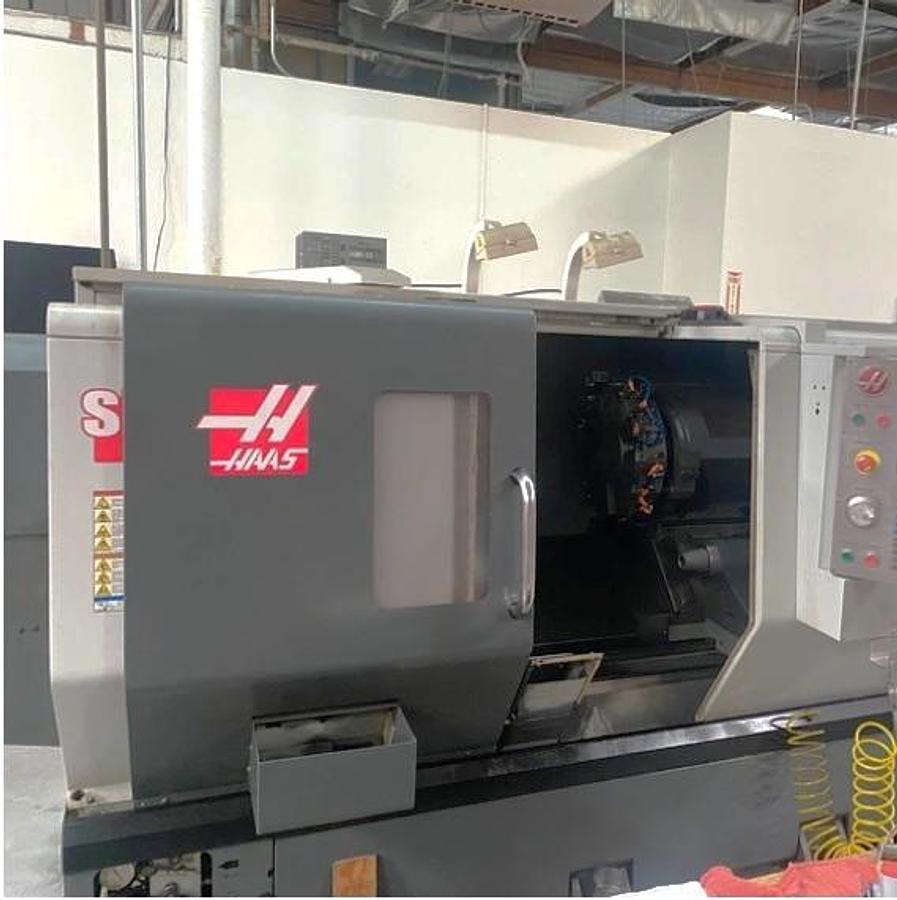

2012 Haas ST-20 with Tailstock, Chip Conveyor, Parts Catcher, 8" Hydr. Chuck

2012 Haas ST-20 with Tailstock, Chip Conveyor, Parts Catcher, 8" Hydr. Chuck

$29.500 (USD)

Ubicación:California

o
Llamar (863) 439-6066

Descripción

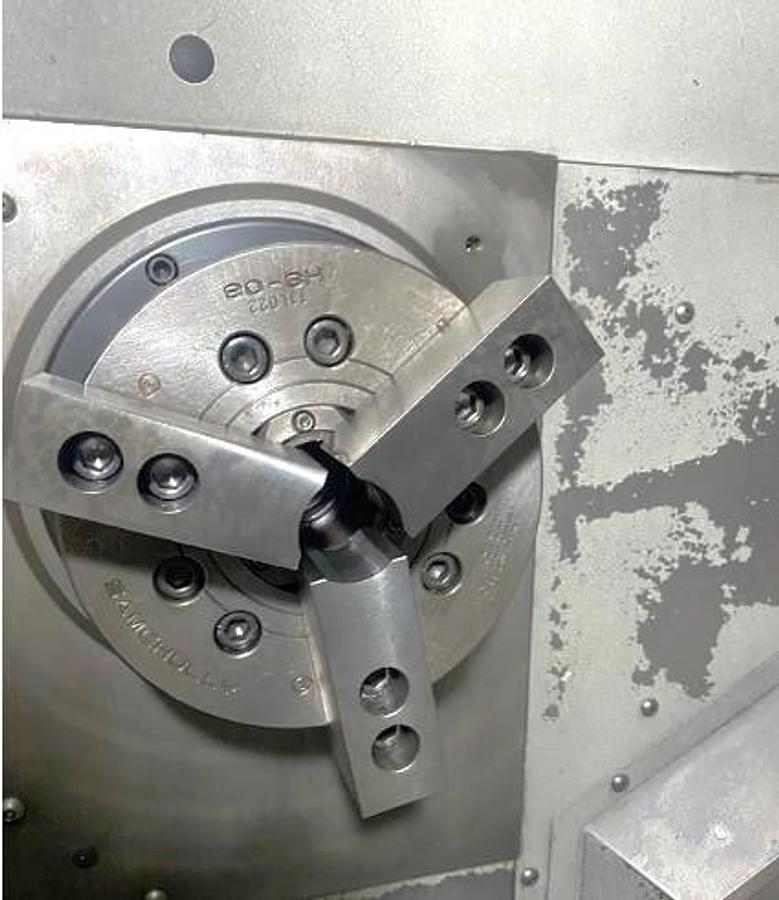

8.3" 3-Jaw Samchully Hydraulic Chuck

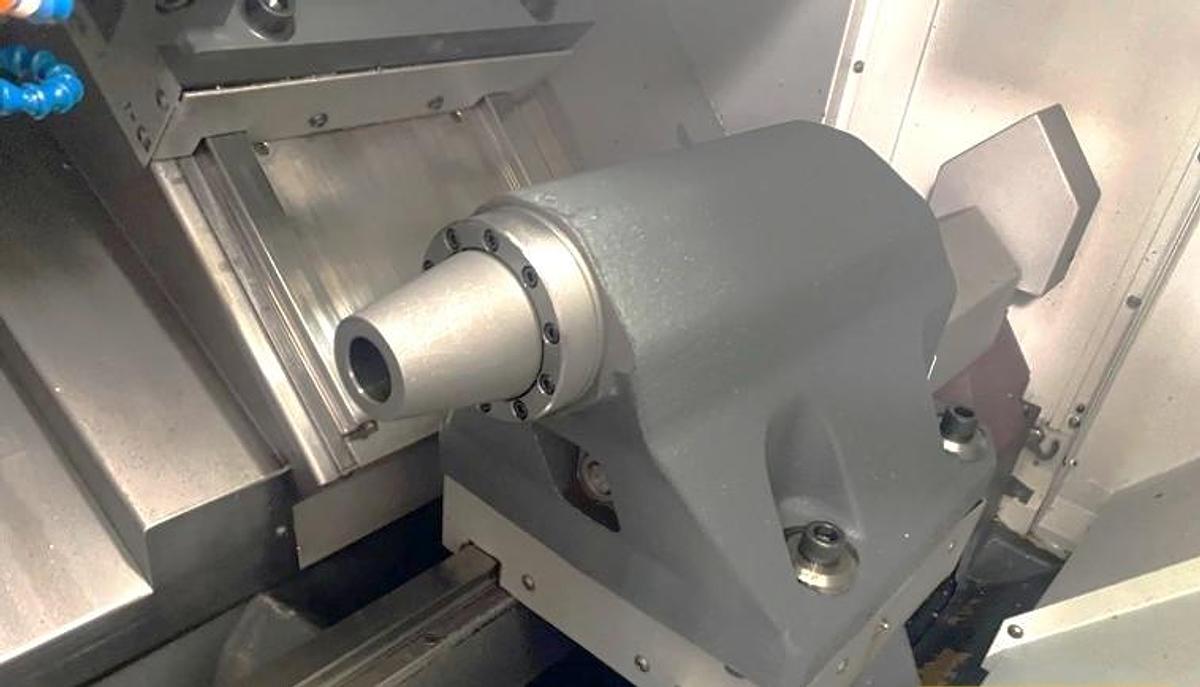

Programmable Tailstock

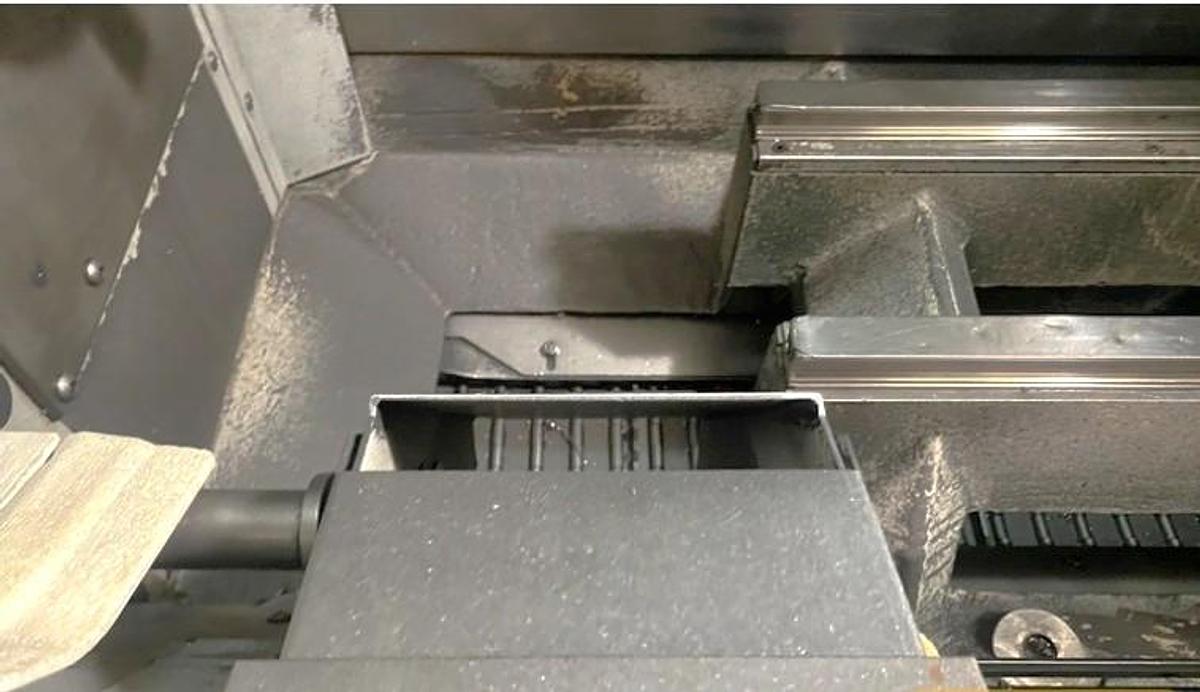

Chip Conveyor

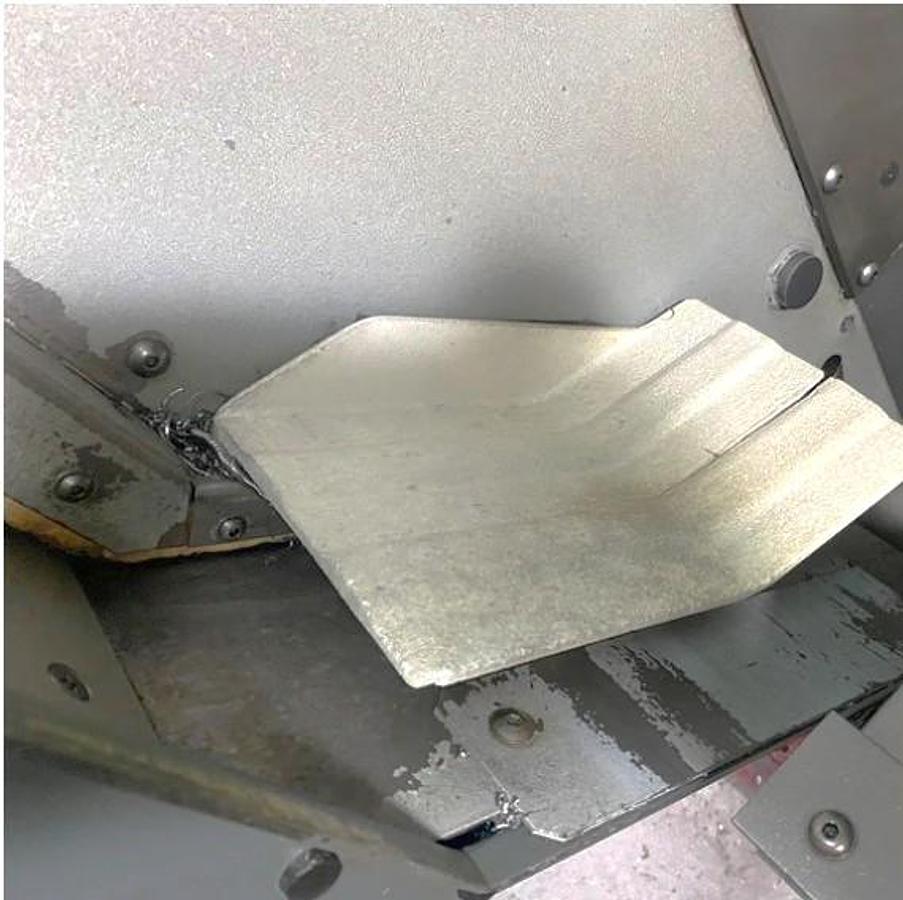

Parts Catcher

High Intensity Lighting

Foot Pedals for Chuck Jaws Open/Close and Tailstock Quill

Complete Coolant System with Tank & Pump

RS 232 Port Interface

All Available Tool Blocks

Mostrar Todo

Especificaciones

FabricanteHaas
ModeloST-20
Año2012
CondiciónUsado
Número de Stock120281
Chuck Size8.3" Samchully Hyd. Chuck
Maximum Swing/Over Carriage23" / 9.5"
Maximum Turning Diameter / Length10.3" / 20"
Center Distance24"
Spindle Nose / Bore / Bar CapacityA2-6" / 3" / 2"
Spindle Speed5,000 RPM
Spindle Motor20 HP

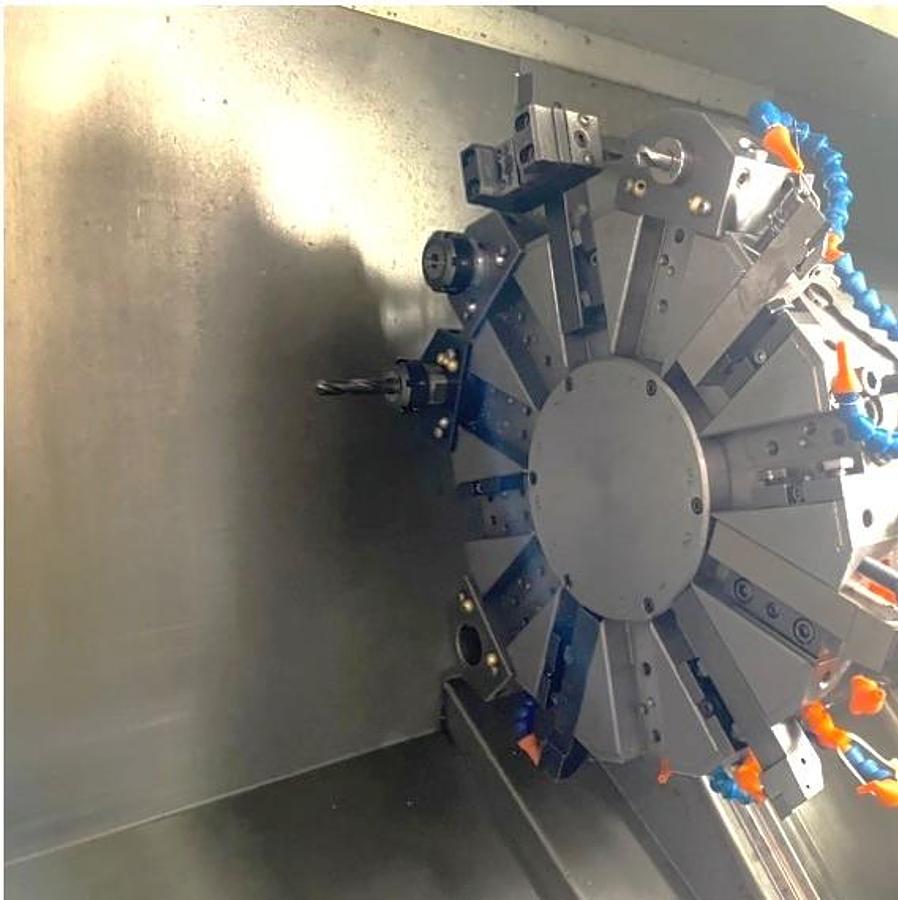

Number of Turret Positions12 Position Turret
Rapid Traverse Rates710 ipm
Tailstock Body Travel / Center20" / #4 MT
Machine Dimensions LxWxH126.5" x62"x72"
Machine Weight9,000 lbs
