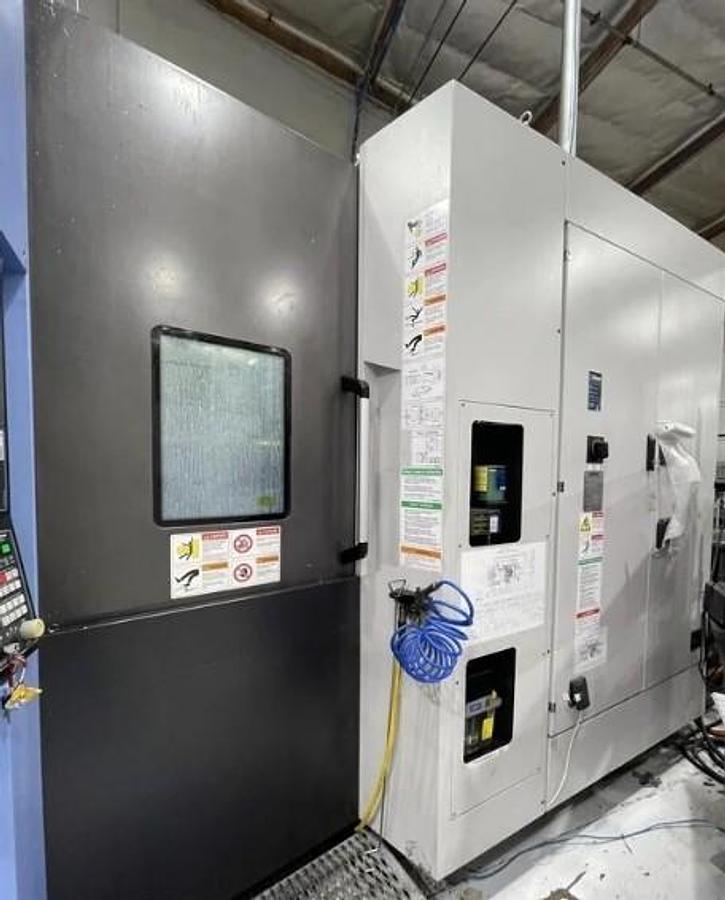

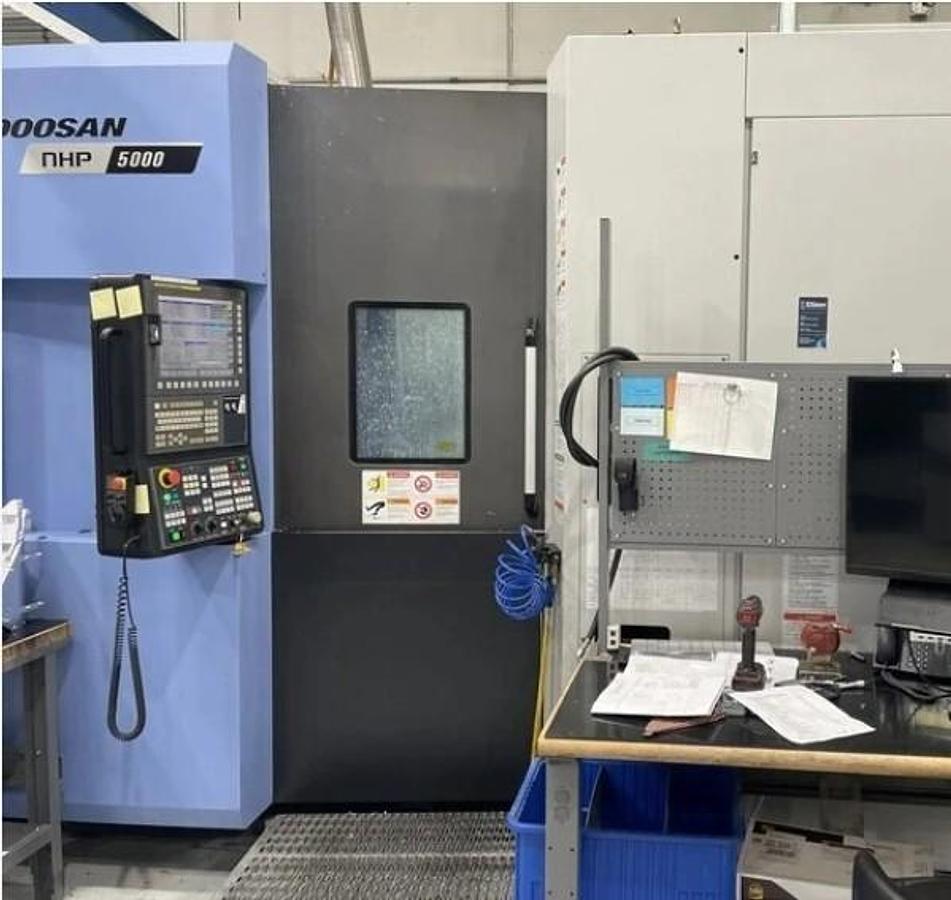

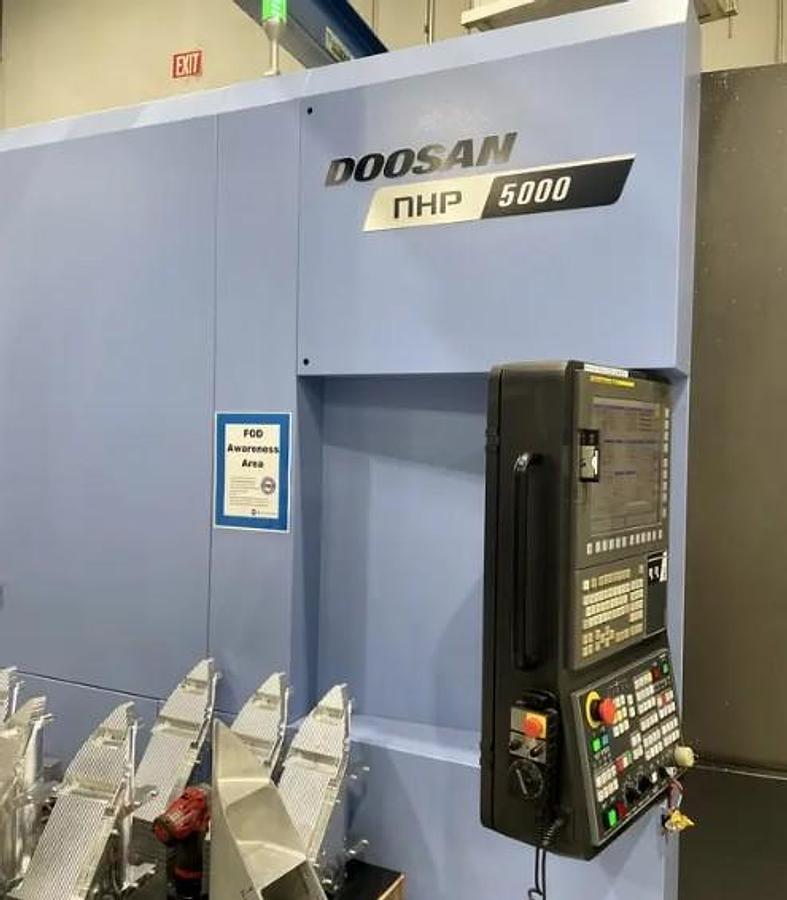

2018 Doosan NHP 5000 with Full 4th Axis Rotary, 120 ATC, 15k RPM, High Press. CTS, Renishaw Probing, More!!!!
2018 Doosan NHP 5000 with Full 4th Axis Rotary, 120 ATC, 15k RPM, High Press. CTS, Renishaw Probing, More!!!!
$194.500 (USD)
Ubicación:Estados Unidos
o
Llamar (863) 439-6066
Descripción

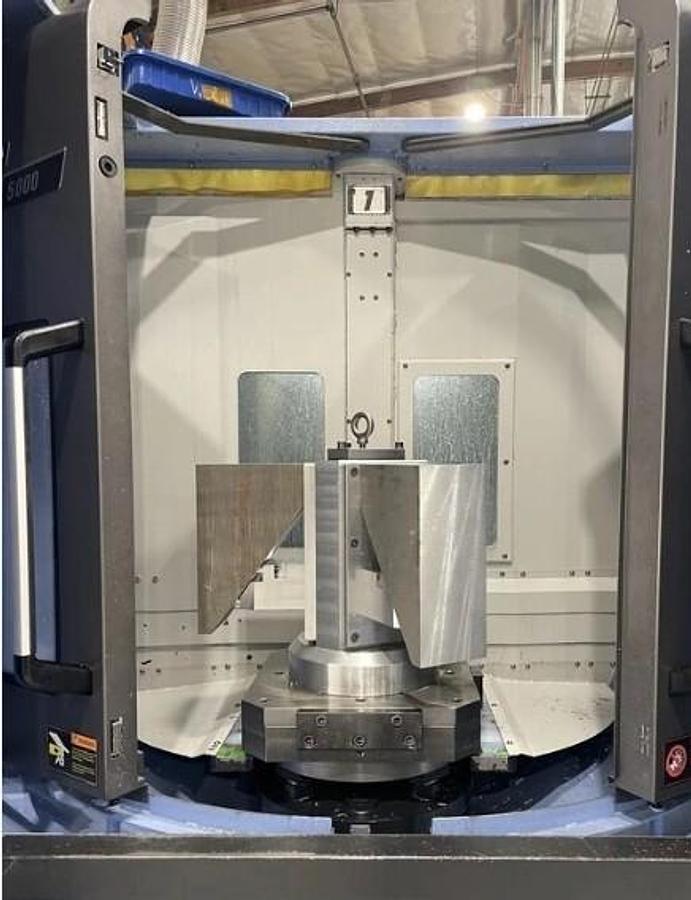

2 Pallet Changer System
Full 4th Axis Rotary Table
120 Station Tool Changer
Coolant Through the Spindle - 1,000 PSI High Pressure
Cooljet (70-30) High Pressure Coolant Unit
Renishaw Probing System
120 Station Tool Changer

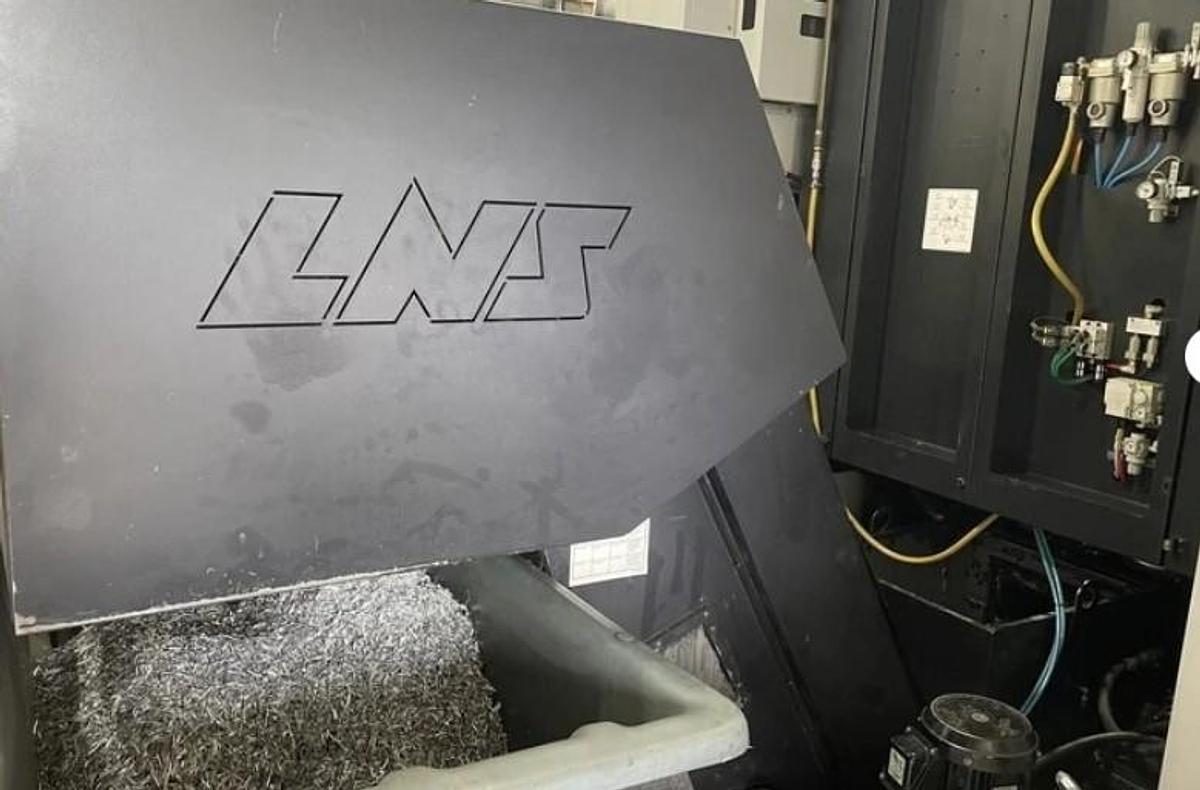

Chip Conveyor
15,000 RPM Spindle
CAT 40 Big Plus Spindle
Rigid Tapping
-Remote Jog Handle
Spindle Orientation
Work Light
Wired 220V Electrics
All Available Manuals

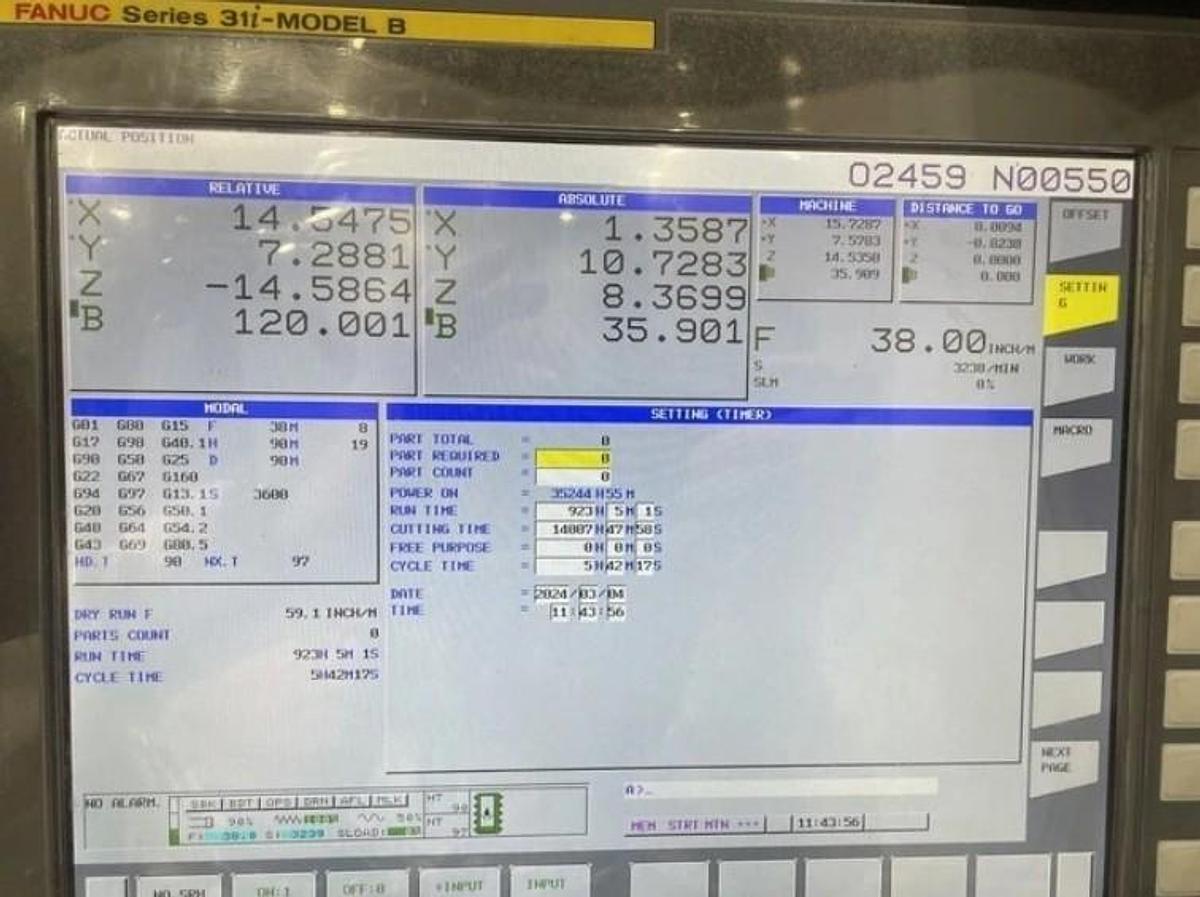

**Cutting Hours of 14,007**
**Price as equipped new at $400,000**
**Used to primarily cut aluminum and 321 stainless steel**

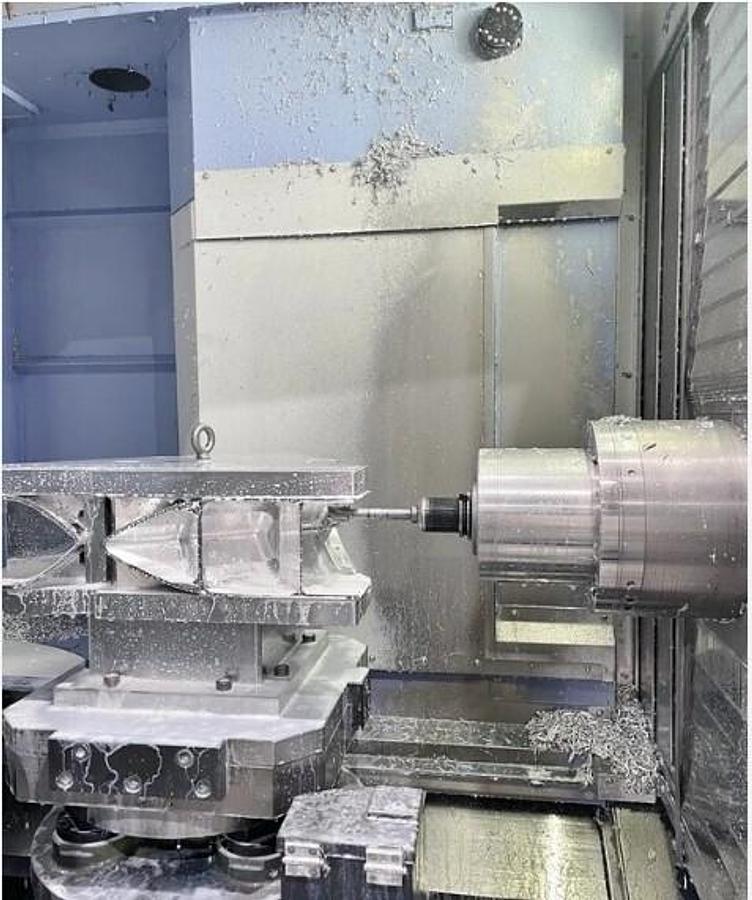

**Tombstones/workholding seen in photos are not included with machine**
Especificaciones
| Fabricante | Doosan |
| Modelo | NHP 5000 |
| Año | 2018 |
| Condición | Usado |
| Número de Stock | 120280 |

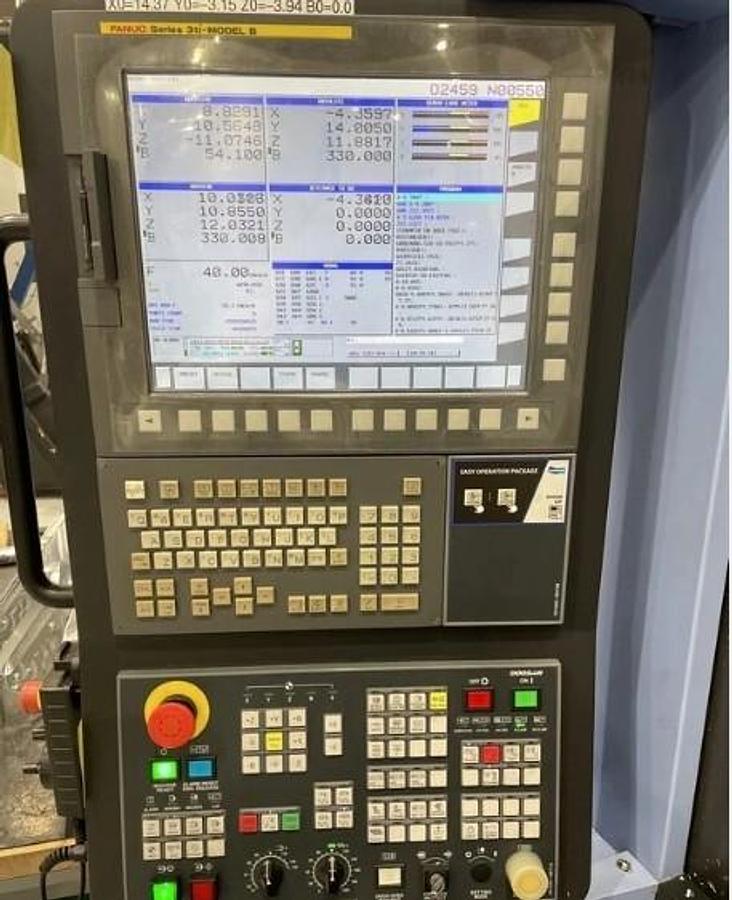

| Machine Control | Fanuc 31iMB Control |
| Pallet Size / Number of Pallets | 19.7" x 19.7" / 2 Pallets |
| Maximum Table Load | 1,100 lbs. |
| Pallet Indexing | .001 Degree Full 4th Axis |
| Maximum Workpiece Size D x H | 31.5" x 39.4" |
| X-Axis Travel | 28.7" |
| Y-Axis Travel | 28.7" |
| Z-Axis Travel | 34.6" |

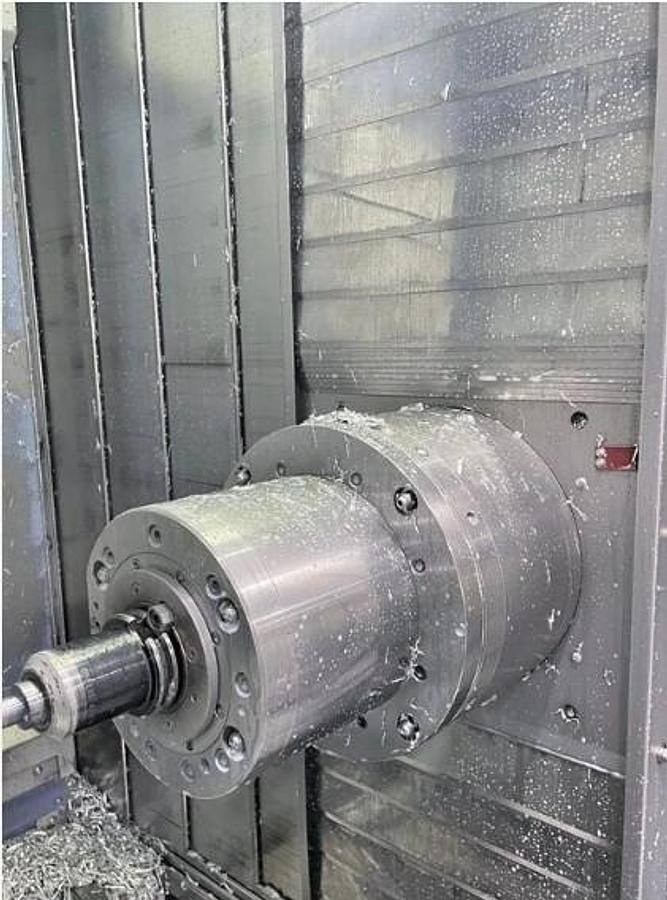

| Spindle Taper | CAT #40 Big Plus |
| Spindle Speeds | 15,000 RPM |
| Spindle Motor | 40.2 HP |
| Number of Tool Positions | 120 Station Tool Changer |
| Maximum Tool Diameter / Length | 6.69" / 21.6" |
| Rapid Traverse Rates | 2362 IPM |
| Cutting Feedrates | 2362 IPM |
| Machine Dimensions | 214" x 105" x 114" |
| Machine Weight | 34,000 lbs. |
