1985 Hitachi Seiki 7NF-1100 w/ (2) 24" 4 Jaw Manual Chks. with 12" Hole, 10" Spindle Bore & Bar Cap., Tailstock, Fanuc 6TB Control
1985 Hitachi Seiki 7NF-1100 w/ (2) 24" 4 Jaw Manual Chks. with 12" Hole, 10" Spindle Bore & Bar Cap., Tailstock, Fanuc 6TB Control
Contáctenos para conocer el precio
Ubicación:Texas
o
Llamar (863) 439-6066
Descripción

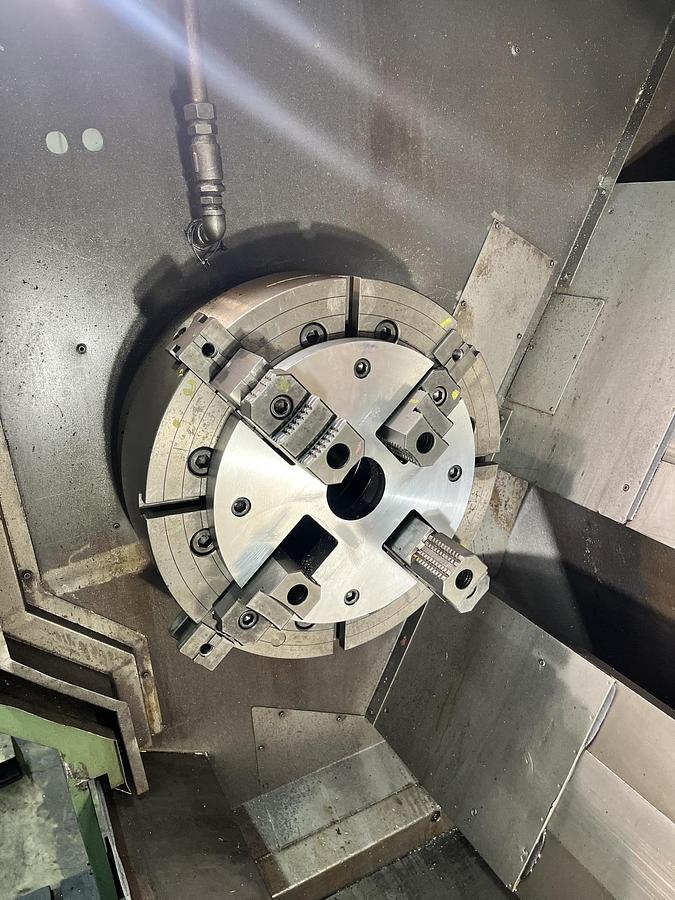

(2) 24" 4 Jaw Manual Chucks for Front & Rear with 12" Hole Through Chucks
10" Maximum Bar Capacity Through Spindle

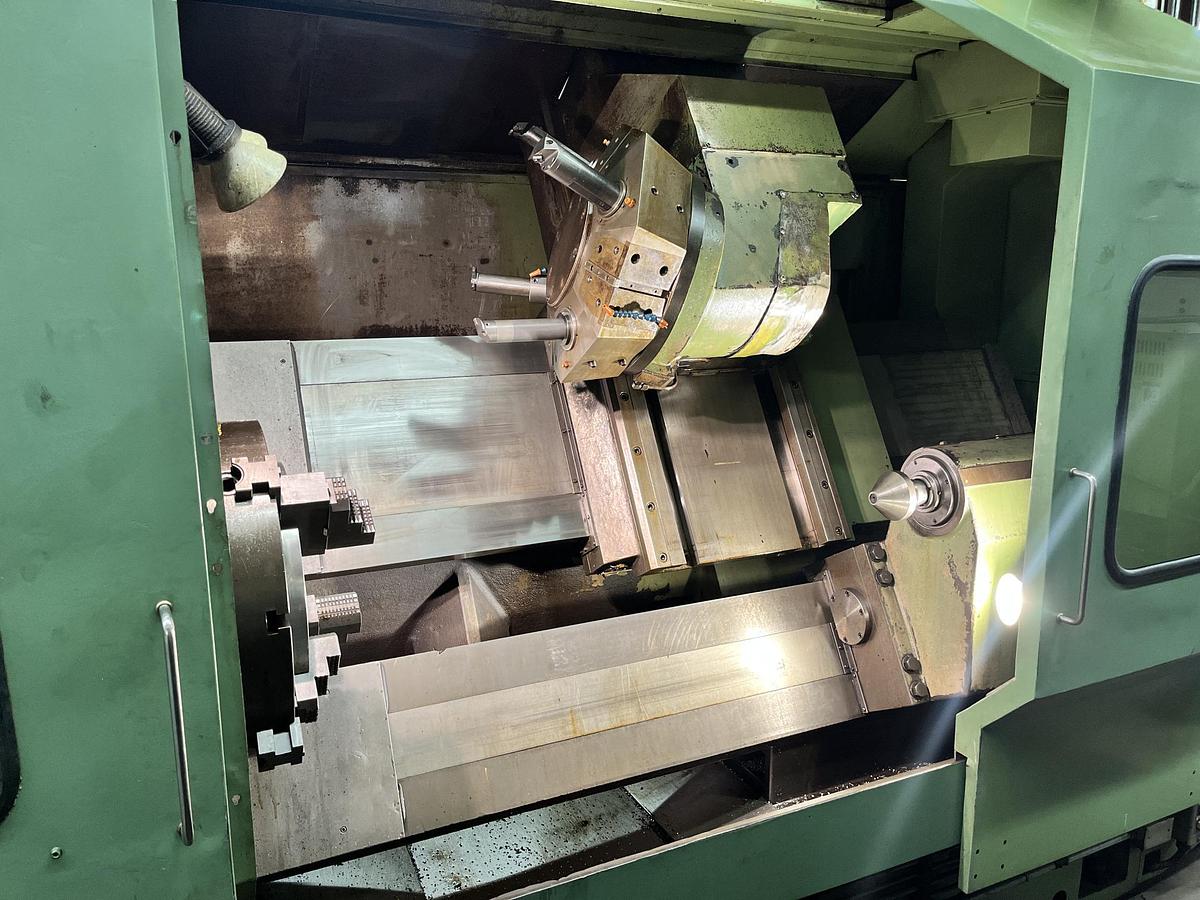

Tailstock

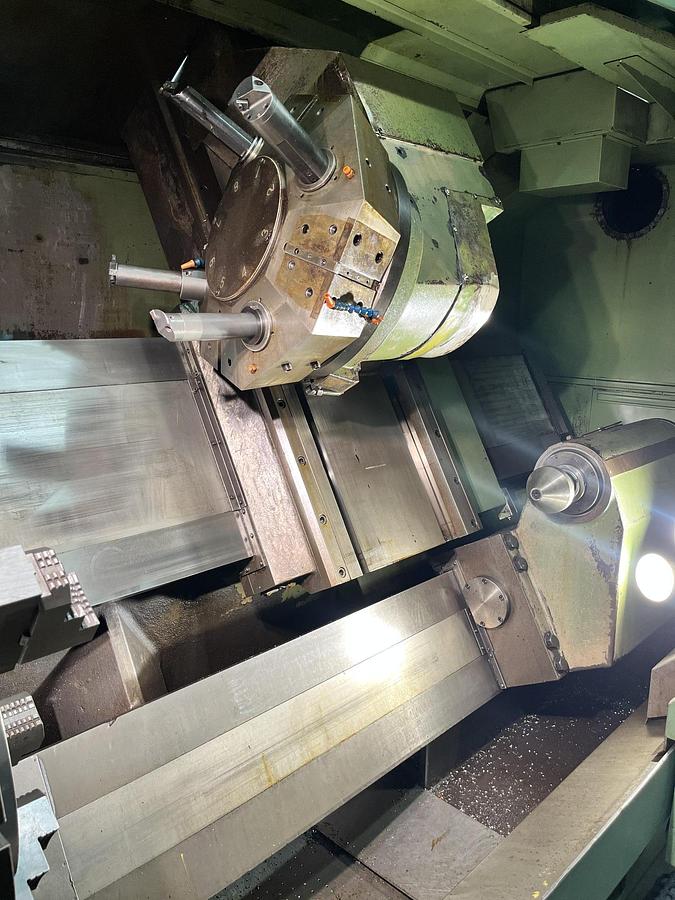

8 Station Turret with 4 OD Position & 4 ID Positions
RS-232 Port Interface
Flood Coolant

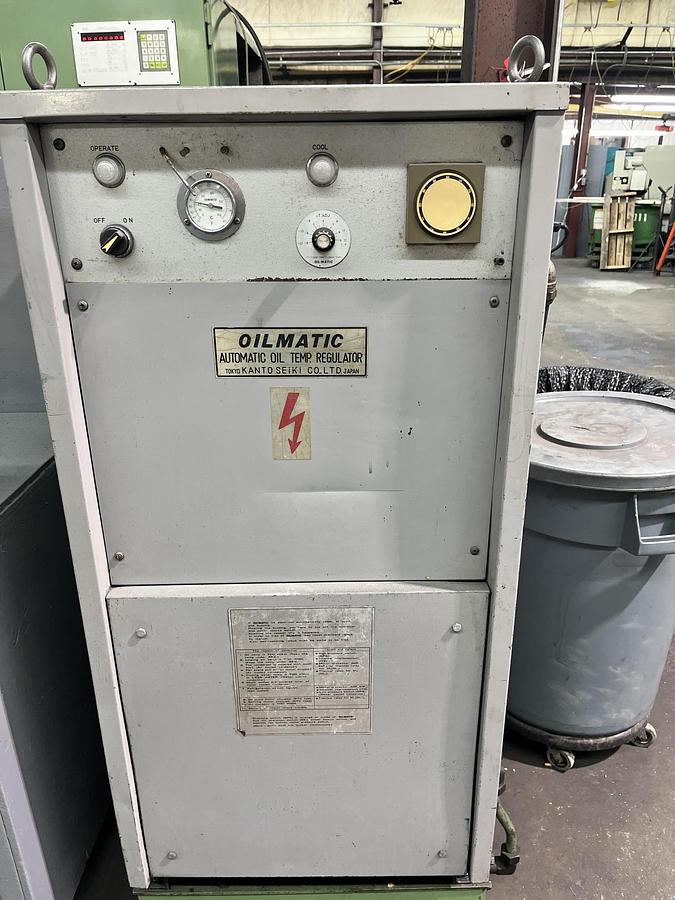

Oilmatic Oil Temperature Regulator

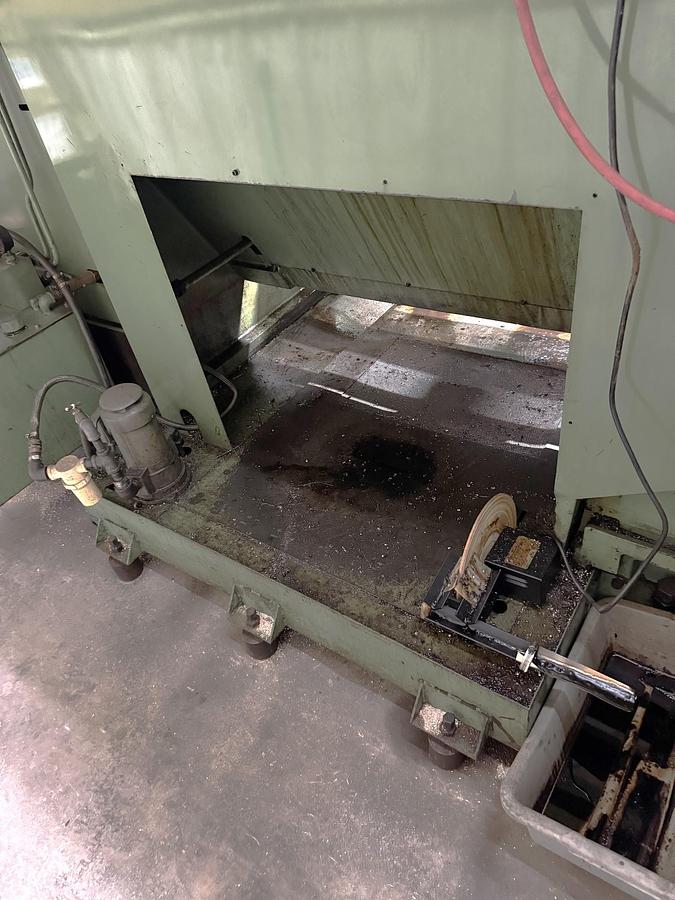

Coolant System with Tank & Pump
Boxed Ways
All Available Tooling
All Available Manuals
Especificaciones
| Fabricante | Hitachi Seiki |
| Modelo | 7NF-1100 |
| Año | 1985 |
| Condición | Usado |
| Número de Stock | 120132 |

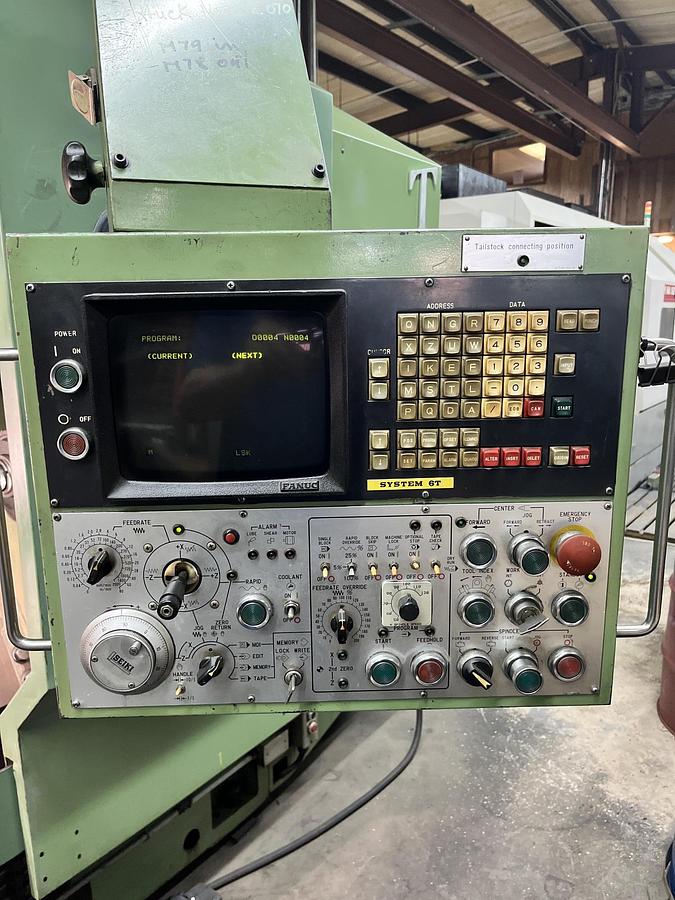

| Machine Control | Fanuc 6TB |
| Chuck Size | (2) 24" 4 Jaw Manual Chucks w/ 12" Hole Through |
| Maximum Swing | 34.6" |
| Maximum Swing Over Cross Slide | 25" |
| Maximum Machining Diameter | 22" |
| Distance Between Centers | 50" |
| X-Axis Travel | 21.5" |
| Z-axis travel | 40" |
| Spindle Speeds | 10 - 600 RPM |
| Spindle Nose / Bore / Bar Capacity | A1-15" / 10" / 10" |
| Spindle Motor | 60 HP |
| Number of Turret Positions | 8 Station Turret (8 OD & 4 ID) |
| Rapid traverse rates | 472 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 7.1" / 7.1" / MT #4 |
| Tailstock Body Travel | 35.4" |
| Machine Dimensions LxWxH | 216" x 96" x 118" |
| Machine weight | 33,340 lbs |
