2019 Haas GM-2-5AX with Nutating Head, Probing, Hi-Speed Machining, Chip Auger, 20,000 RPM, REBUILT TO NEW SPECS

2019 Haas GM-2-5AX with Nutating Head, Probing, Hi-Speed Machining, Chip Auger, 20,000 RPM, REBUILT TO NEW SPECS
$269.500 (USD)
Ubicación:Illinois
Descripción
Haas Wireless Probing Package
30 Station Side Mounted Tool Changer
Auger Style Chip Conveyor
Dynamic Work Offsets and Tool Center Point Control
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Visual Part Programming System
High Speed Machining
1" Thick Aluminum Table
Coolant Tank Oil Skimmer
Coolant System with Pump and Auto Refill
Rigid Tapping
Remote Jog Handle
Second Home Position
Internal High Voltage Transformer
Early Power Failure Detection Module
Media Display M130
Haas Connect
Haas Remote Monitoring
Haas Drop
1 GB Programming Memory
Ethernet Interface
RS 232 Port Interface
Wifi Connection for Haas
**Price as equipped today is nearly $540,000**
Machine is currently having some work done on it and should be ready by end July/early August (4-6 weeks). Once work is complete machine will have been brought back to new tolerances. Ball bar and cutting test to be completed upon machine being finished.

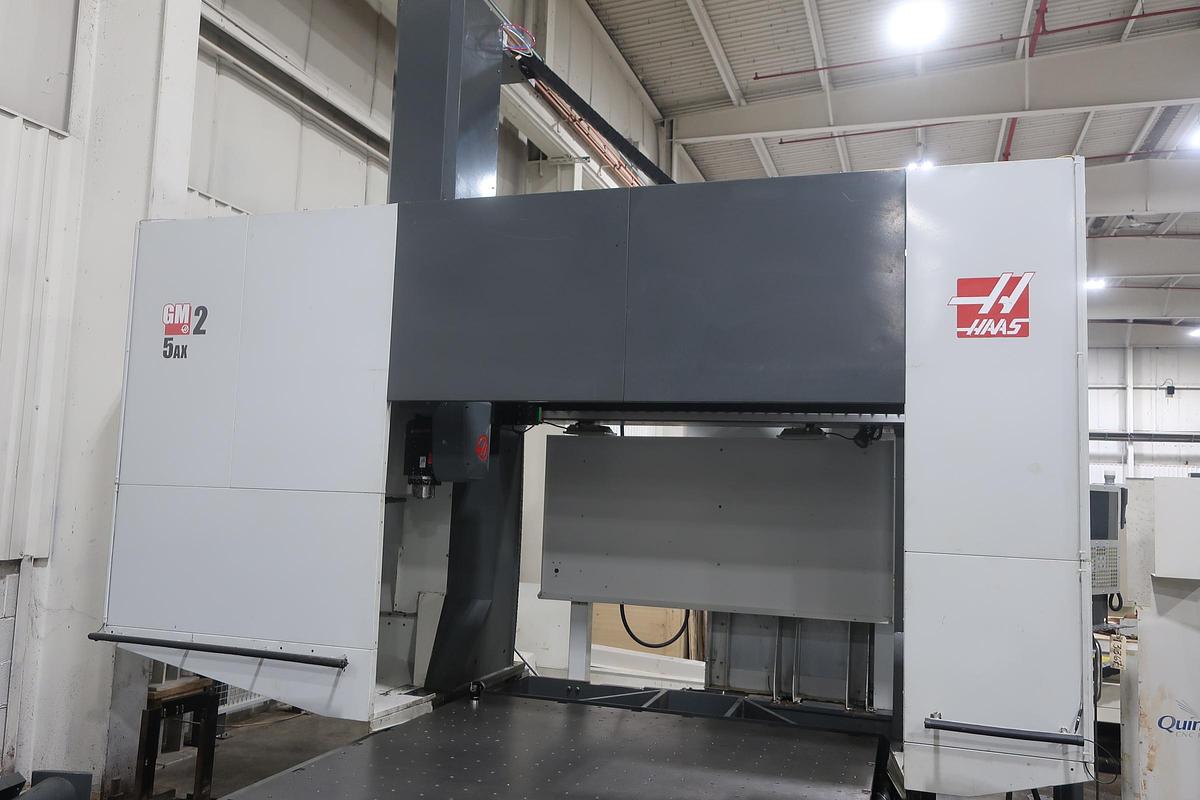

**Pictures are STOCK PHOTOS only and are for general viewing of machine only, not of actual machine**
Especificaciones
Fabricante | Haas |
Modelo | GM-2-5AX |
Año | 2019 |
Condición | Usado |
Número de Stock | 120073 |
Control | Haas CNC Control |
Table Size | 144" x 72" |
Maximum Weight on Table | 6,000 lbs. |
Distance Between Columns | 75" |
X-Axis Travel | 145" |
Y-Axis Travel | 87.5" |
Z-Axis Travel | 39.3" |
B-Axis Tilt Movement | +/- 120 Degrees |
C-Axis Rotation | +/- 245 Degrees |
Spindle Taper | HSK-63F |
Spindle Speeds | 20,000 RPM |
Spindle Motor | 16 HP |
Number of Tool Positions | 30 Station Tool Changer |
Maximum Tool Diameter / Length / Weight | 3.5" / 11" / 12 lbs. |
Rapid Traverse Rates X / Y / Z | 472 IPM / 1889 IPM / 1181 IPM |
Cutting Feedrates | 472 IPM |
Machine Dimensions | 226" x 143" x 137" |
Machine Weight | 22,040 lbs. |
Distance Spindle Nose to Table Top | 5" - 37" |
