2023 Haas TL-1 w/ 4 Station Indexable Turret, Single or Three Phase Capable, Tailstock
2023 Haas TL-1 w/ 4 Station Indexable Turret, Single or Three Phase Capable, Tailstock
$36.500 (USD)
Ubicación:Illinois
o
Llamar (863) 439-6066
Descripción
4 Way Indexable Turret

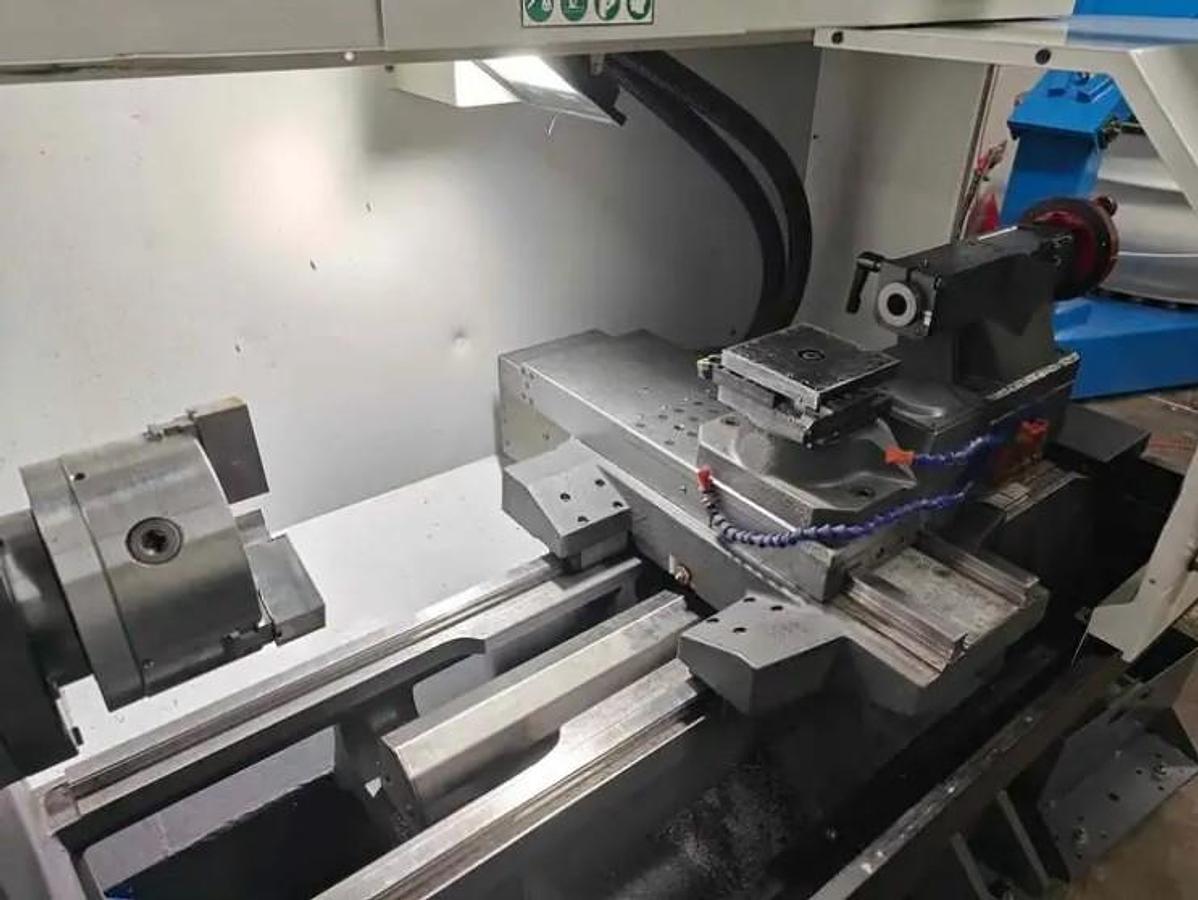

Tailstock

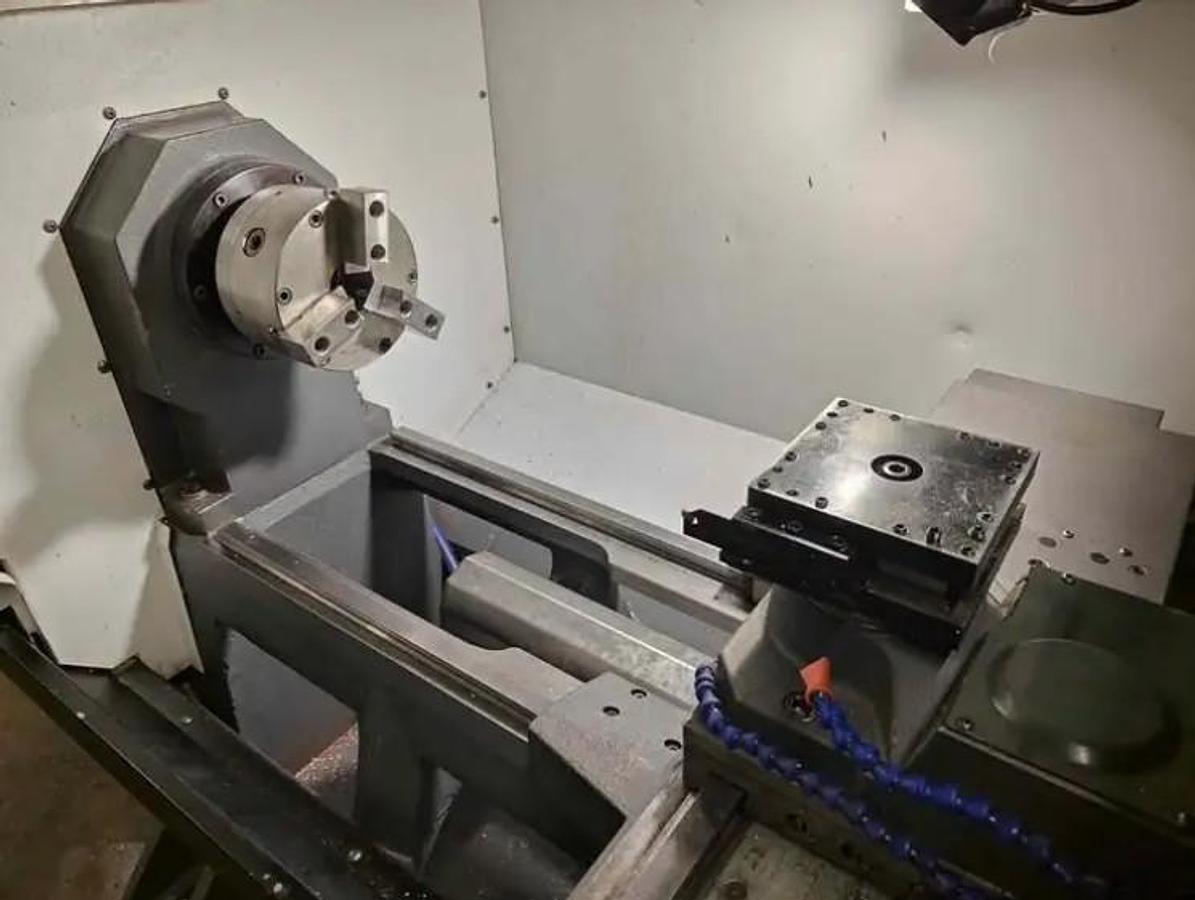

8" 3 Jaw Manual Chuck
3,000 rpm 12 hp Spindle

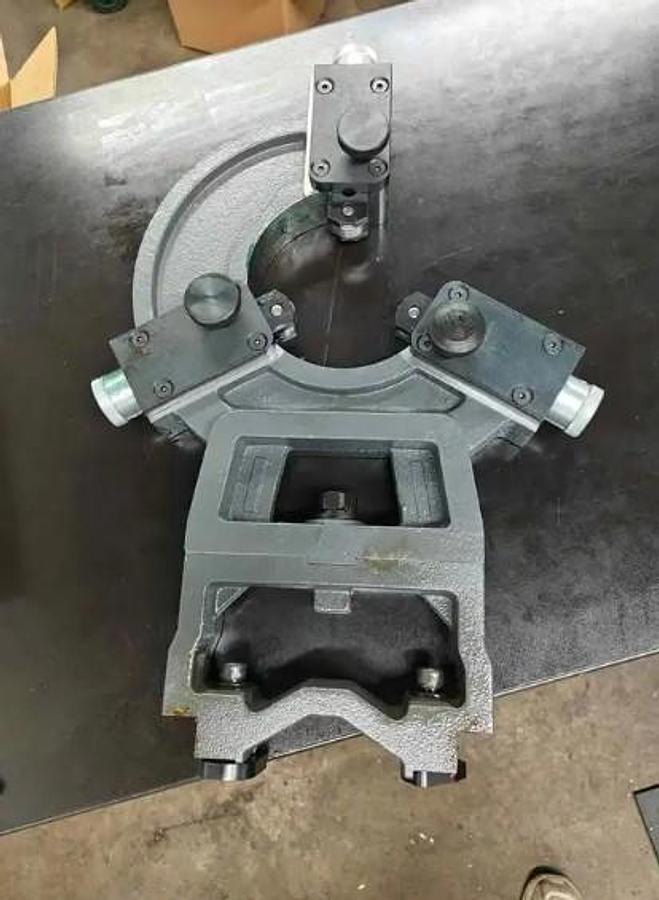

Steady Rest
Coolant System with Tank & Pump
Integral Chip-Flow Channel
Full Enclosure Doors
Ethernet Port Interface
USB Port Interface
RS 232 Port Interface
1 GB Programming Memory
Haas WiFi Connect
Work Light
Machine is wired 220V / Single Phase Electrics

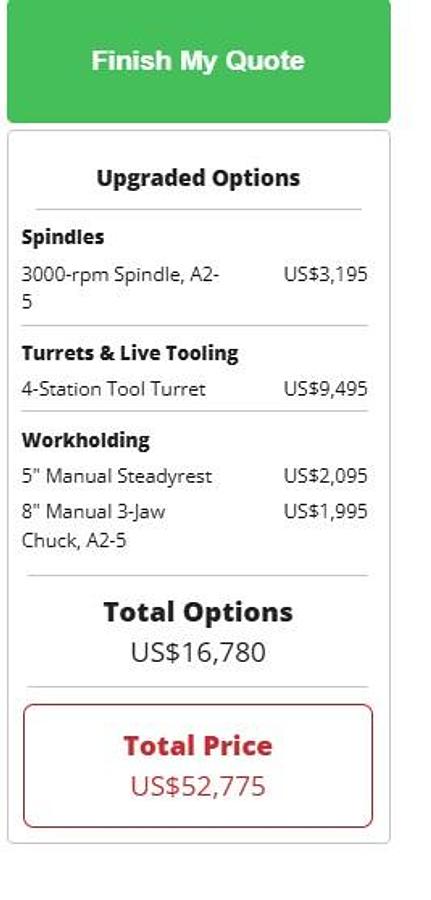

As equipped the replacement cost is $52,775
Especificaciones
| Fabricante | Haas |
| Modelo | TL-1 w/4 Position Indexable Turret |
| Año | 2023 |
| Condición | Usado |
| Número de Stock | 120065 |

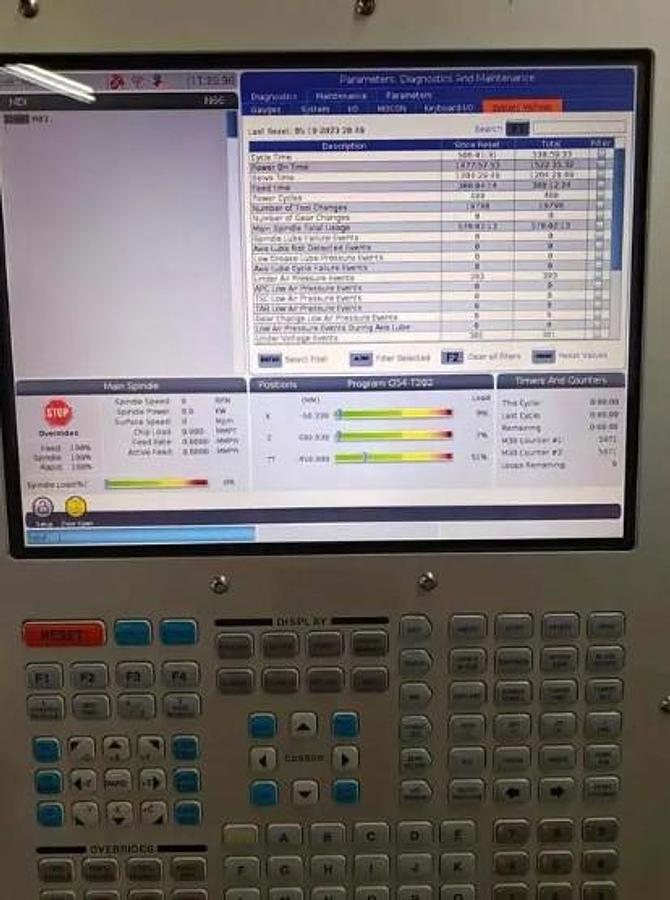

| Control | Haas NextGen Control |
| Chuck Size | 8" 3 Jaw Chuck |
| Maximum Swing over Bed | 16" |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 30" |
| X-axis travel | 8" |
| Z-Axis Travel | 30" |
| Spindle Nose / Spindle Bore | A2-5" / 2.31" |
| Spindle Speeds | 3,000 RPM |
| Spindle Motor | 12 HP |
| Number of Turret Positions | 4 Station Indexable Turret |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Machine Dimensions | 88" x 56" x 75" |
| Machine Weight | 4,100 lbs. |
