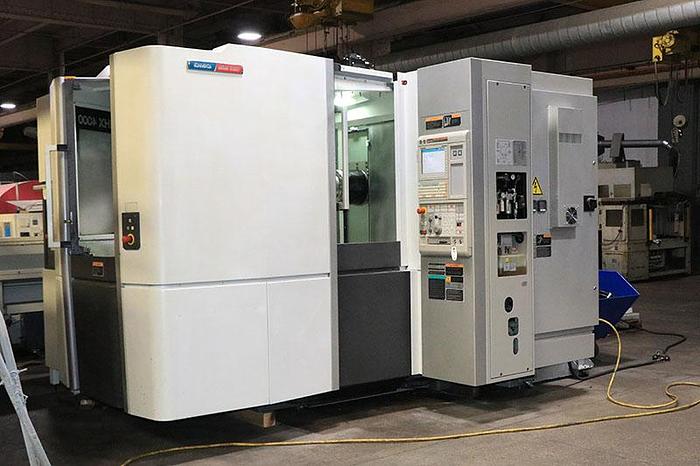

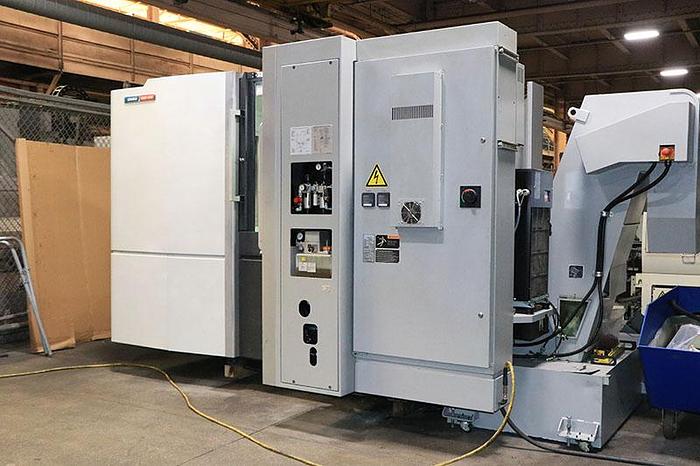

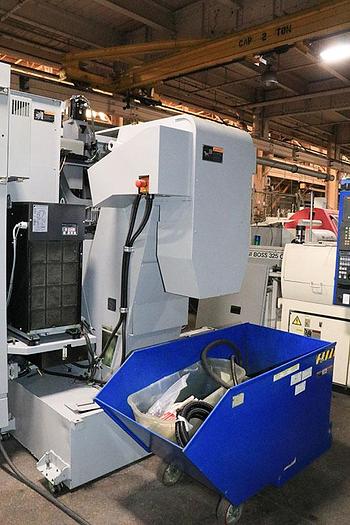

2013 DMG Mori NHX-4000 with 1 Degree Pallet Indexing, 60 Station Tool Changer, Coolant Through the Spindle

2013 DMG Mori NHX-4000 with 1 Degree Pallet Indexing, 60 Station Tool Changer, Coolant Through the Spindle

Contáctenos para conocer el precio

Ubicación:Nueva Jersey

o
Llamar (863) 439-6066

Descripción

2 Pallet Changer System
Coolant Through the Spindle

60 Station Tool Changer

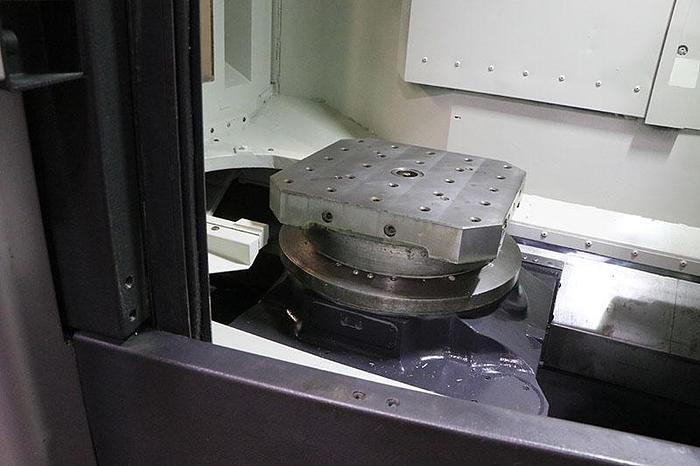

1 Degree Pallet Indexing

Coordinate System Rotation

48 Work Piece Offsets

512 KB Program Storage

Tool Life Management System
Flood Coolant
Chip Conveyor
Rigid Tapping
All Available Manuals

220V 3 Ph 60 Hz

Full Load 129 Amps

Mostrar Todo

Especificaciones

FabricanteDMG Mori
ModeloNHX-4000
Año2013
CondiciónUsado
Número de Stock119961

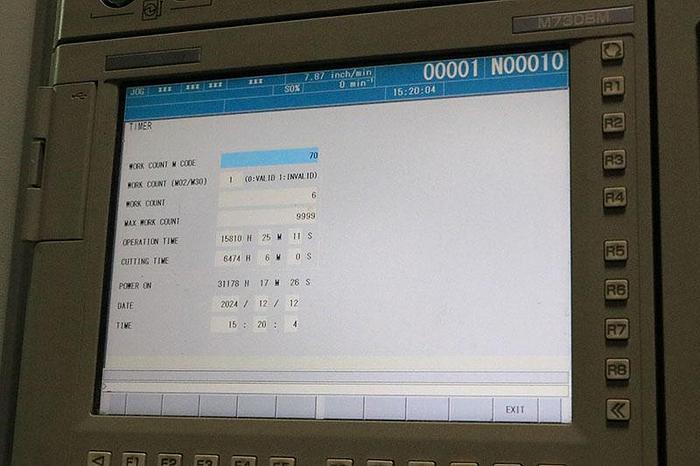

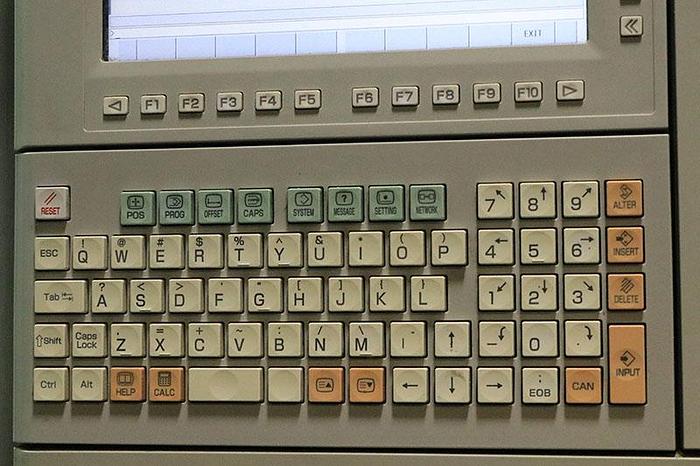

Machine ControlMitsubishi M730BM
Pallet Size / Number of Pallets15.7" x 15.7" / 2 Pallets
Pallet Indexing1 Degree Indexing
Maximum Table Load880 lbs
Maximum Part Size (DxH)24.8"x35.4"
X-Axis Travel22"
Y-Axis Travel22"
Z-Axis Travel26"

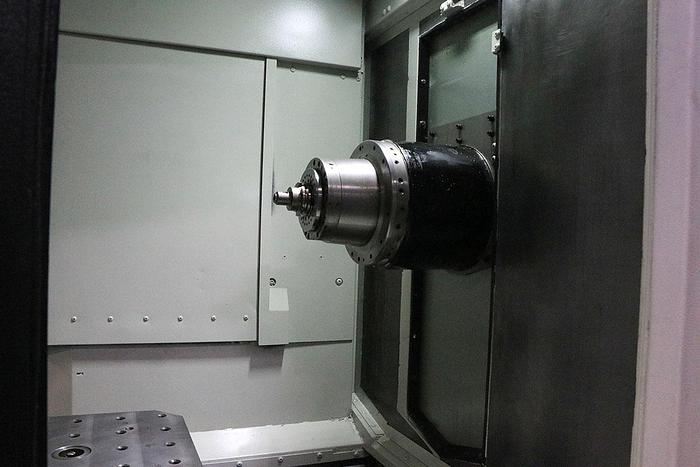

Spindle NoseCAT 40
Spindle Speed12,000 RPM
Spindle Motor40 HP
Tool Magazine Capacity60 Position Tool Changer
Maximum Tool Diameter / Length / WeightNA/ 15.7" / 17.6 lbs
Rapid Traverse Rates2,362 IPM
Machine Dimensions LxWxH107.1"x165.9"x108"
Machine Weight16,750 lbs
