2008 Haas TL-2 Big Bore with 3" Spindle Bore, 4 Station Indexable Turret, Tailstock, 10" 3 Jaw Chuck from a Tech school
Vendido
2008 Haas TL-2 Big Bore with 3" Spindle Bore, 4 Station Indexable Turret, Tailstock, 10" 3 Jaw Chuck from a Tech school
Ubicación:Carolina del Norte
Descripción

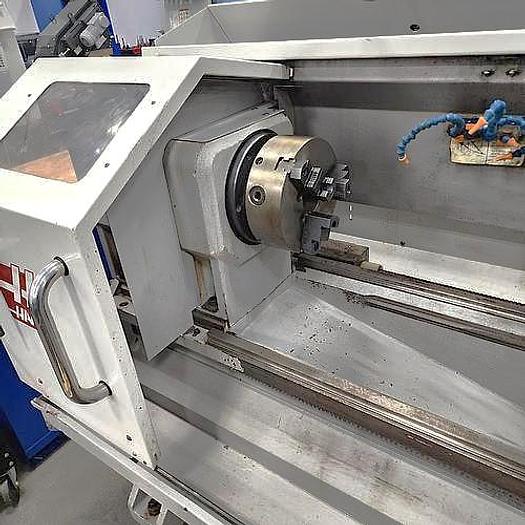

10" Buck 3 Jaw Manual Chuck
3" Spindle Bore Option

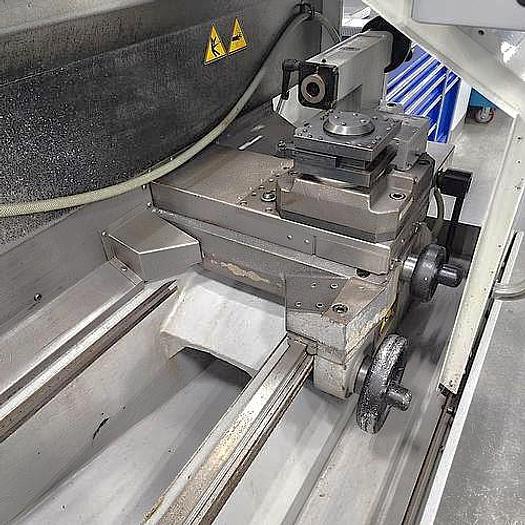

4 Station Indexable Turret
Tailstock with Live Center
Manual Hand Wheels
Coolant System with Tank & Pump
Integral Chip-Flow Channel
Full Enclosure
RS 232 Port Interface
Haas Intuitive Turning System
Vector Drive Spindle
Machine Can Run Either 240V Single Phase or 208V Three Phase Power
**Out of a Tech School**

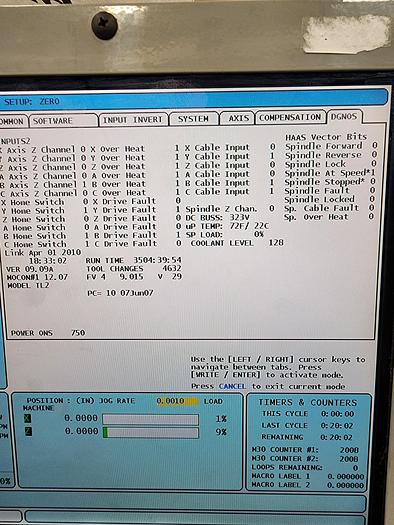

**Run Time (Power On) Hours 3,504**
Especificaciones
| Fabricante | Haas |
| Modelo | TL-2 |
| Año | 2008 |
| Condición | Usado |
| Número de Stock | 119850 |

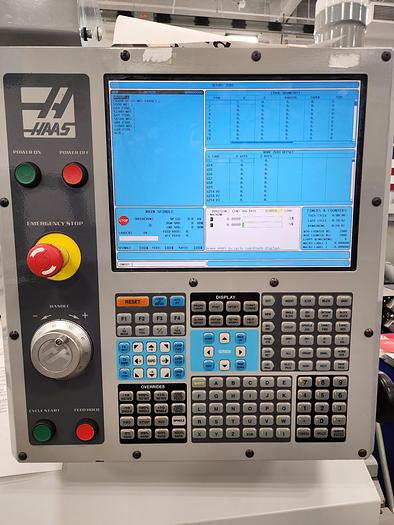

| Control | Haas CNC Control |
| Chuck Size | 10" 3 Jaw Chuck |
| Maximum Swing over Bed | 20" |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 48" |
| X-axis travel | 8" |
| Z-Axis Travel | 48" |
| Spindle Nose / Spindle Bore | A2-6" / 3.00" |
| Spindle Speeds | 1,800 RPM |
| Spindle Motor | 10 HP |
| Number of Turret Positions | 4 Station Indexable Turret |
| Rapid Traverse Rates X/Z | 450 IPM / 450 IPM |
| Machine Dimensions | 100" x 55" x 80" |
| Machine Weight | 5,000 lbs. |
