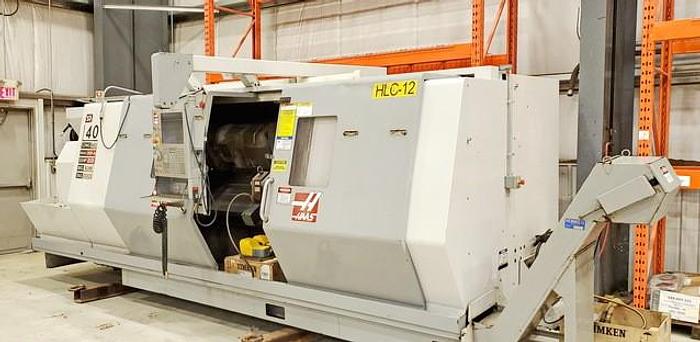

2007 Haas SL-40LB
Vendido
2007 Haas SL-40LB
Ubicación:Ontario, Canadá
Descripción

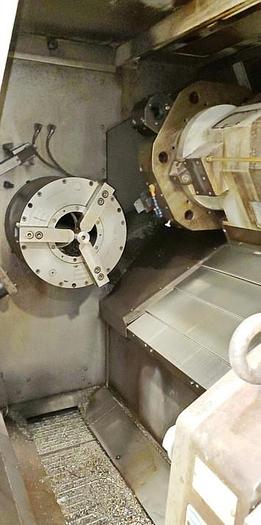

15" 3 Jaw Air Chuck
Big Bore Spindle with 6.5" Bar Capacity
Tool Presetter

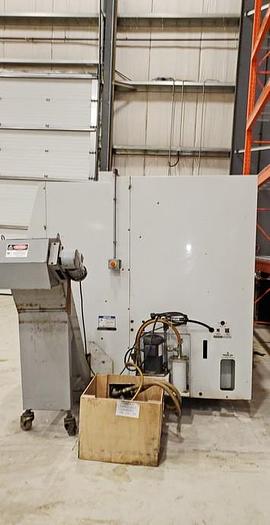

Chip Conveyor - Belt Style
Extra Performance Package with 55 HP Spindle Motor
Fully Programmable Tailstock
Hydraulic Steady Rest
Long Bed Design
Remote Jog Handle
High Intensity Lighting
2 Speed Geared Headstock
RS 232 Port Interface
Rigid Tapping
All Available Tool Blocks & Miscellaneous Chuck Jaws
Haas Manual
Especificaciones
| Fabricante | Haas |
| Modelo | SL-40LB |
| Año | 2007 |
| Condición | Usado |
| Número de Stock | 119134 |
| Control | Haas CNC Control |
| Maximum Swing | 40" |
| Maximum Swing Over Cross Slide | 25" |
| Maximum Cutting Diameter | 25.5" |
| Maximum Cutting Length | 80" |
| Maximum Distance Between Centers | 81" |
| Maximum Bar Capacity | 6.5" |
| X-Axis Travel | 17" |
| Z-Axis Travel | 80" |
| Spindle Nose / Spindle Bore | A2-11" / 7.08" |
| Spindle Speeds | 1,400 RPM |
| Spindle Motor | 55 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Body Travel / Tailstock Taper | 74" / MT #5 |
| Machine Dimensions | 195" x 102" x 89" |
| Machine Weight | 27,000 lbs. |
