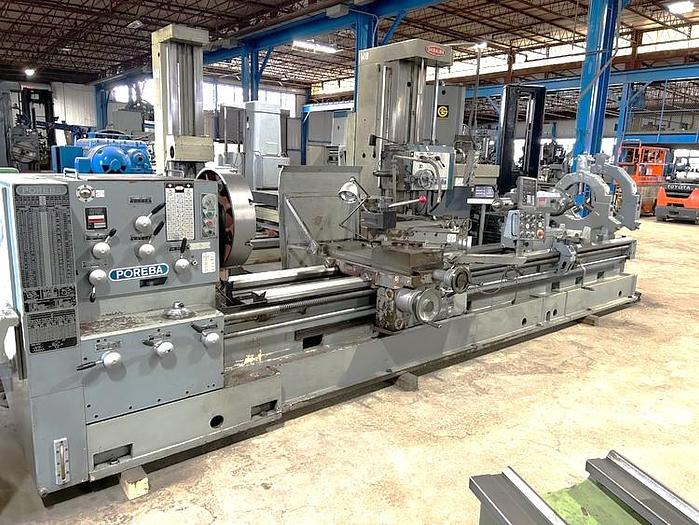

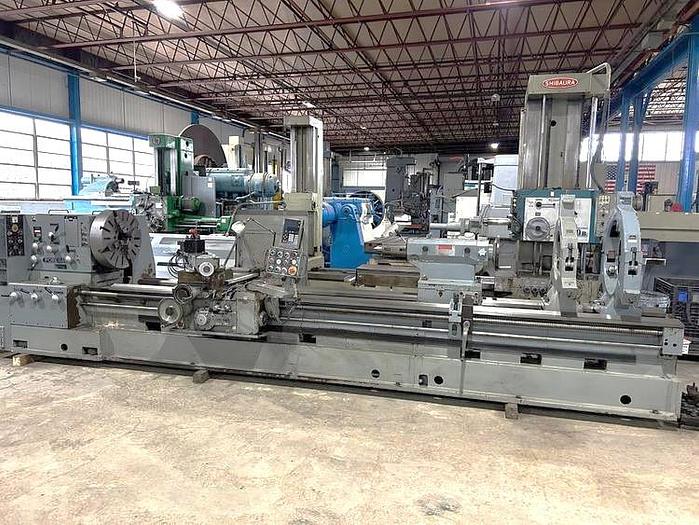

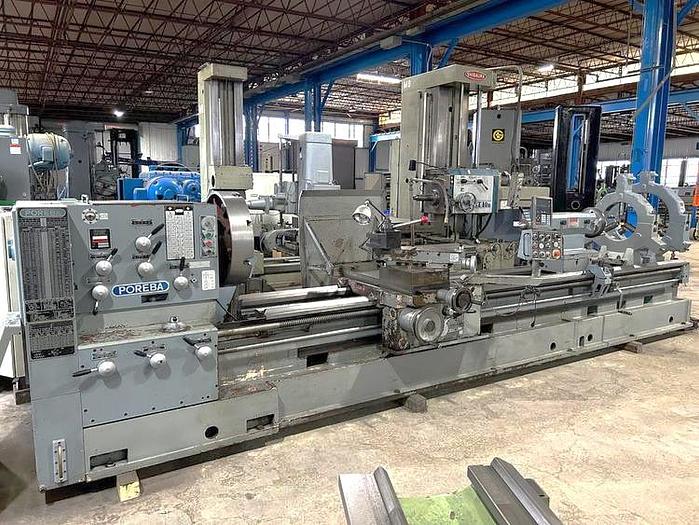

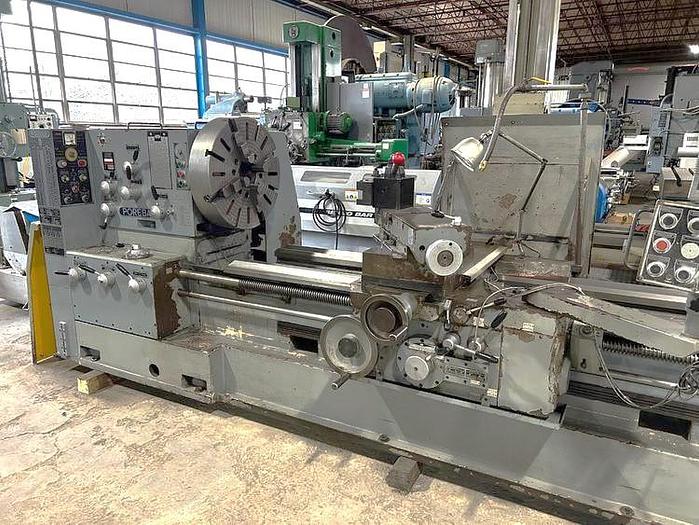

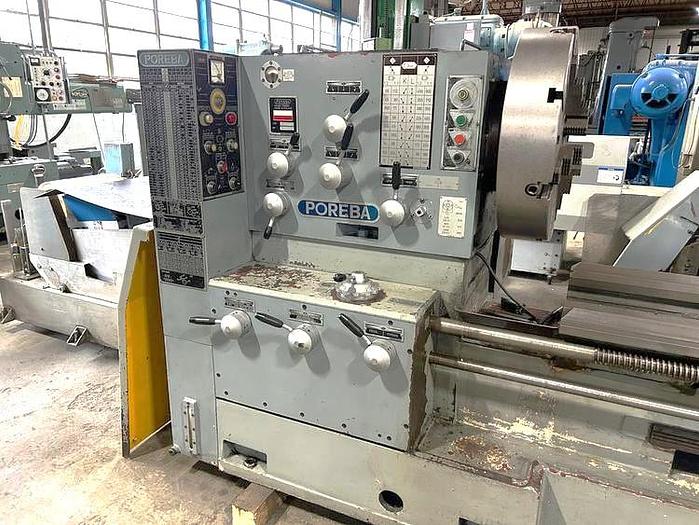

1996 Poreba TRP93/4M
Vendido
1996 Poreba TRP93/4M
$59.500 (USD)
Ubicación:Illinois
Descripción
Power Compound for Taper Turning
6 Way Power Rapid Traverse

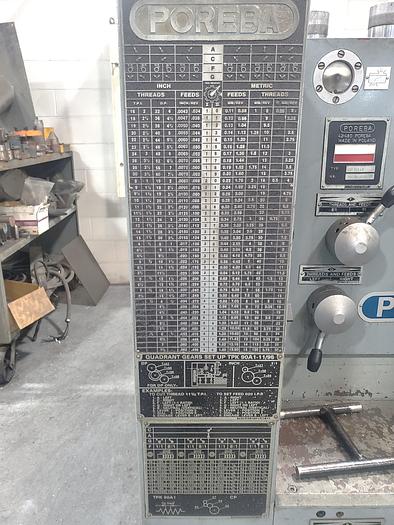

Inch / Metric Threading
26" 4 Jaw Chuck

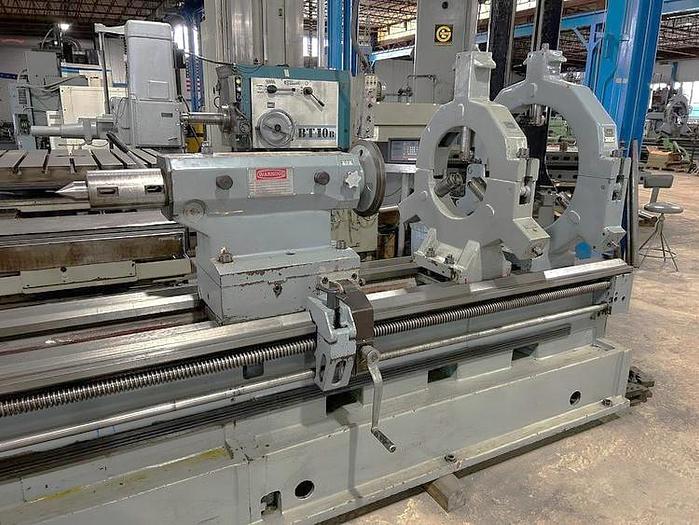

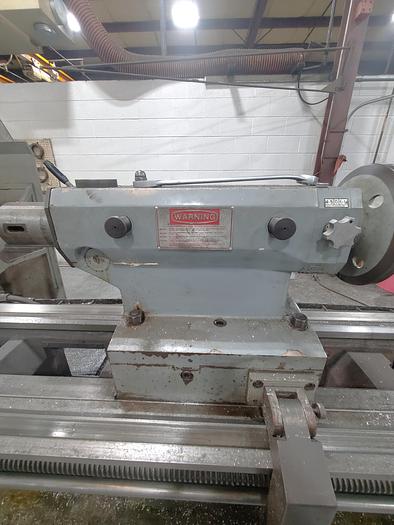

Tailstock - Heavy Duty 2 Speed
Quick Change Tool Post
(2) 3 Point Type Steady Rests with 15" and 23" Capacities

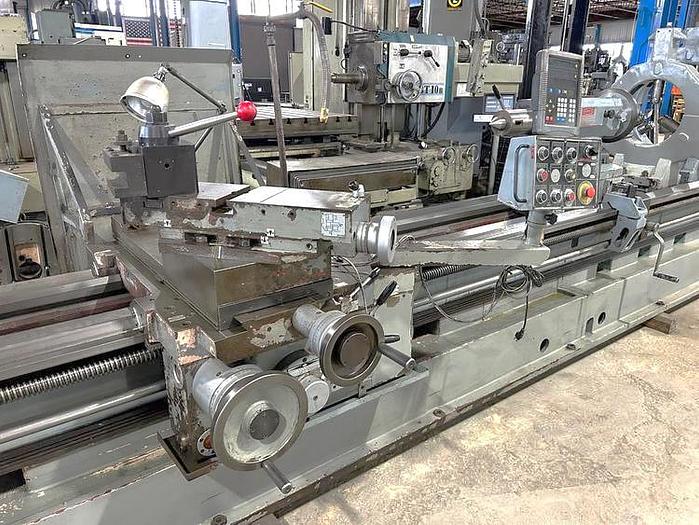

2 Axis Newall Model C80 Digital Readout
Pendant Control Panel
Coolant System
Solid Base Design
Hardways
Assorted Tool Holders

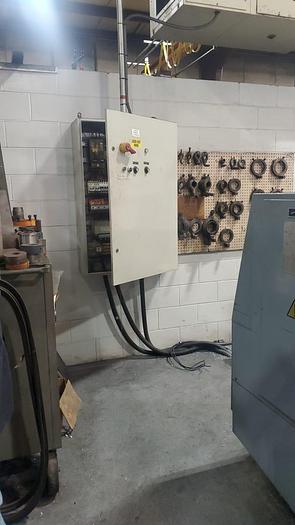

Wired 480V / 60 HZ Electrics
Especificaciones
| Fabricante | Poreba |
| Modelo | TRP93/4M |
| Año | 1996 |
| Condición | Usado |
| Número de Stock | 118984 |
| Control | Operator Pendant on Carriage |
| Chuck Sizes | 26" 4 Jaw Chuck |
| Maximum Swing over Bed | 36.64" |
| Maximum Swing Over Cross Slide | 25" |

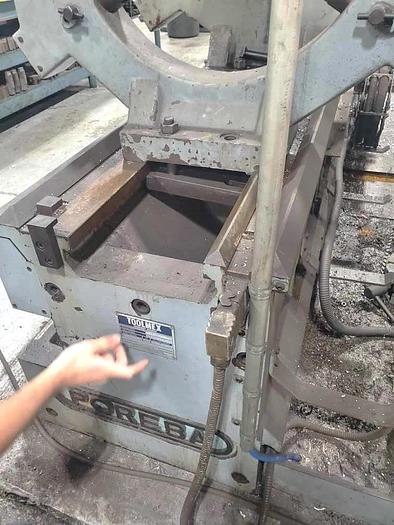

| Swing in Removable Gap | 47" |

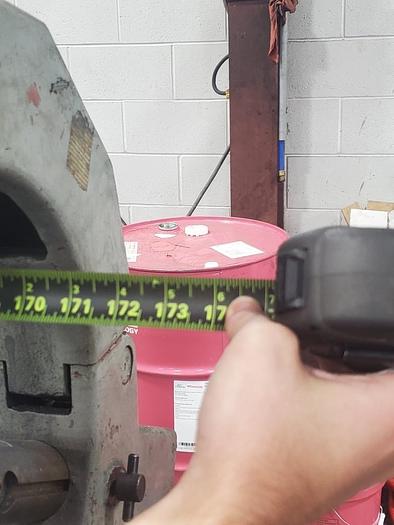

| Distance Between Centers | 157.6" |
| Spindle Nose / Spindle Bore | NA / 3.75" |
| Spindle Speeds | 9 to 900 RPM |
| Spindle Motor | 35 HP |
| Number of Tool Positions | Tool Post |
| Tailstock Quill Travel | 11.74" |
| Tailstock Quill Diameter | 5.12" |
| Machine Dimensions LxWxH | 264" x 69" x 70" |
| Machine Weight | 20,000 lbs. |
