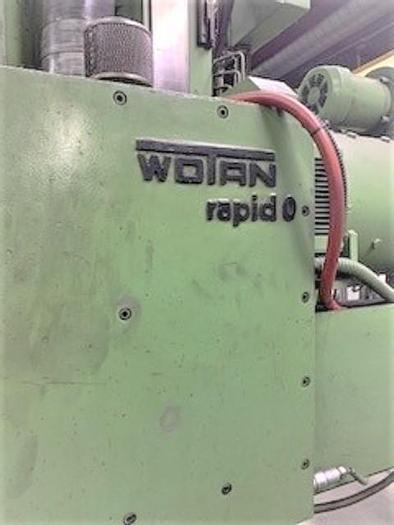

Wotan Rapid 0

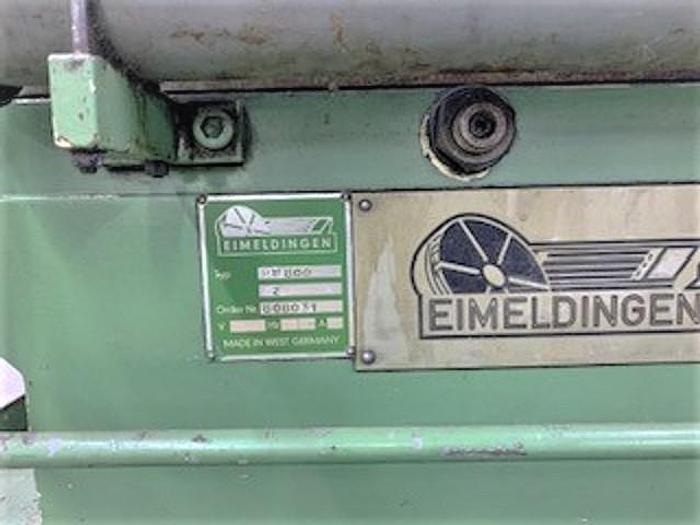

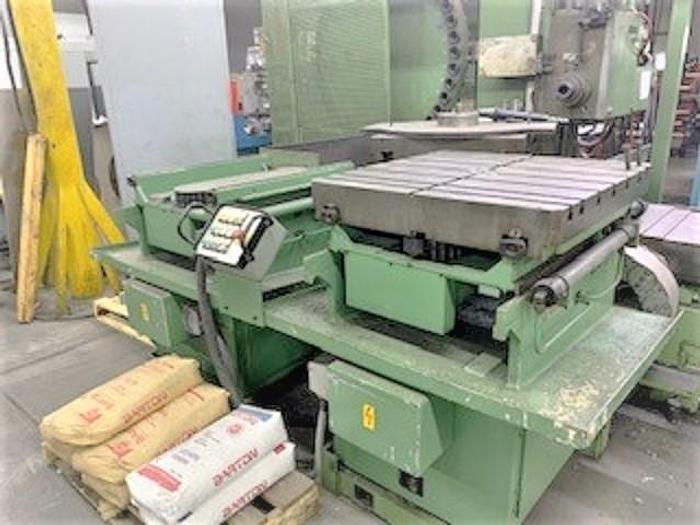

Eimeldingen 2 Pallet Changer

4 Axis Simultaneous Contouring

Built-in Rotary Table

40 Station Tool Changer

Way Covers

Tape Drive

All Available Manuals

Well taken care of, Great Candidate for a Control Retrofit with Great Metal

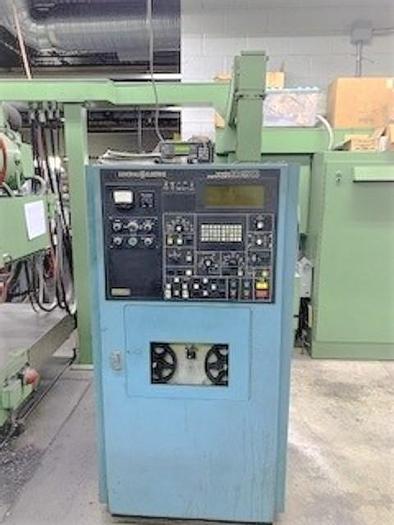

The Wotan Rapid 0 is a CNC horizontal boring mill engineered for precision and efficiency. It features a GE 1050 machine control system, providing reliable operation and ease of use. The machine is equipped with a 31.5"x31.5" table and includes two pallets to facilitate efficient handling of workpieces, each capable of supporting up to 2,500 lbs.

For extensive adaptability, the Wotan Rapid 0 offers a significant travel capacity with 40" X-axis, 50" Y-axis, and 32" Z-axis spans. Its rotary table indexing operates with a continuous full 4th axis, enhancing versatility in positioning. The spindle, measuring 4.33" in diameter, is powered by a robust 40 HP motor, delivering a range of spindle speeds up to 3,200 RPM in two speed ranges.

A 40-position tool changer tool magazine supports ample variety for complex operations, reducing downtime associated with manual tool adjustments. Weighing in at approximately 30,000 lbs, this used machine maintains robust construction for stable performance in demanding industrial environments.
