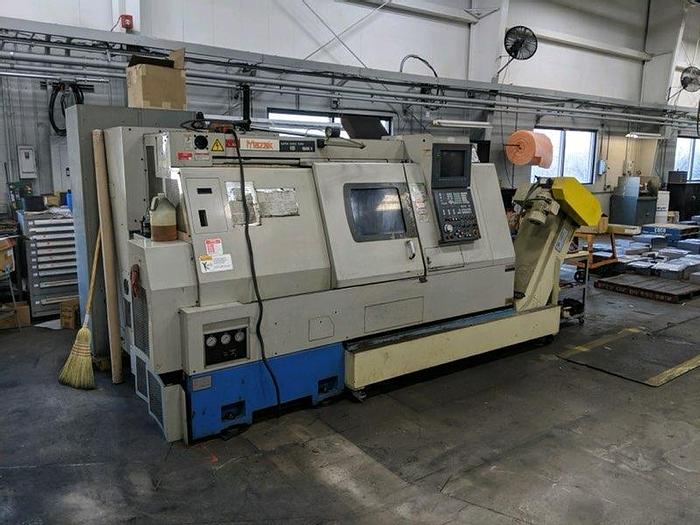

1995 Mazak SQT-15 Mark II
No longer available
1995 Mazak SQT-15 Mark II
Ohio
Description
Chip Conveyor
Automatic Tool Eye
Programmable Tailstock
10" 3 Jaw Hydraulic Chuck
Servo Driven Mark II Non Lift Turret
Multi-Tap Transformer
Complete Coolant System
All Available Manuals
Miscellaneous Static Tool Blocks
*This is a 2 Axis Machine Only
Specifications
| Manufacturer | Mazak |
| Model | SQT-15 Mark II |
| Year | 1995 |
| Condition | Used |
| Stock Number | 117544 |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing | 20.86" |
| Maximum Swing over Bed | 15.74" |
| Maximum Cutting Diameter | 11.75" |
| Maximum Machining Length | 20.78" |
| X-axis travel | 7.12" |
| Z-Axis Travel | 22.75" |
| Spindle Nose / Bore / Bar Capacity | A2-6 / 2.4" / 2" |
| Spindle Speeds | 35-5,000 RPM |
| Spindle Motor | 25/20 HP |
| Number of Turret Positions | 12 |
| Rapid Travers Rates | 1,180 IPM |
| Tailstock Quill Diameter / Center | 3.15" / #5 MT |
| Machine Dimensions | 122"x64"x81" |
| Machine Weight | 11,200 lbs |
| Machine Control | Mazatrol T-Plus |
