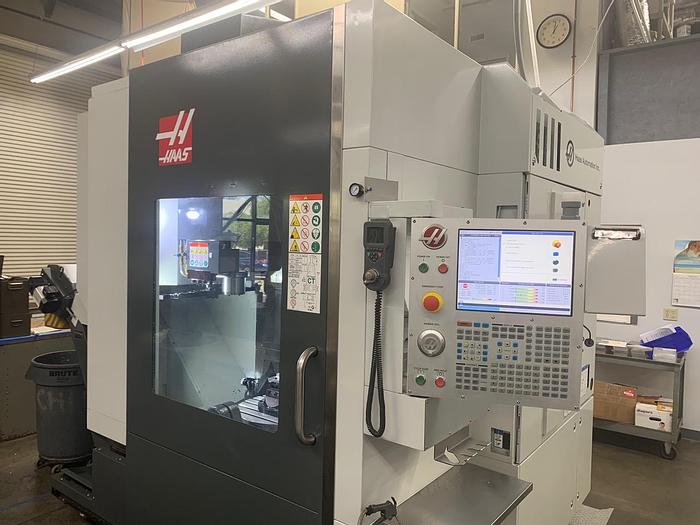

2018 Haas UMC-750
No longer available
2018 Haas UMC-750
$124,500 (USD)
California
Description
Haas Control
USB
1 GB Expanded Memory
High-Speed Machining
24.8"x19.69" Integrated 2-axis Trunnion Rotary Table
User Definable Macros
Coordinate Rotation and Scaling
Wireless Probing System
Color Remote Jog Handle
300 PSI Through Spindle Coolant
Through Tool Air Blast
Belt Chip Conveyor Machine
Sold "as-is, where-is" with no warranty
Specifications
| Manufacturer | Haas |
| Model | UMC-750 |
| Year | 2018 |
| Condition | Used |
| Stock Number | 117538 |
| Table Size | 24.8"x19.7" |
| Maximum Weight on Table | 660 LBS |
| X-Axis Travel | 30" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 20" |
| C-Axis Rotation | 1 Degree |
| B-Axis Tilt Movement | -35 Degrees to +110 Degrees |
| Spindle Speed | 12,000 RPM |
| Spindle Taper | CAT 40 |
| Spindle Motor | 30 HP |
| Tool Magazine Capacity | 40 ATC Side Mount |
| Spindle Nose to Table Top | 4" to 24" |
| Tool Change Time Chip to Chip | 3.6 Seconds |
| Rapid Travers Rates | 1,200 IPM |
| Maximum Feed Rate | 650 IPM |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 LBS |
| Machine Dimensions LxWxH | 162"x113"x120" |
| Machine Weight | 37,500 LBS |
