2012 Standard Modern F-20 30"x120" Big Bore
No longer available
2012 Standard Modern F-20 30"x120" Big Bore
$84,500 (USD)
Location:Dundee, FL
Description

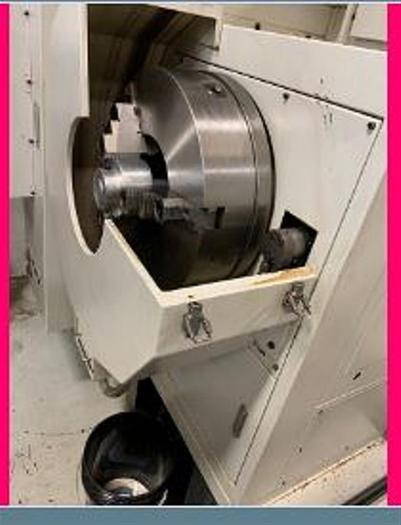

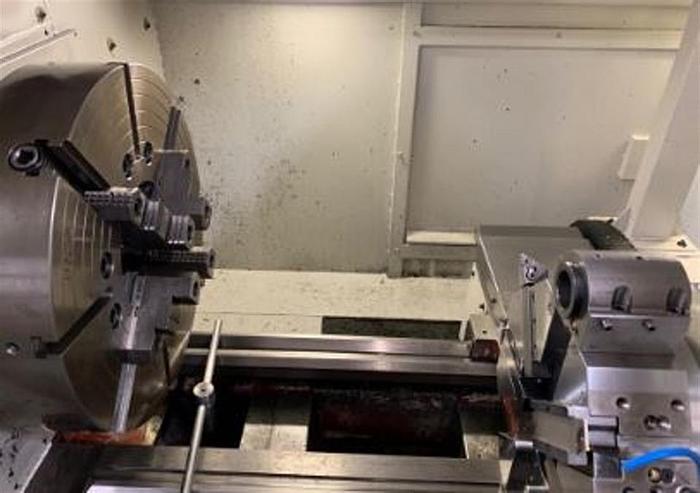

Fagor 8055 w/11" LCD Monitor CSA Approved Electrics Coolant System Gap Bed Rear Flange for D1-11 Camlock Chuck 24" 3-Jaw Chuck 24" 4-Jaw Rear Chuck Steady Rest Cross Slide Extended to allow cutting full diameter over cross slide Jog Handle Status Lights Chip Conveyor All available Manuals
Specifications
| Manufacturer | Standard Modern |
| Model | F-20 30"x120" Big Bore |
| Year | 2012 |
| Condition | Used |
| Stock Number | 115966 |

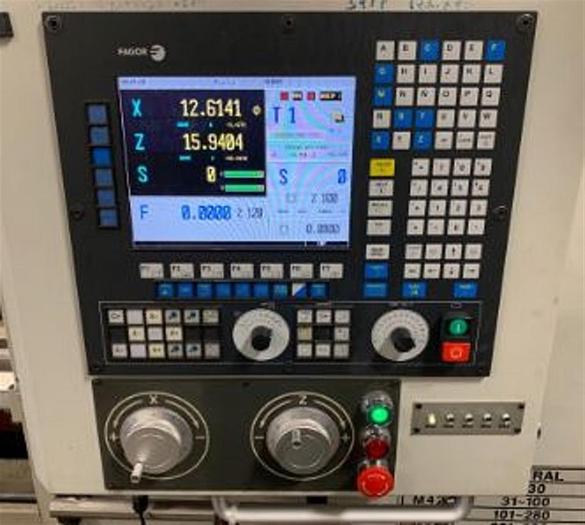

| Control | Fagor 8055 |
| Chuck Size | 24" 3-Jaw |
| Maximum Swing over Bed | 30" |
| Maximum Swing Over Cross Slide | 15.74" |
| Distance Between Centers | 120" |
| X-axis travel | 13.75" |
| Z-Axis Travel | 120" |
| Spindle Nose / Bore / Bar Capacity | D1-11 / 9.05" / NA |
| Spindle Speed | 4- Ranges 40-800 rpm |
| Spindle Motor | 25 hp |

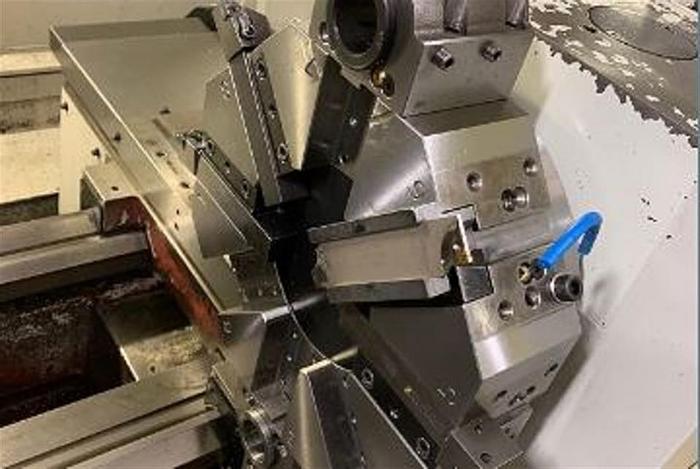

| Number of Turret Positions | 8 |
| Rapid Traverse Rates X/Z | 197 ipm / 394 ipm |
| Tailstock Quill Diameter / Center | #5MT / 3.14" |
| Tailstock Body Travel / Quill Travel | NA / 9" |
| Machine Dimensions LxWxH | 240"x94"x94" |
| Machine Weight | 13,227 lbs |
