2016 DMG-Mori EcoTurn 450 V1
No longer available
2016 DMG-Mori EcoTurn 450 V1
$55,000 (USD)
Location:Oklahoma
Description

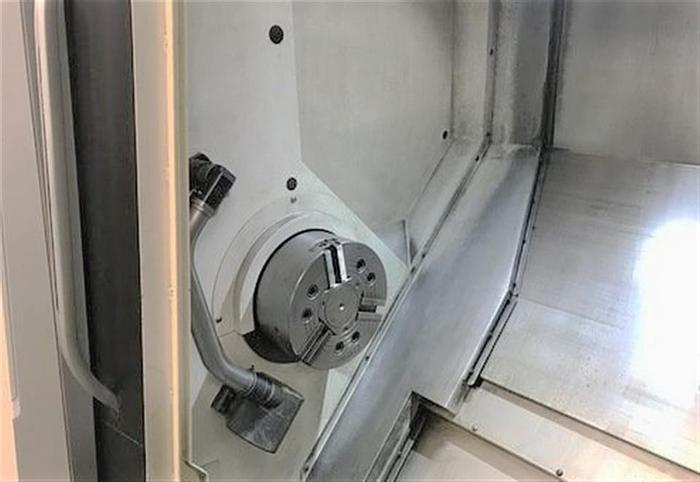

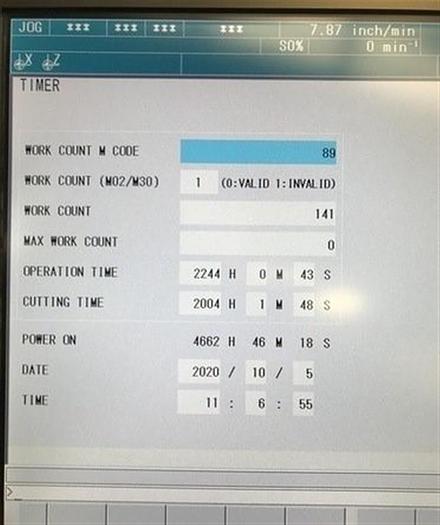

10" 3 Jaw Hydraulic Chuck Chip Conveyor Tailstock Tool Presetter Mori Factory High Pressure Coolant #JEC0046 USB Port Interface Ethernet Interface Slimline Type Control Slant Bed Design Linear Rail Design Belt Driven Design Complete Coolant System Tank & Pump Comes with Original Tooling Package All Available Manuals Operation Hours 2,244 Cutting Hours 2,004
Specifications
| Manufacturer | DMG-Mori |
| Model | EcoTurn 450 V1 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 116679 |
| Quantity | 1 |

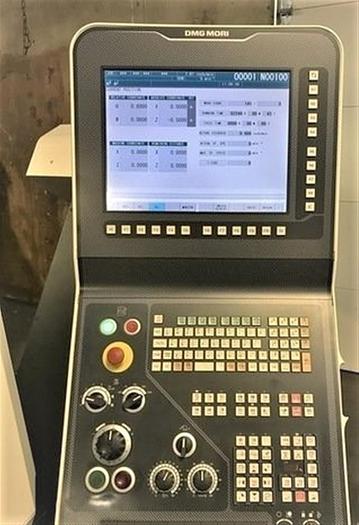

| Control | Mitsubishi M730BM |
| Chuck Size | 10" Hydraulic Chuck |
| Maximum Swing | 25.61" |
| Maximum Turning Diameter | 15.7" |
| Maximum Turning Length | 23.64" |
| Maximum Bar Capacity | 2.6" |
| X-Axis Travel | 10.54" |
| Z-Axis Travel | 23.64" |
| Spindle Nose / Spindle Bore | n/a / 3.15" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 23.6 HP |

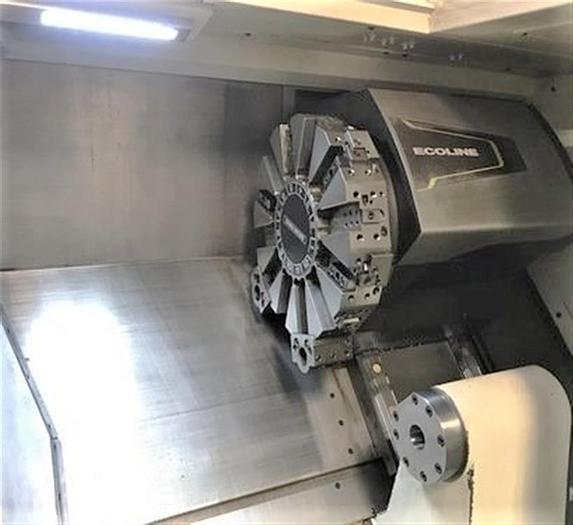

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Body Travel / Taper | 19.7" / MT #5 |
| Machine Dimensions | 118" x 98" x 82" |
| Machine Weight | 12,221 lbs. |
