2015 DMG-Mori NLX2500/700SMC
No longer available
2015 DMG-Mori NLX2500/700SMC
$139,500 (USD)
Location:Texas
Description
Subspindle Full C Axis Spindle Rotation Live Milling/Drilling Capability

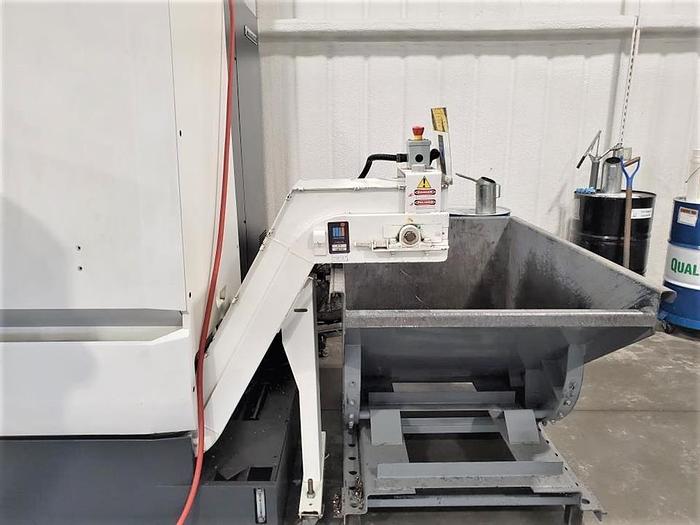

10" & 8" 3 Jaw Hydraulic Chucks for Main & Subspindle Chip Conveyor Parts Catcher
Tool Presetter RS 232 Port Interface Coolant System with Tank & Pump Approximately 5000 Cutting Hours

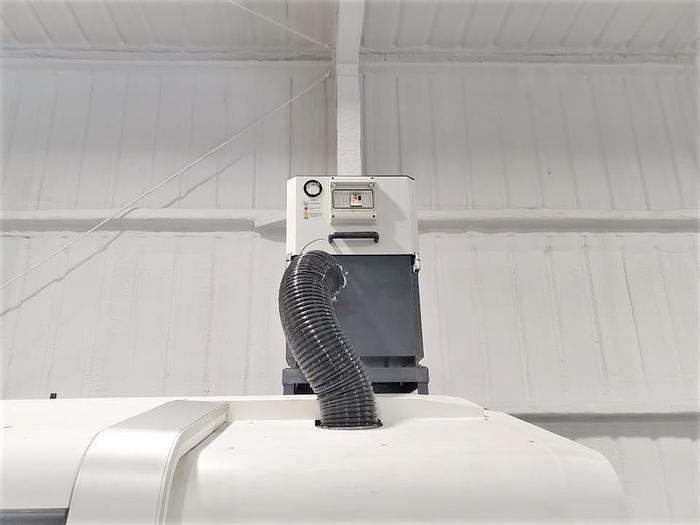

*Mist Collector is NOT included
*No Live Tool Holders are included
Specifications
| Manufacturer | DMG-Mori |
| Model | NLX2500/700SMC |
| Year | 2015 |
| Condition | Used |
| Stock Number | 117210 |

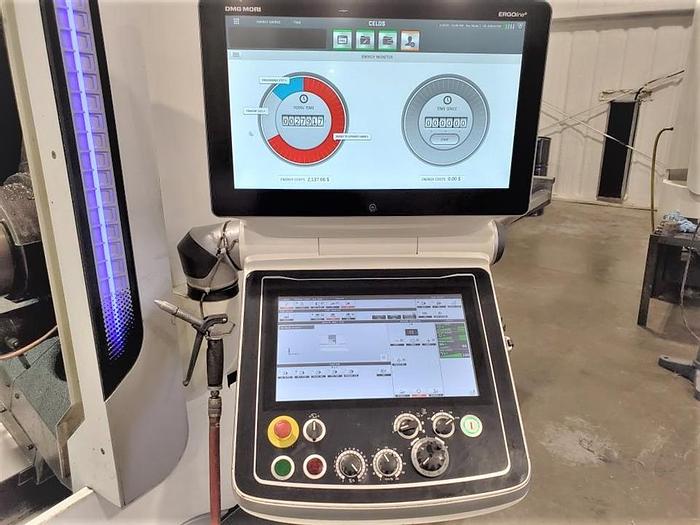

| Machine Control | Mitsubishi M730BM |
| Chuck Sizes Main / Subspindle | 10" / 8" Hydraulic 3-Jaw |
| Maximum Turning Diameter | 14.4" |
| Maximum Cutting Length | 27.7" |
| X-Axis Travel | 10.2" |
| Z-Axis Travel | 31.3" |
| C-Axis Rotation | .001 Degrees |
| Main Spindle Bore / Subspindle Bore | 3.5" / 2.8" |
| Main & Subspindle Speeds | 4,000 RPM / 5,000 RPM |
| Spindle Motor / Sub Spindle Motor | 35 HP / 15 HP |
| Rotary Tool Speed / Rotary Motor | 10,000 rpm / 7 hp |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 1181 IPM |
| Machine Dimensions LxWxH | 157"x78"x75" |
| Machine Weight | 12,100 lbs |
