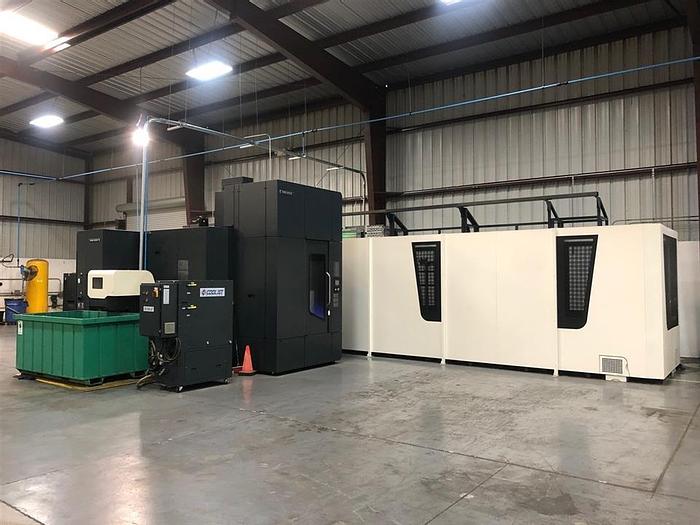

2016 DMG-Mori NHX-5000/40 w/24 Pallet System
2016 DMG-Mori NHX-5000/40 w/24 Pallet System
$549,500 (USD)
California
Description

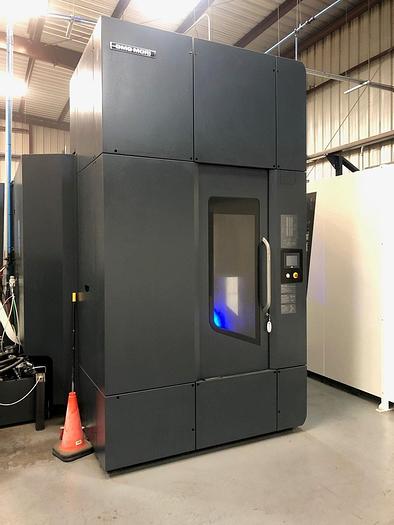

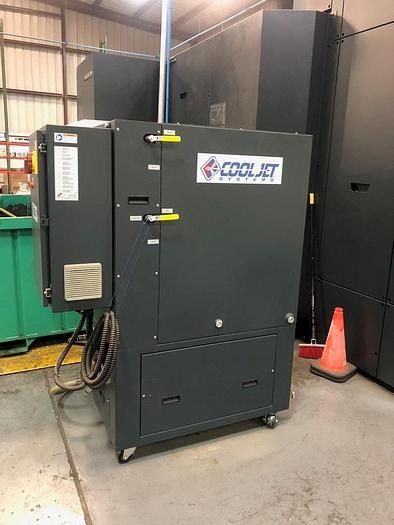

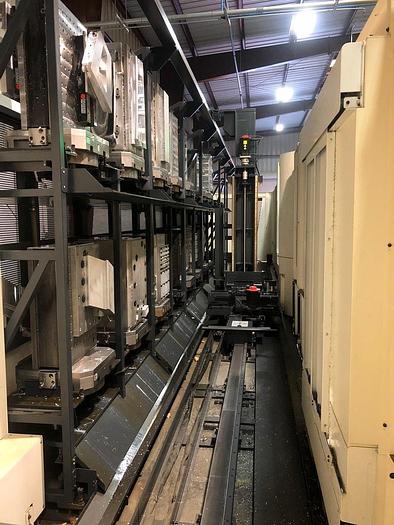

M730UM w/Celos CNC Control 180 Position Tool Changer Full 4th Axis Rotary Table Thru Spindle Coolant 1000 PSI Spindle Chilling Unit (Water-Glycol Chiller) NHX-5000 LPP (1) + Set-Up Station (1) + Racks 24 NHX-5000 Reduction of Std. Pallet - 1-Pallet High-Speed & High Precision Function II (A1 Contour Control) Text Engraving Function Add'l Workpiece Coordinate Systems 48 Sets Tilted Working Plane Command Polar Coordinate Command Tool Center Point Control Workpiece Position Compen. for Rotary Axis 3-D Coordinate Conversion MC2+ WSS2 I/F Parts ATS 1000 PSI HP Coolant (70-36VM850) w/ Mist Collector Inspection Plus Software Pallet Edge Location In-Machine Measuring System (Renishaw OMP60) In-Machine Measuring System (Table) Touch Sensor (METROL) 4-Layer Signal Lights 24-Pallet System w/ 14 Pallets Comes w/Tombstones & Toolholders Machined Aluminum only All Available Manuals
Specifications
| Manufacturer | DMG-Mori |
| Model | NHX-5000/40 w/24 Pallet System |
| Year | 2016 |
| Condition | Used |
| Stock Number | 117439 |
| Quantity | 1 |

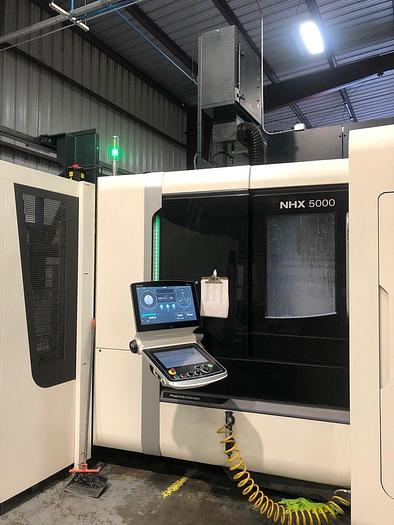

| Control | Mori-Seiki/Fanuc M730UM |
| Pallet Size / Number of Pallets | 19.7"x19.7" / 14 pallet included |
| Number of Pallets Capable | 24 Pallet Maximum |
| Maximum Table Load | 1,100 lbs. |
| Pallet Indexing | .0001 Full 4th Axis Rotary |
| X-Axis Travel | 28.7" |
| Y-Axis Travel | 28.7" |
| Z-Axis Travel | 28.7" |
| Maximum Workpiece Diameter / Height | 31.4" / 39" |
| Distance Spindle Center to Table Top | 3.1" - 31.9" |

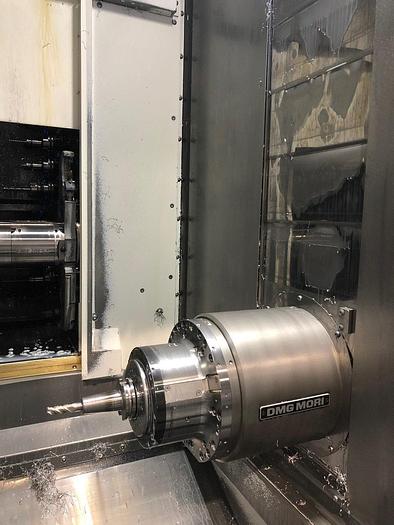

| Spindle Taper | CAT #40 |
| Spindle Speed | 15,000 RPM |
| Spindle Motor | 40 HP |
| Number of Tool Positions | 180 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 6.6" / 21.6" / 26.4 lbs. |
| Rapid Traverse Rates | 2362 IPM |
| Machine Dimensions | not available |
| Machine Weight | 24,420 lbs. (machine only) |
