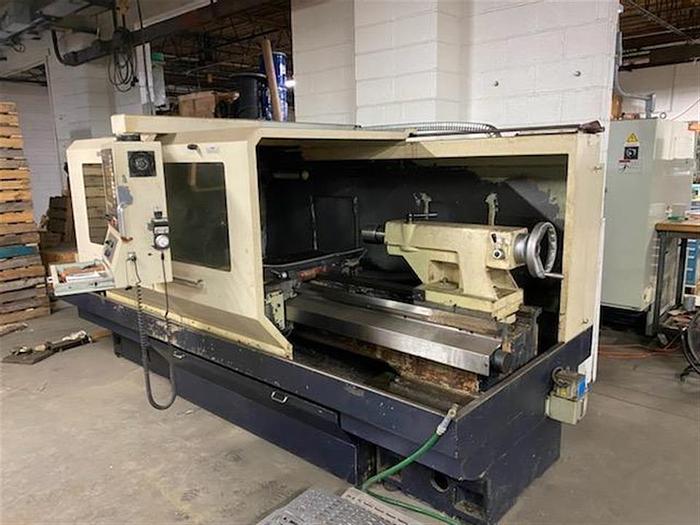

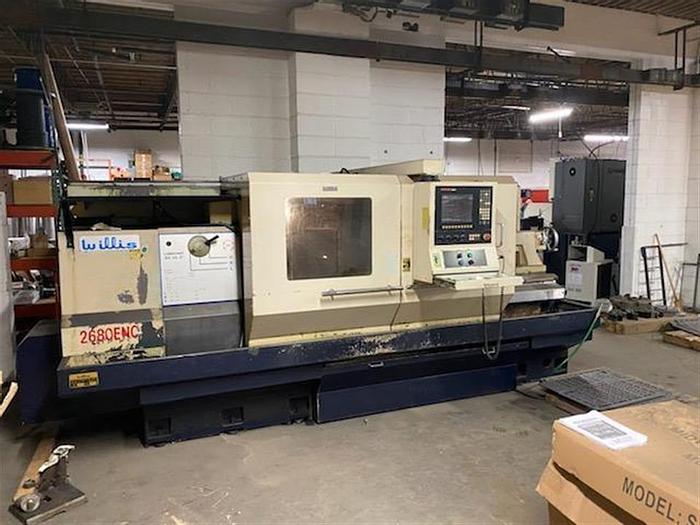

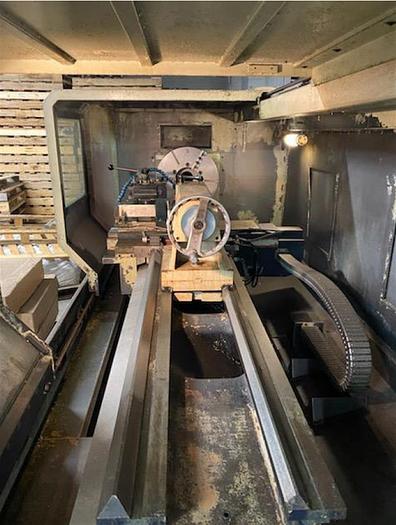

2007 Willis 2680 ENC CNC Flatbed Lathe
No longer available
2007 Willis 2680 ENC CNC Flatbed Lathe
$29,500 (USD)
Location:Ohio
Description

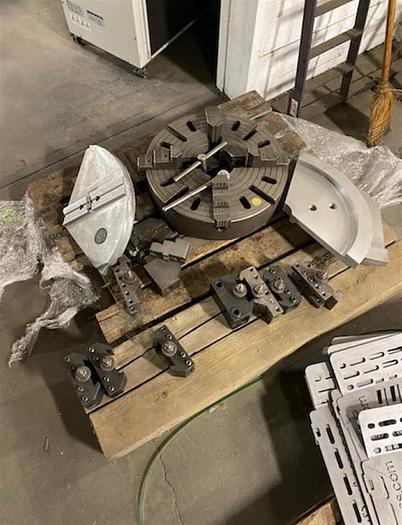

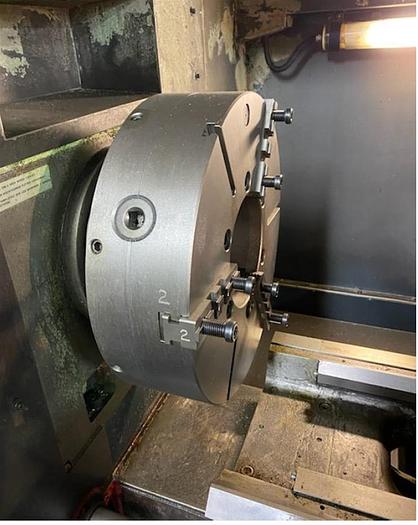

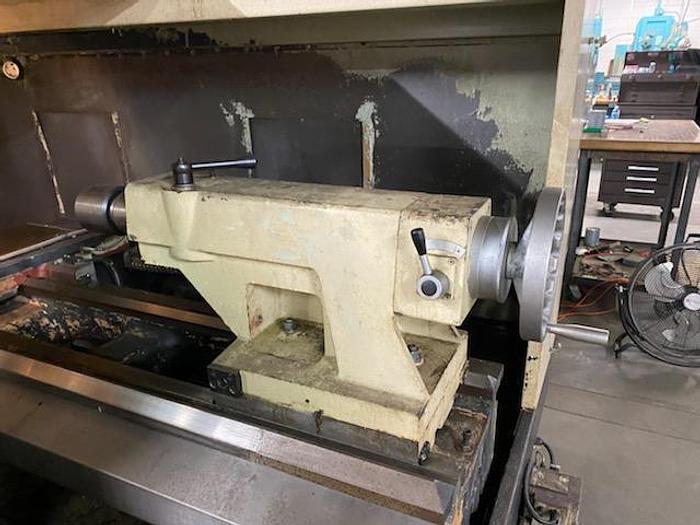

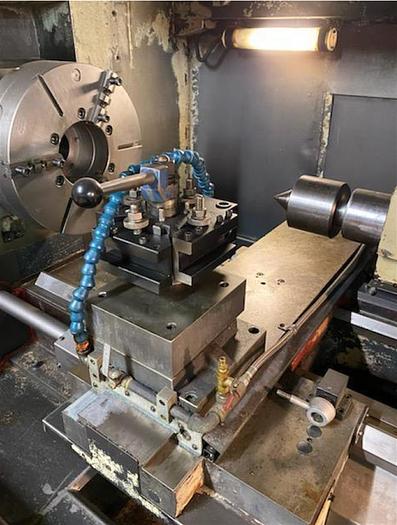

20" 3-Jaw Main Chuck 20" 4-jaw Chuck Rear Chuck Adaptor for Double Chucking Tailstock 4 Position Tool Post
Remote Jog Handle Full Length Rear Splash Guard RS-232 Port Interface Coolant System All Available Manuals
Specifications
| Manufacturer | Willis |
| Model | 2680 ENC CNC Flatbed Lathe |
| Year | 2007 |
| Condition | Used |
| Stock Number | 115440 |
| Control | Anilam 4200T |
| Chuck Size | 24" 3 Jaw Chuck |
| Maximum Swing | 26" |
| Maximum Swing Over Cross Slide | 18" |
| Distance Between Centers | 80" |
| Maximum Turning Length | 71" |
| Spindle Nose / Spindle Bore | A2-15" / 4" |
| Spindle Speeds | 10 - 1,400 RPM |
| Spindle Motor | 30 HP |
| Turret Type | 4 Station Tool Post |
| Rapid Traverse Rates | 200 IPM |
| Tailstock Quill Diameter / Center | 6.5" / MT #6 |
| Machine Dimensions | 174" x 90" x 77" |
| Machine Weight | 10,600 lbs. |
