2005 Wasino G07-F
No longer available
2005 Wasino G07-F
$16,500 (USD)
Location:Ohio
Description

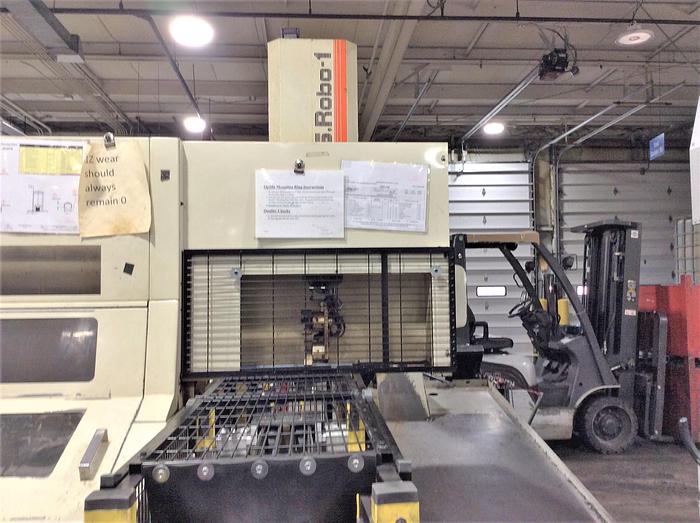

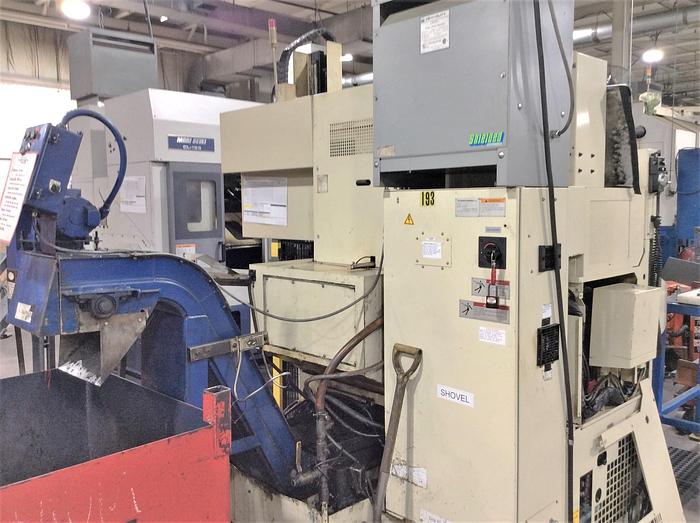

S Robo-1 Automated Loading Robot Gang Style Tool Lathe Part Capacity of 4.72" diam x 4.72" length 8" 3 Jaw Hydraulic Chuck Rigid Tapping Spindle Orientation Rear Discharge Chip Conveyor Coolant Tank with Pump 3.5" Floppy Disk Interface RS 232 Port Interface All Available Manuals
Specifications
| Manufacturer | Wasino |
| Model | G07-F |
| Year | 2005 |
| Condition | Used |
| Stock Number | 117412 |
| Quantity | 1 |
| Control | Fanuc 21i-TB |
| Maximum Swing over Bed | 15.75" |
| Maximum Bar Capacity | 2" |
| X-Axis Travel | 18.875" |
| Z-Axis Travel | 11.219" |
| Spindle Nose / Spindle Bore | A2-6" / 2.5" |
| Spindle Speed | 4,000 RPM |
| Spindle Motor | 10 HP |
| Tooling Type | Gang Slide |
| Turning Tool Size | .75" |
| Boring Bar Diameter | 1.0" |
| Rapid Traverse Rates X/Z | 470 IPM / 787 IPM |
| Machine Dimensions | 94" x 72" x 98" |
| Machine Weight | 7,350 lbs. |
