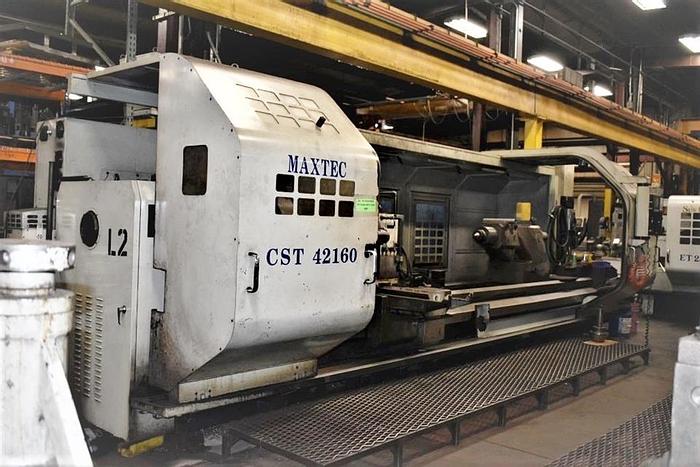

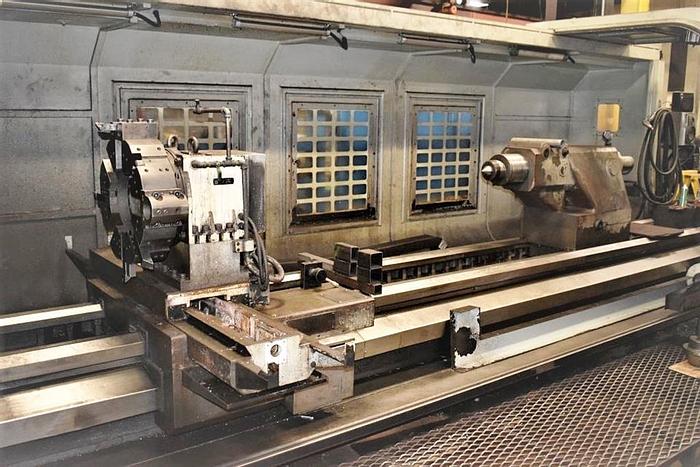

2006 Sunfirm CST-42160
No longer available
2006 Sunfirm CST-42160
$64,500 (USD)
Location:Dundee, FL
Description
31" 4-Jaw Manual Chuck 10" Spindle Bore Manual Tailstock Chip Conveyor 8 Station Turret AC Servo Motor X axis 4 HP AC Servo Motor Z axis 9.4 HP Work Light Coolant System Spindle Chiller Unit 7" Color LCD Monitor **Needs a new X-axis ballscrew** roughly $6k
Specifications
| Manufacturer | Sunfirm |
| Model | CST-42160 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 115366 |
| Control | Fanuc 21i |
| Chuck Size | 31" 4-Jaw Manual |
| Maximum Swing over Bed | 42" |
| Maximum Swing Over Cross Slide | 27" |
| Maximum Swing over Gap | 55" |
| Width of Gap | 22" |
| X-Axis Travel | 26" |
| Z-Axis Travel | 160" |
| Maximum Cutting Length | 160" |
| Spindle Nose / Bore / Bar Capacity | A2-20 / 10" / 10" |
| Spindle Speed | 1-350 rpm |
| Spindle Motor | 35/30 hp |
| Number of Turret Positions | 8 |
| Rapid Traverse Rates X/Z | 393 ipm / 315 ipm |
| Tailstock Quill Diameter / Center | 6" / #6MT |
