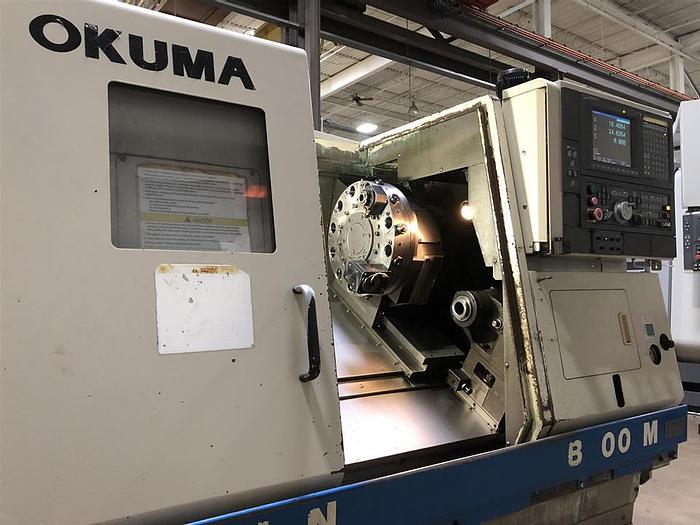

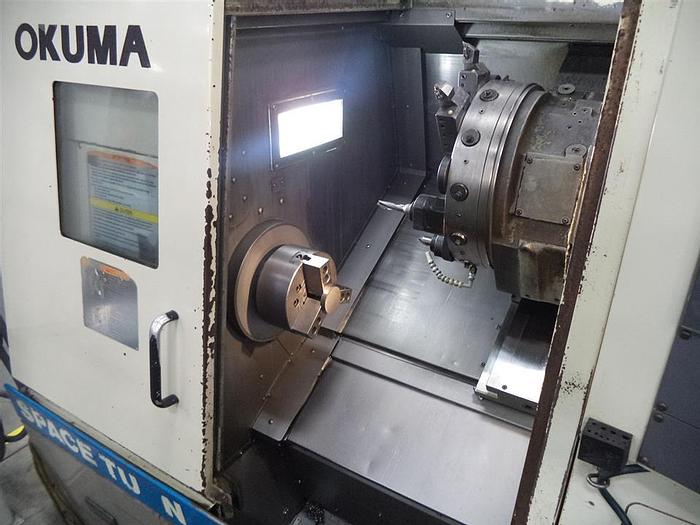

1998 Okuma LB-300M Big Bore
No longer available
1998 Okuma LB-300M Big Bore
$37,500 (USD)
Location:Dundee, FL
Description
Full C Axis Spindle Rotation Live Milling / Drilling Capability Programmable Tailstock Chip Conveyor VDI Turret Coolant Tank with Pump RS 232 Port Interface Foot Pedal Leveling Pads All Available Tooling All Available Manuals
Specifications
| Manufacturer | Okuma |
| Model | LB-300M Big Bore |
| Year | 1998 |
| Condition | Used |
| Stock Number | 116605 |
| Quantity | 1 |

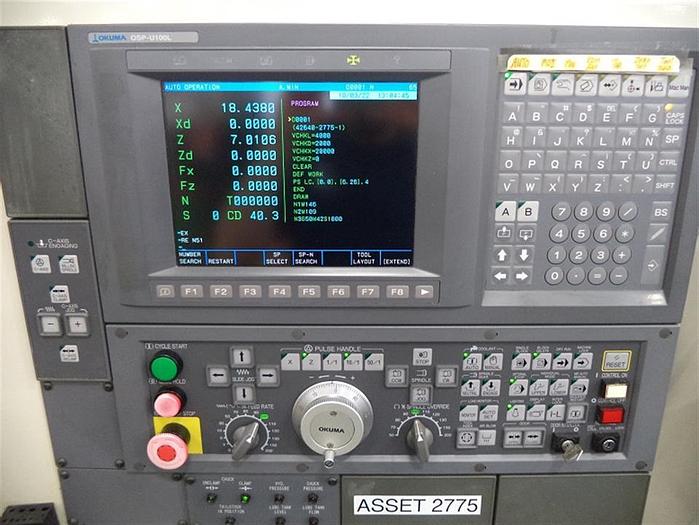

| Control | OSP-U100L |
| Chuck Size | 10" Hydraulic |
| Maximum Swing over Bed | 20.86" |
| Maximum Cutting Diameter | 14.57" |
| Maximum Cutting Length | 19.69" |
| Maximum Bar Capacity | 2.75" |
| X-Axis Travel | 10.24" |
| Z-Axis Travel | 22.24" |
| C-Axis Rotation | .001 Degree |
| Spindle Bore | 3.15" |
| Spindle Speed | 4,500 RPM |
| Spindle Motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 4,500 RPM / 10 HP |

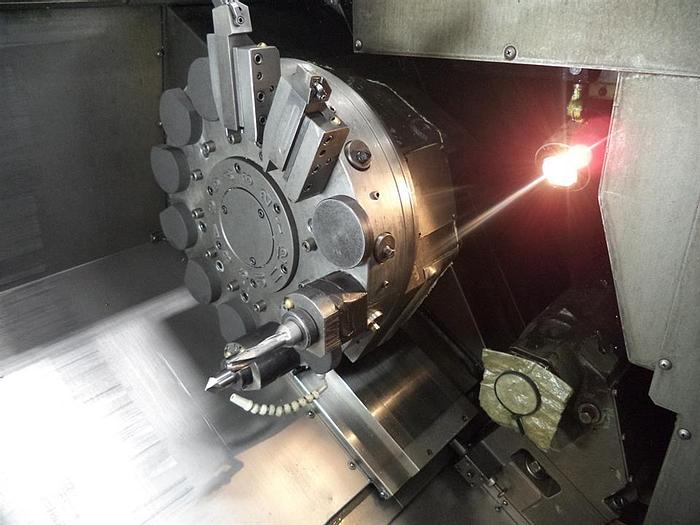

| Number of Turret Positions | 12 Position Turret |
| Tailstock Quill Diameter / Center | 3.54" / #5 MT |
| Machine Dimensions | 105" x 73" x 72" |
| Machine Weight | 9,700 lbs. |
