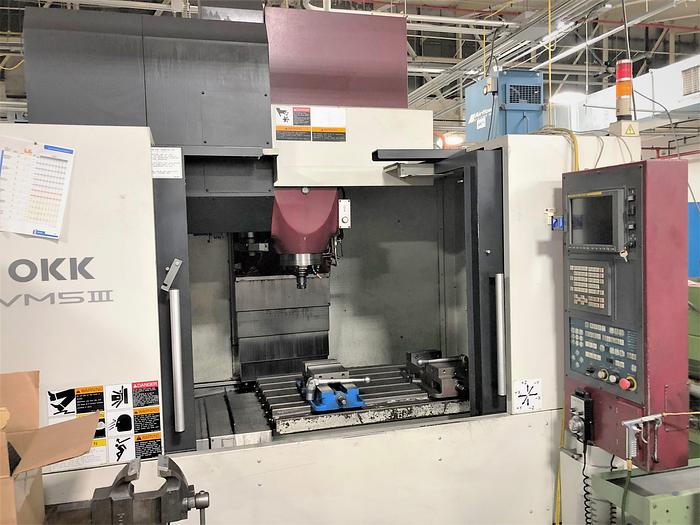

2001 OKK VM5III
No longer available
2001 OKK VM5III
$32,500 (USD)
Location:New Jersey
Description
CAT #50 Option 10,000 RPM Spindle 20 Station Side Mounted Tool Changer
2 GB Hard Drive
480K Program Memory Remote Jog Handle Chip Auger Style Conveyor

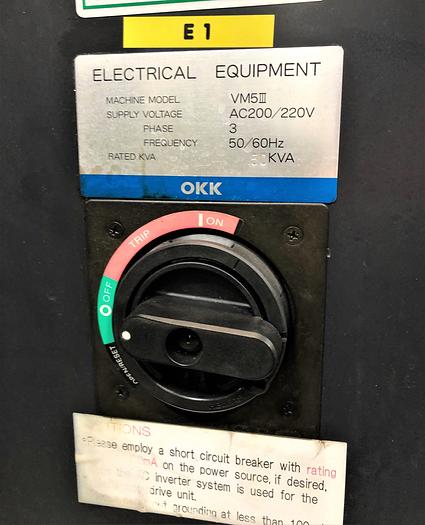

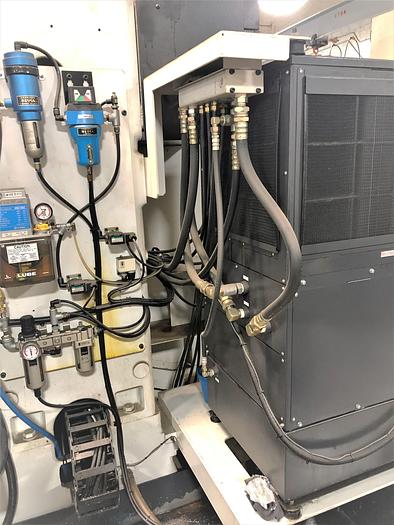

Coolant Chiller Unit 3 Color Machine Status Condition Lights PCMCIA Interface RS 232 Port Interface Coolant System with Tank & Pump Wired 200/220V Electrics
Made in Japan

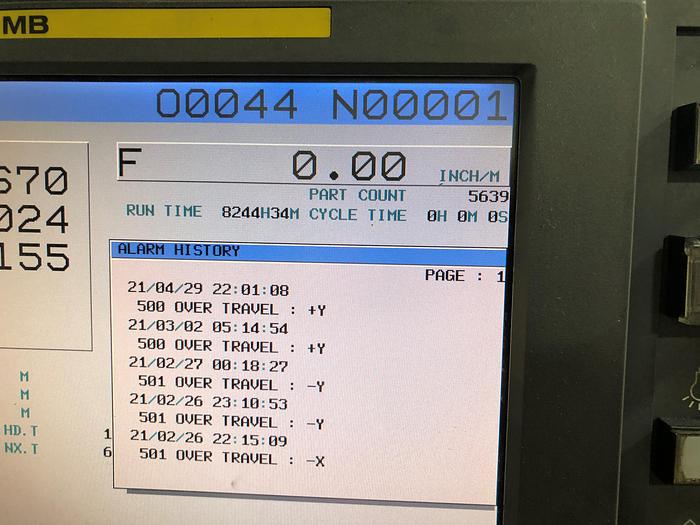

ONLY 8,244 Run Hours
Specifications
| Manufacturer | OKK |
| Model | VM5III |
| Year | 2001 |
| Condition | Used |
| Stock Number | 117512 |
| Quantity | 1 |

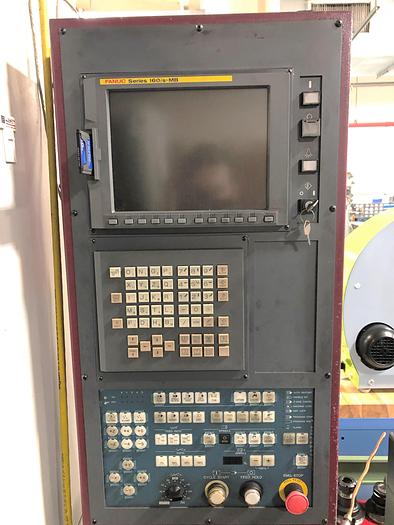

| Control | Fanuc 160iSMB |

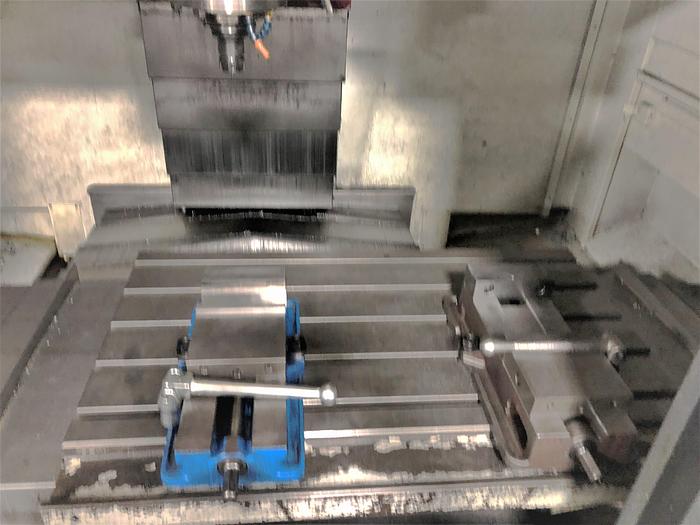

| Table size | 41.34" x 22.05" |
| Maximum Weight on Table | 1,764 lbs. |
| X-Axis Travel | 40.2" |
| Y-Axis Travel | 20.1" |
| Z-Axis Travel | 20.1" |
| Spindle Taper | CAT #50 |
| Spindle Speeds | 25 - 10,000 RPM |
| Spindle Motor 30 Minutes/Continuous | 20 HP / 15 HP |
| Spindle Torque | 258 ft./lbs. |

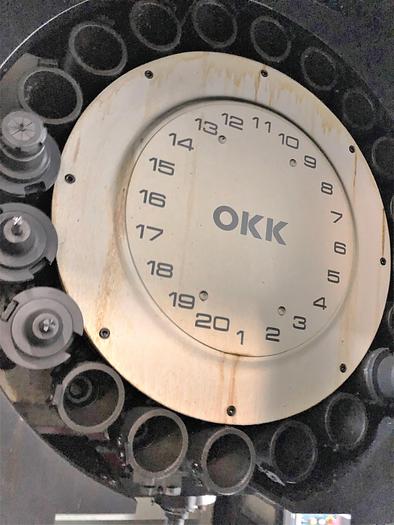

| Number of Tool Positions | 20 Station Side Mounted ATC |
| Rapid Traverse Rates X, Y / Z | 1181 IPM / 787 IPM |
| Cutting Feedrates | 394 IPM |
| Machine Dimensions | 120" x 98" x 109" |
| Machine Weight | 16,500 lbs. |
