2003 Nakamura Tome WTS-150
2003 Nakamura Tome WTS-150
$119,500 (USD)
Location:New Jersey
or
Call (863) 439-6066
Description

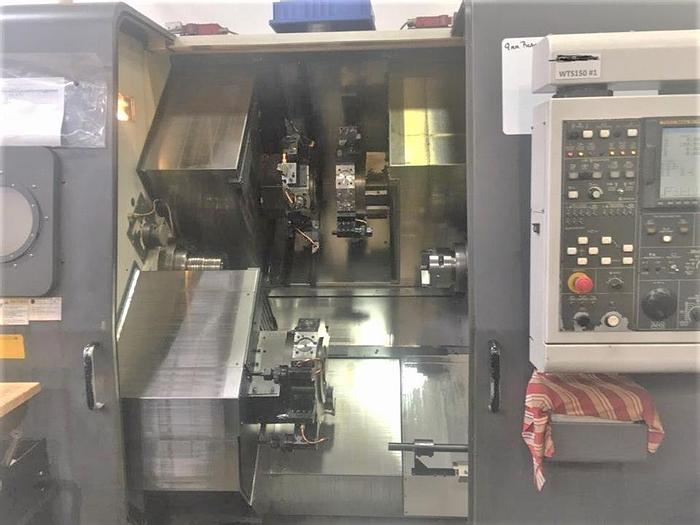

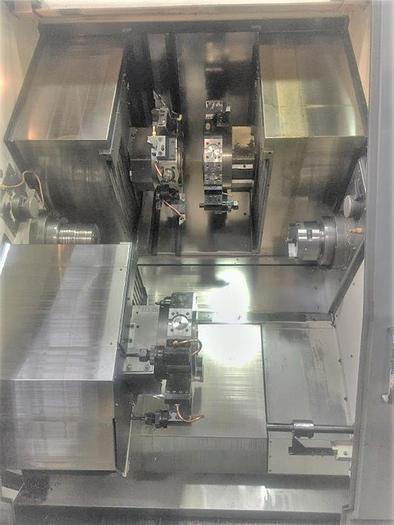

(2) 12 Positions Upper Turrets w/ Y-Axis Both (1) Lower Turret with 12 Positions - Live Tools Twin Spindle Design Full C Axis on Both Spindles Live Milling/Drilling Capability
Subspindle

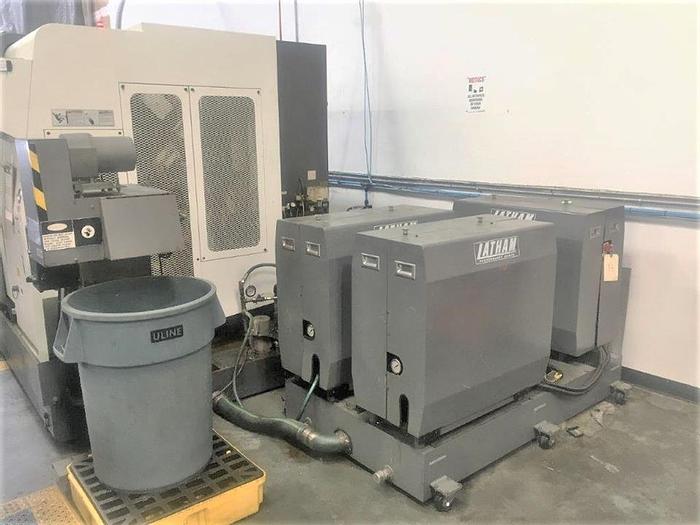

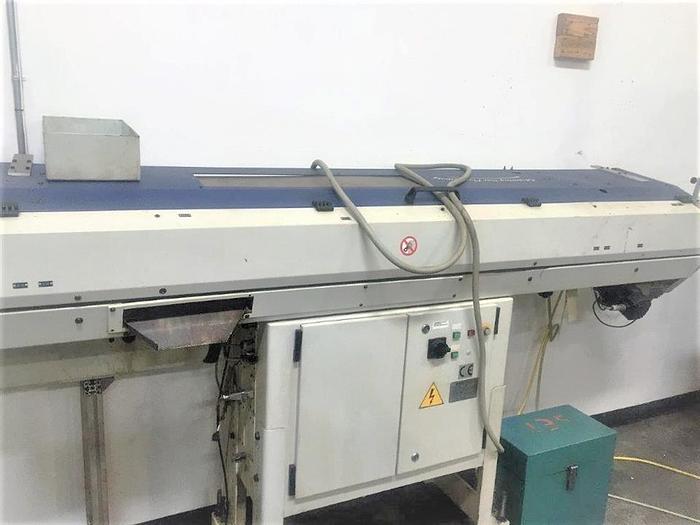

Collet Chuck on Main Spindle 6" 3-Jaw Hydraulic Chuck on Sub Spindle IEMCA Boss 545/21 Magazine Barfeeder Parts Catcher Chip Conveyor Latham High Pressure Coolant System - 3 Pump System 11 Axis Capability All Available Manuals Nice Tooling Package
Specifications
| Manufacturer | Nakamura Tome |
| Model | WTS-150 |
| Year | 2003 |
| Condition | Used |
| Stock Number | 114394 |
| Quantity | 1 |

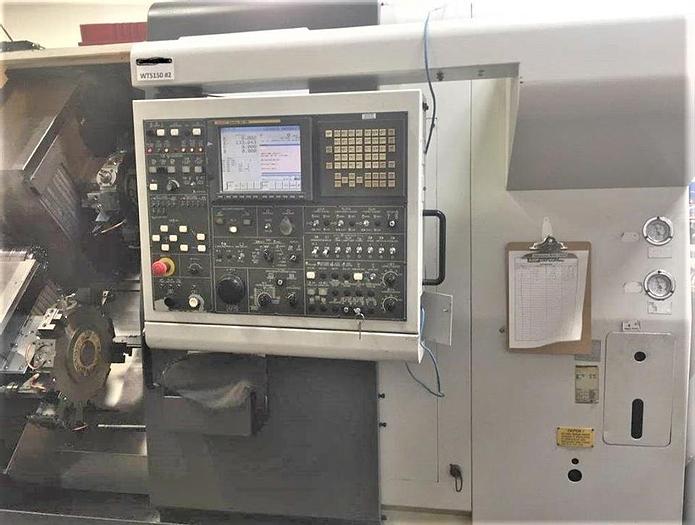

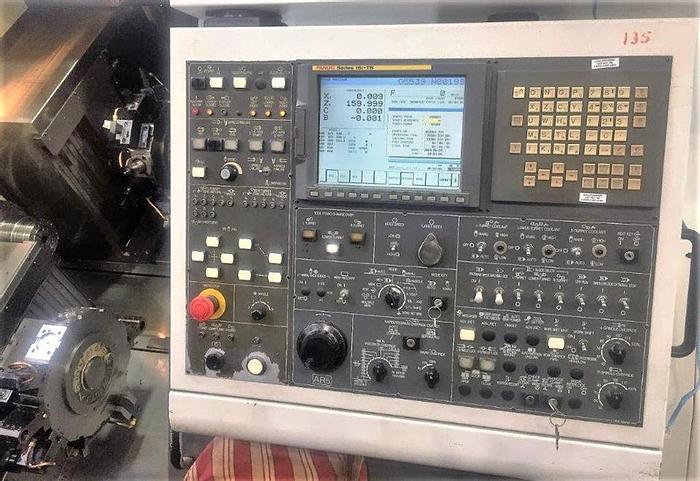

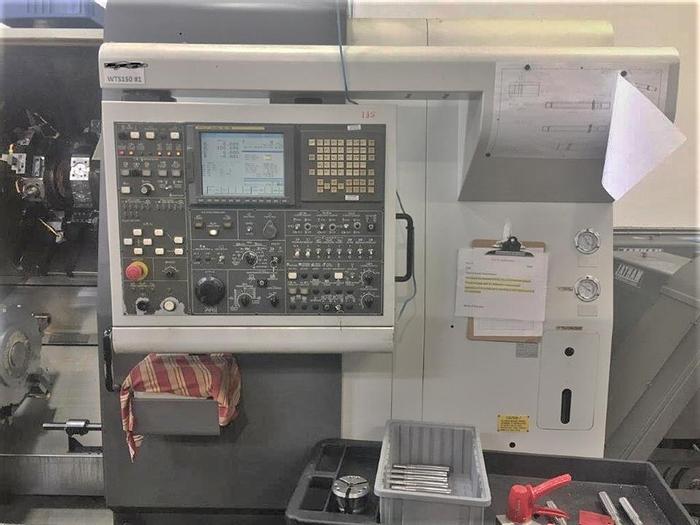

| Control | Fanuc 16iTB |
| Chuck Sizes Main / Subspindle | Collet / 6" 3 jaw hydraulic |
| Maximum Turning Diameter | 12.2" |
| Maximum Turning Length | 10.03" |
| Maximum Bar Capacity Left Spindle / Right Spindle | 1.65" / 1.25" |
| X1 / X2 Axis Travel | 8.16" / 8.16" |
| Y-Axis Travel Upper Turret | +/- 1.18" Both Upper Turrets |
| Z1 / Z2 Axis Travel | 11.81" / 31.49" |
| B-Axis Travel (Subspindle) | 34.4" |
| C Axis Spindle Rotation - Both Spindles | 0.001 degree |
| Number of Turrets | 3 |
| Number of Turret Positions - Upper Turrets | 12 Stations each |
| Number of Turret Positions - Lower Turret | 12 Stations |
| Spindle Speed / Spindle Motor Left Spindle | 6,000 RPM / 20 HP |
| Spindle Speed / Spindle Motor Right Spindle | 8,000 RPM / 20 HP |
| Milling Spindle Speed / Milling Motor | 6,000 RPM / 5 HP |
| Milling Spindle Speed / Milling Motor - Lower Turret | 6,000 RPM / 5 HP |
| Machine Weight | 22,000 lbs. |
