2012 Mazak Vertical Center Smart 530C

2012 Mazak Vertical Center Smart 530C

$45,000 (USD)

orCall (863) 439-6066

Description

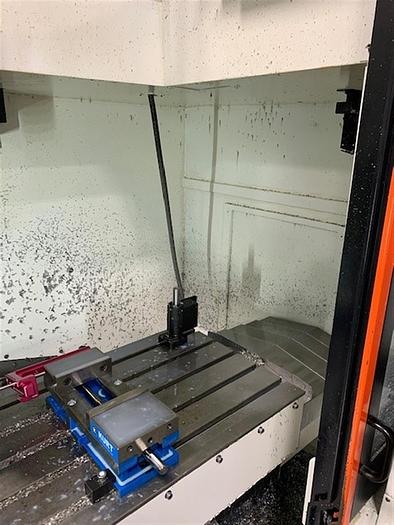

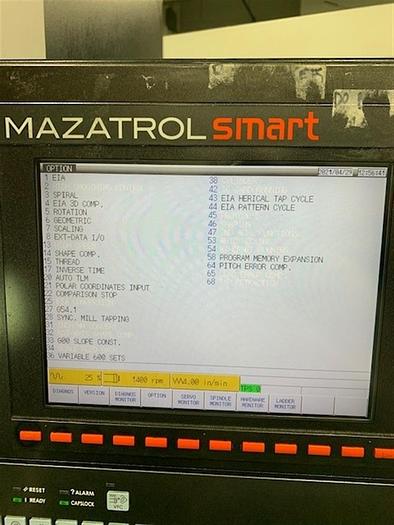

Auto Tool Length Measurement Probe 30 Station Side Mounted Tool Changer EIA Capability Spiral EIA 3D Comp Rotation Geometric Scaling EXT-Data I/O Shape Comp Thread Inverse Time Comparison Stop G54.1 Rigid Tapping G00 Slope Const. Variable 600 Sets EIA Herical Tap Cycle EAI Pattern Cycle Program Memory Expansion Pitch Error Comp Flood Coolant All Available Manuals

New in October of 2012

Specifications

ManufacturerMazak
ModelVertical Center Smart 530C
Year2012
ConditionUsed
Stock Number117425
Quantity1

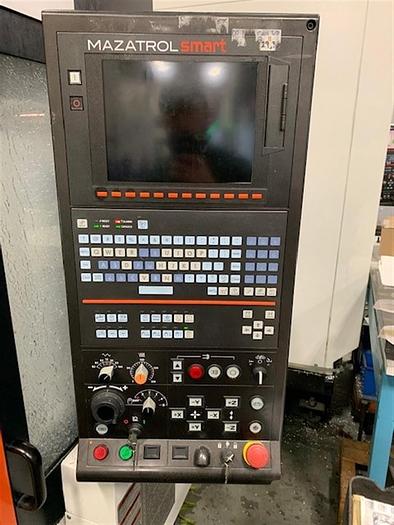

ControlMazatrol Smart
Table Size51.18" x 21.65"
Maximum Table Load2,646 lbs
X-Axis Travel41.34"
Y-Axis Travel20.87"
Z-Axis Travel20.08"
Spindle TaperCAT 40
Spindle Speeds12,000 RPM
Spindle Motor25 HP
Distance Spindle Nose to Table Top5.9" - 25.98"
Number of Tool Positions30 Station Tool Changer - Side Mounted
Maximum Tool Diameter / Length / Weight4.92" / 13.8" / 17 lbs.
Tool Change Time Tool to Tool1.3 Seconds
Rapid Traverse Rates1417 IPM
Machine Dimensions113" x 111" x 113"
Machine Weight15,180 lbs.
