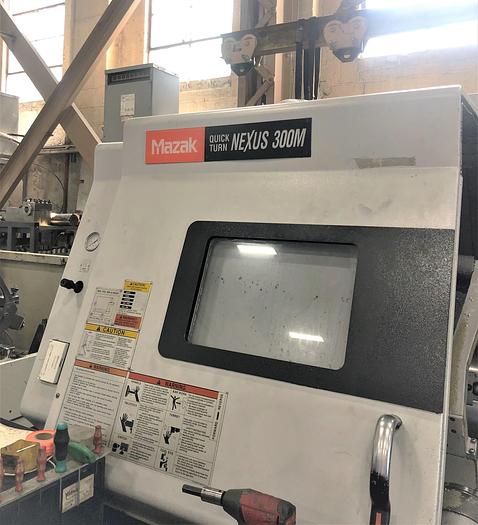

2006 Mazak Nexus QTN 300M/1250
No longer available
2006 Mazak Nexus QTN 300M/1250
$55,000 (USD)
Location:New Jersey
Description
Full C Axis Spindle Rotation Live Milling/Drilling Capability 10" 3 Jaw Hydraulic Chuck Automatic Tool Eye Chuck Open/Close Confirm. Mill / Synchronous Tapping 3.5" Floppy Disk Drive RS-232 Port for DNC Interface VDI Style Tooling Multi Tap Transformer Wired 208 Voltage Currently All Available Tooling/Manuals
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 300M/1250 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 117527 |
| Quantity | 1 |
| Control | Mazatrol Fusion 640MT Nexus |
| Chuck Size | 10" Hydraulic |
| Maximum Swing | 29.53" |
| Maximum Cutting Diameter | 16.54" |
| Maximum Machining Length | 46.2" |
| Maximum Bar Capacity | 3.03" |
| X-axis travel | 10.13" |
| Z-Axis Travel | 48.75" |
| C-Axis Rotation | .001 Degree |
| Spindle Nose / Spindle Bore | A2-8" / 3.46" |
| Spindle Speed | 4,000 RPM |
| Spindle Motor | 35 HP |
| Rotary Tool Speed / Rotary Motor | 4,500 RPM / 10 HP |
| Number of Turret Positions | 12 Station VDI Type Turret |
| ID Tool / OD Tool | 2" / 1" |
| Rapid Traverse Rates X/Z | 1181 IPM / 984 IPM |
| Tailstock Center | MT #4 |
| Machine Dimensions | 136" x 81" x 79" |
| Machine Weight | 16,314 lbs. |
