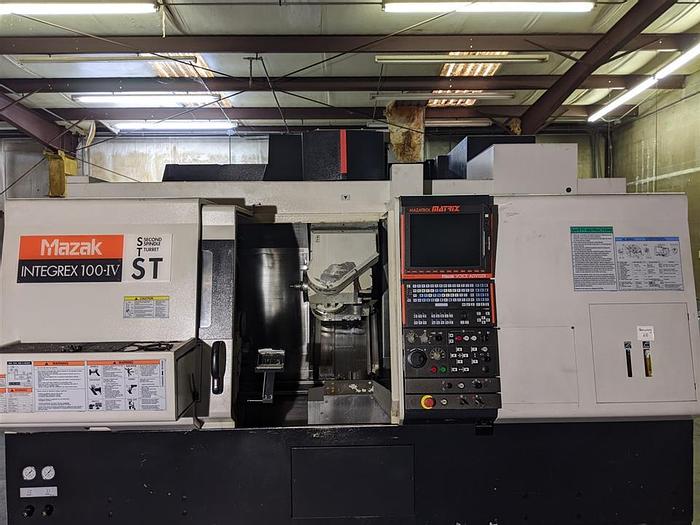

2006 Mazak Integrex 100-IVST
No longer available
2006 Mazak Integrex 100-IVST
$134,500 (USD)
Location:Florida
Description
Y-axis Capabiliity Subspindle 9 Station Lower Turret C Axis 0.0001 Degree Increment - Main Live Milling/Drilling Capability 40 Station Tool Magazine Automatic Tool Eye Automatic Parts Catcher w/ Eject Chip Conveyor EIA/ISO Input Function Milling Spindle Synchronous Tapping Cardbus I/F (2 slots) USB Port Interface Coolant Through Milling Head 2nd Spindle Position 0.001 deg. B Axis Head Index 5 degree by Clamp Auto Chuck Jaws Open and Close Windows XP Operating System for Mazak Auto Power Off 15” Color LCD Monitor Inch/Metric Conversion LAN Port Interface
Specifications
| Manufacturer | Mazak |
| Model | Integrex 100-IVST |
| Year | 2006 |
| Condition | Used |
| Stock Number | 117342 |

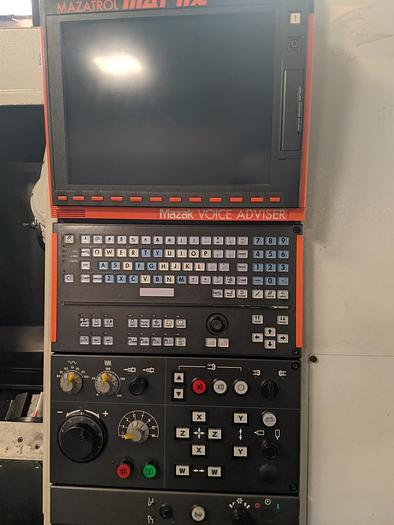

| Control | Mazatrol Matrix w/ Voice Advisor |

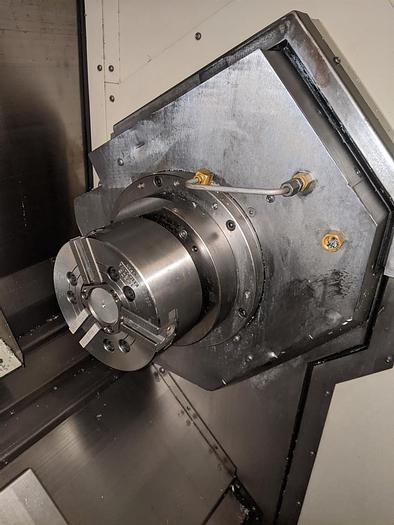

| Chuck Sizes Main / Subspindle | 6" 3-Jaw Hydraulic / 6" Hydraulic Chuck |
| Maximum Swing | 21.46" |
| Maximum Swing Using Y Axis | 16.22" - 21.46" |
| Maximum Swing Over Cross Slide | 13.86" |
| Maximum Swing Over Lower Turret | 15.75" |
| Maximum Cutting Diameter - Chucking | 21.46" Upper Turret |
| Maximum Machining Length | 29.65" |
| Maximum Distance Between Chuck Faces | 28.9" |

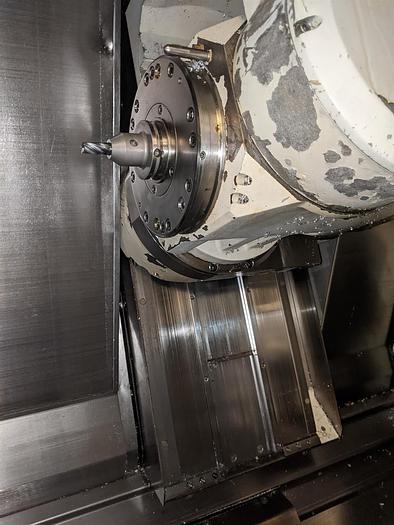

| B-Axis Tilt Movement | 225 Degrees |
| C-Axis Spindle Rotation - Both Spindles | 0.0001 Degrees |
| X-Axis Travel Upper Turret / Lower Turret | 16.14" / 8.66" |
| Y-Axis Travel Upper Turret ONLY | +/- 2.75" |
| Z-Axis Travel Upper Turret / Lower Turret | 31.69": / 30.71" |
| W-Axis Subspindle Travel | 31.3" |
| Main & Subspindle Nose / Bore | A2-5" / 2.4" |
| Main & Subspindle Speeds | 6,000 RPM |
| Main & Subspindle Motor | 15 HP / 10 HP |
| Number of Tool Positions | 40 Station Tool Changer |
| Number of Turret Positions | 1 Position Turret |
| Turret Spindle Type | KM63 |
| Rotary Tool Speed / Rotary Motor | 12,000 RPM / 7.5 HP |

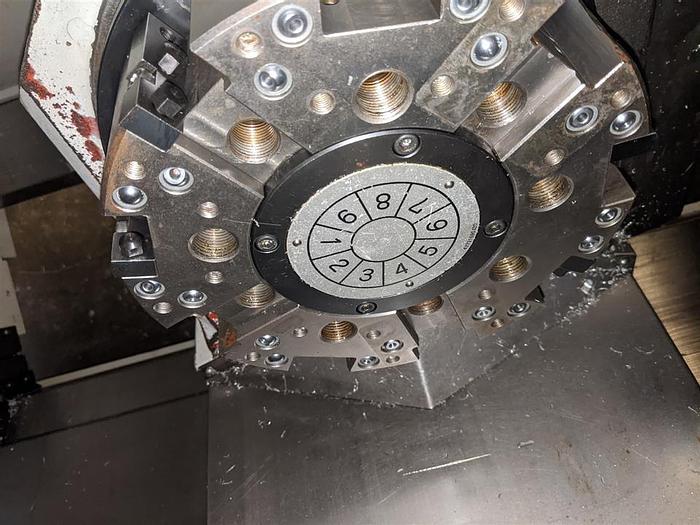

| Number of Lower Turret Positions | 9 Station Turret |
| Machine Dimensions | 121.06" x 97.73" x 88.3" |
| Machine Weight | 18,078 lbs. |
