2000 Mazak QT10
No longer available
2000 Mazak QT10
$21,500 (USD)
Location:California
Description
Parts Catcher
Chip Conveyor - Rear Type 12 Position Turret Automatic Tool Eye Tailstock Multi-Tap Transformer
RS 232 Port Interface
Coolant System with Tank & Pump All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | QT10 |
| Year | 2000 |
| Condition | Used |
| Stock Number | 117336 |

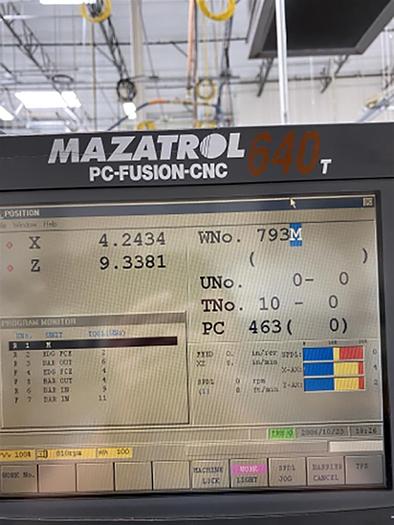

| Control | Mazatrol Fusion 640T |
| Chuck Size | 6" 3-Jaw Hydraulic |
| Maximum Swing | 19.25" |
| Maximum Cutting Diameter | 6.3" |
| Maximum Machining Length | 11.2" |
| X-Axis Travel | 3.75" |
| Z-Axis Travel | 11.4" |
| Spindle Nose / Bore / Bar Capacity | A2-5 / 1.97" / 1.57" |
| Spindle Speeds | 60-6,000 rpm |
| Spindle Motor | 10 hp |
| Spindle Torque | 70 ft. lbs |
| Number of Turret Positions | 12 Position Drum |
| Rapid Traverse Rates X/Z | 1200 / 1300 ipm |
| Tailstock Quill Diameter / Center | 2.17" / #4 MT |
| Tailstock Body Travel / Quill Travel | 12.8" / NA |
| Machine Dimensions LxWxH | 79"x53"x76" |
| Machine Weight | 5,960 lbs |
