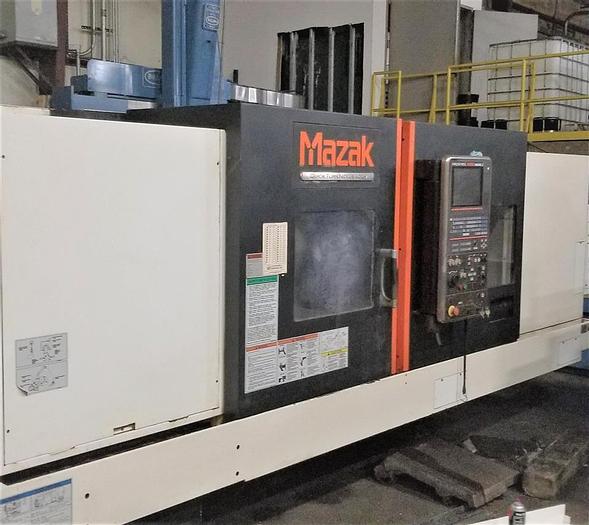

2013 Mazak Nexus QTN 400-II/2000
No longer available
2013 Mazak Nexus QTN 400-II/2000
$175,000 (USD)
Location:Ohio
Description
15" SMW BB-N-400-140 Autoblok Air Chuck SMW SLU-X-3.2 Hydraulic Steady Rest Side Exit Chip Conveyor Automatic Tool Eye Programmable Tailstock High Power Coolant Re-Threading Thread Start Point Compensation Additional Coolant Nozzle 12.1" Color LCD USB Interface (2 Port) LAN Port Interface User Macro EIA/ISO Input Function Absolute Positioning Multitap Transformer Tool Path Storage Chuck Open/Close Confirm Windows XP Operation System Mazak Relocation Device All Available Manuals All Available Tooling
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 400-II/2000 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 117183 |
| Quantity | 1 |
| Control | Mazatrol Matrix Nexus 2 |

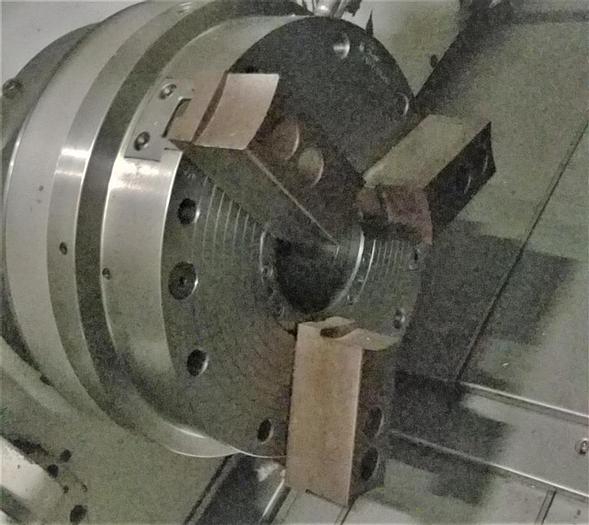

| Chuck Size | 15" Air Chuck |
| Maximum Swing | 33.268" |
| Maximum Turning Diameter | 22.835" |
| Maximum Turning Length | 81.69" |
| Maximum Bar Capacity | 5.2" with these chucks |
| X-Axis Travel | 12.13" |
| Z-Axis Travel | 83.5" |
| Spindle Nose / Spindle Bore | A2-11" / 5.2" |
| Spindle Speeds | 2,500 RPM |
| Spindle Motor | 50 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Body Travel / Center | 80.375" / MT #5 |
| Machine Dimensions | 156"x90"x80" |
| Machine Weight | 25,283 lbs. |
