1997 Mazak HTC400
Sold
1997 Mazak HTC400
$9,995 (USD)
(2) for $19,000, (3) for $27,000, machines are similarly equipped, yet slightly different
Location:Dundee, FL
Description
2 Pallet Changer System 4th Axis Rotary Table w/ 15 Degree Indexing 24 Position Tool Changer Automatic Tool Length Measurement-Probe Flood Coolant System Chip Conveyor Side Exit - Mayfran Helical Interpolation 1000 M Additional Program Memory Rigid Tapping EIA/ISO Input Function RS-232C Interface Tool Life Monitoring Adaptive Feedrate Control Tool Life Management Spare Tool Selection Backround Tool Path Check Machine is wired 230V 3 Phase
Specifications
| Manufacturer | Mazak |
| Model | HTC400 |
| Year | 1997 |
| Condition | Used |
| Stock Number | 116950 |
| Quantity | 1 |
| Pallet Size / Number of Pallets | 15.7"x15.7" / 2 |
| Maximum Table Load | 660 lbs |
| Table Indexing | 15 Degrees |
| X-axis travel | 22.05" |
| Y-Axis Travel | 20.08" |
| Z-Axis Travel | 20.08" |
| Distance Spindle Nose to Table Top | 5.9"-25.98" |
| Maximum Tool Diameter / Length / Weight | 4.52" / 14.96" / 17.6 lbs |
| Spindle Speed | 10,000 rpm |
| Spindle Taper | CAT 40 |
| Spindle Motor | 15 hp |
| Spindle Torque | 51.3 ft. lbs |
| Rapid Traverse Rates | 1181 ipm |

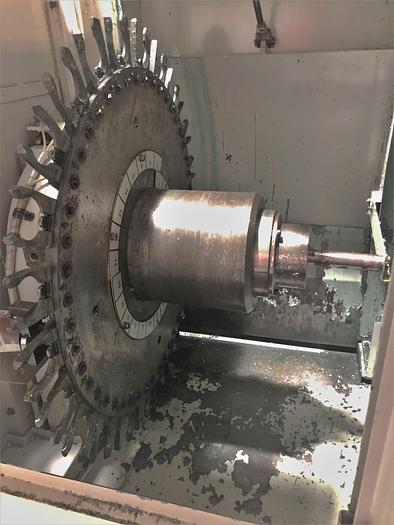

| Tool Magazine Capacity | 24 atc |
| Machine Dimensions LxWxH | 140"x89"x90" |
| Machine Weight | 14,767 lbs |

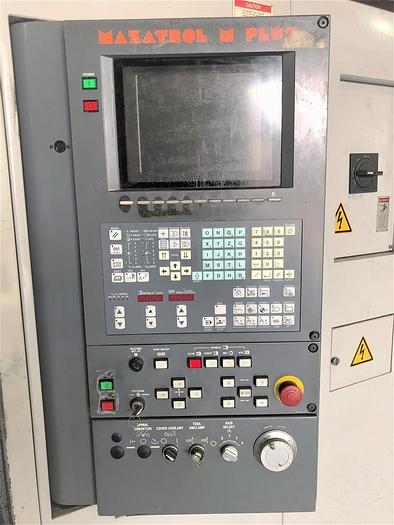

| Machine Control | Mazatrol Mplus |
