1997 Mazak HTC400
Sold
1997 Mazak HTC400
$9,995 (USD)
(2) for $19,000, (3) for $27,000, machines are similarly equipped, yet slightly different
Location:Dundee, FL
Description

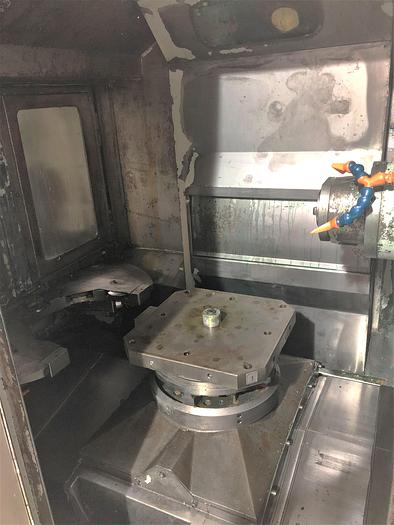

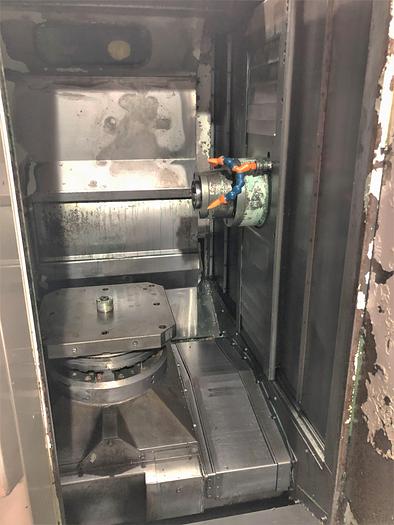

2 Pallet Changer System 30 Position Tool Changer 4th Axis Rotary Table with 15 Degree Indexing Flood Coolant System Chip Conveyor-Mayfran Coolant Wash in Tool Change Cabinet Helical Interpolation Rigid Tapping EIA/ISO Input Function RS-232C Interface Tool Life Monitoring Adaptive Feedrate Control Tool Life Management Spare Tool Selection Backround Tool Path Check Machine is wired 230V 3 Phase Transformer 200V-480V
Specifications
| Manufacturer | Mazak |
| Model | HTC400 |
| Year | 1997 |
| Condition | Used |
| Stock Number | 116949 |
| Quantity | 1 |
| Pallet Size / Number of Pallets | 15.7"x15.7" / 2 |
| Maximum Table Load | 660 lbs |
| Table Indexing | 15 Degrees |
| X-Axis Travel | 22.05" |
| Y-Axis Travel | 20.08" |
| Z-Axis Travel | 20.08" |
| Maximum Tool Diameter / Length / Weight | 4.52" / 14.96" / 17.6 lbs |
| Spindle Speed | 10,000 rpm |
| Spindle Taper | CAT 40 |
| Spindle Motor | 15 hp |
| Spindle Torque | 51.3 ft. lbs |
| Rapid Traverse Rates | 1181 ipm |

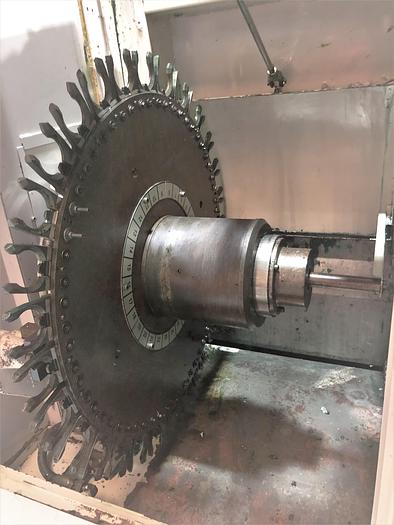

| Tool Magazine Capcity | 30 Position Tool Changer |
| Machine Dimensions LxWxH | 140"x89"x90" |
| Machine Weight | 14,767 lbs |

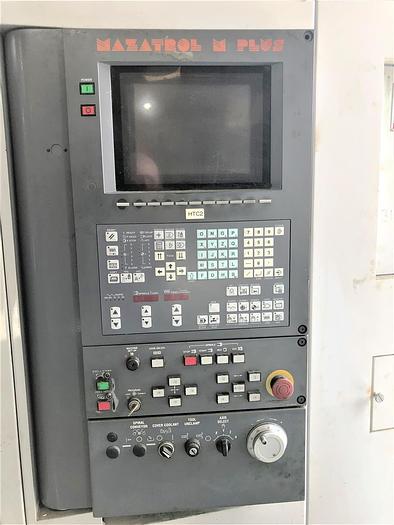

| Machine Control | Mazatrol Mplus |
