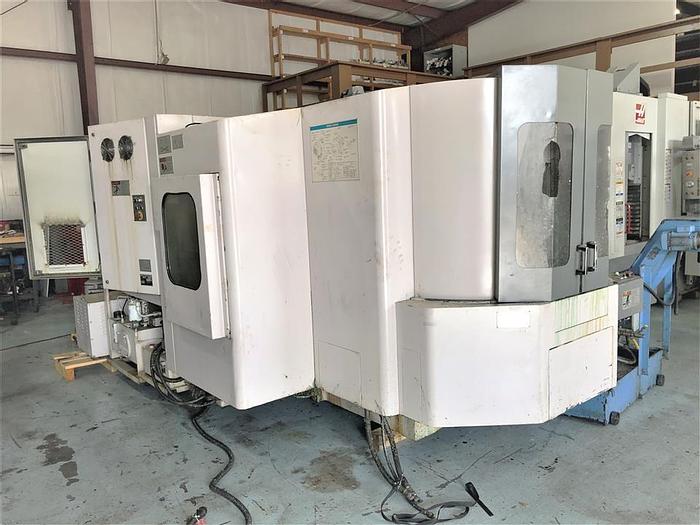

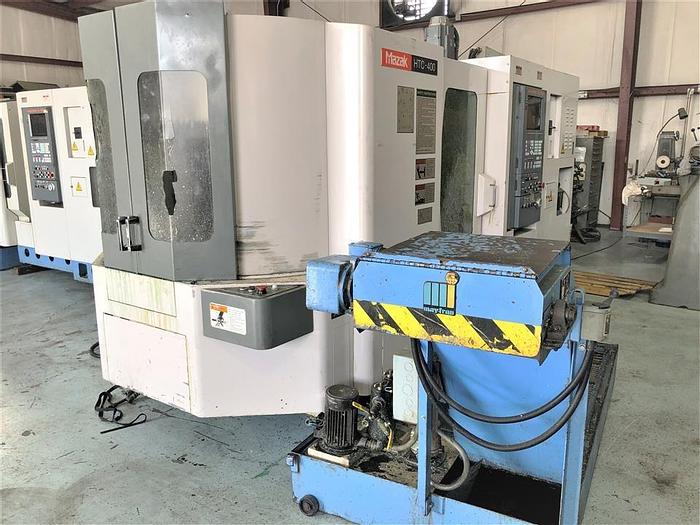

1996 Mazak HTC400 - PARTS MACHINE ONLY

1996 Mazak HTC400 - PARTS MACHINE ONLY

$7,500 (USD)

Dundee, FL

orCall (863) 439-6066

Description

PARTS MACHINE ONLY

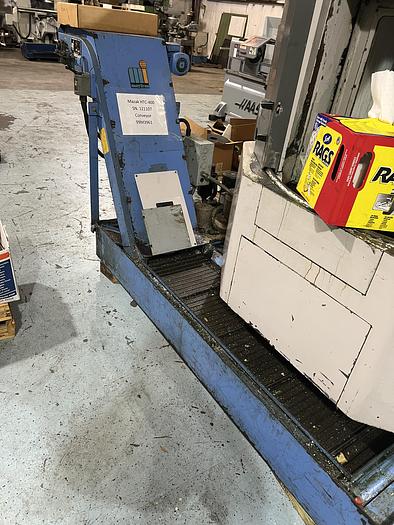

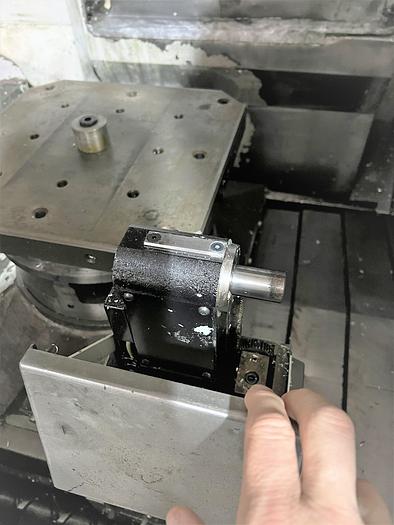

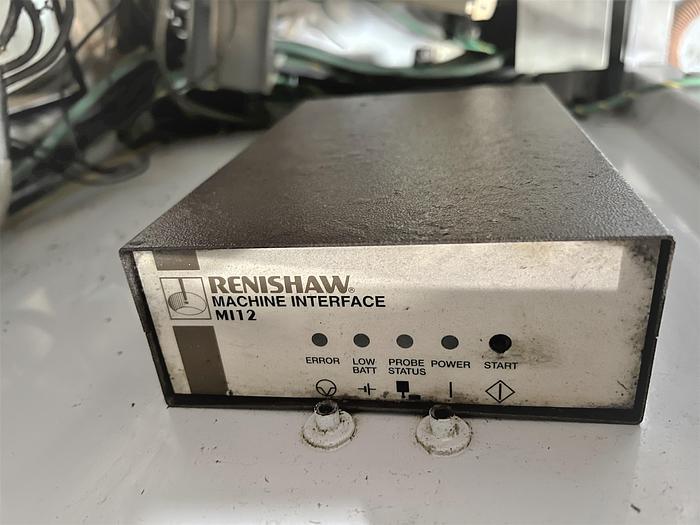

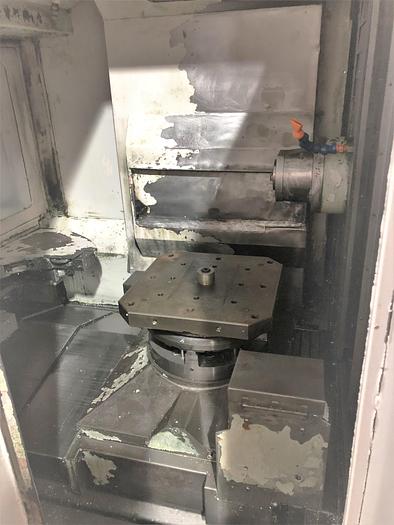

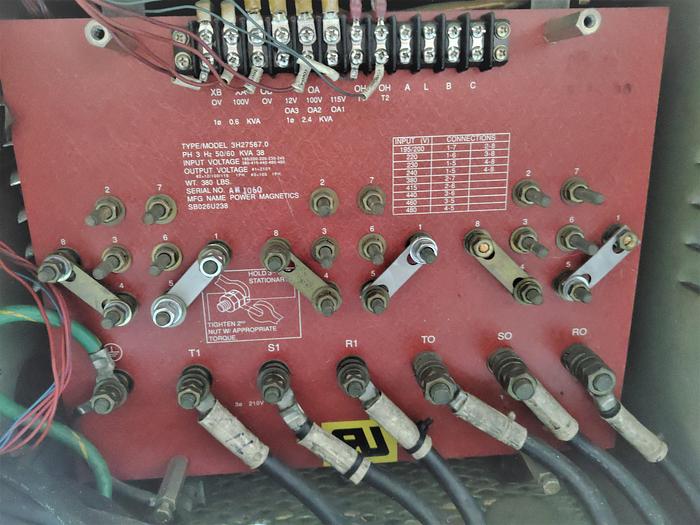

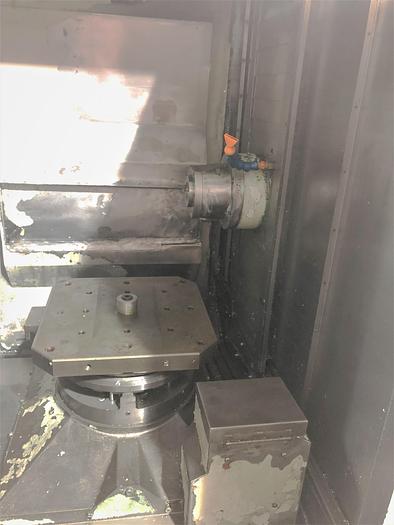

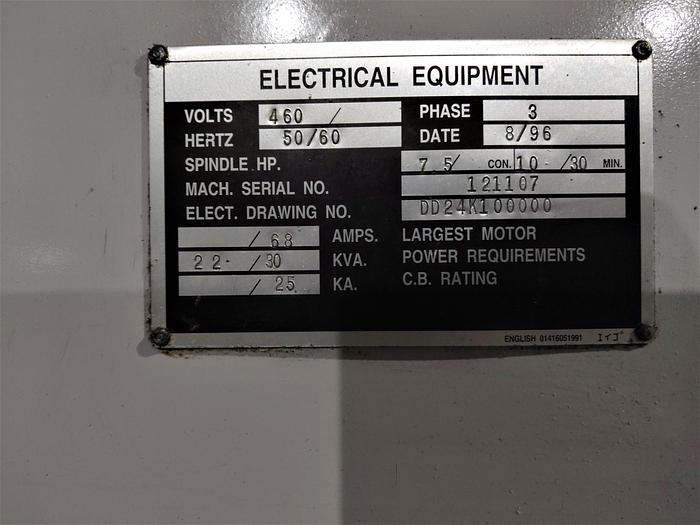

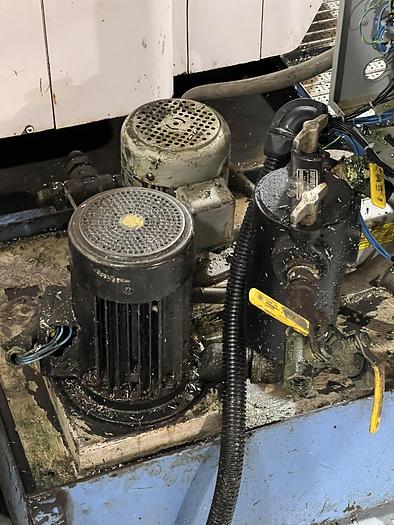

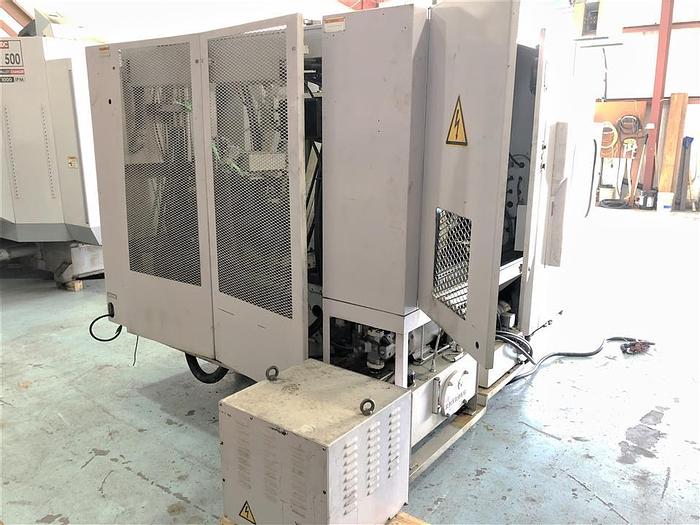

2 Pallet Changer System 4th Axis Rotary Table with 15 Degree Indexing 30 Position Tool Changer Coolant Through the Spindle Automatic Tool Length Measurement Prepped for Part Probing with Renishaw MI 12 Interface and wiring already installed Dual Chip Augers Chip Conveyor Side Exit-Mayfran Mazak 2D High Speed Software Package 1000 M of Additional Program Memory Niagara Coolant System with Pump Flood Coolant System Coolant Wash in Tool Change Cabinet Helical Interpolation Rigid Tapping EIA/ISO Input Function RS-232C Interface Tool Life Monitoring Adaptive Feedrate Control Tool Life Management Spare Tool Selection Backround Tool Path Check Machine is wired 460V 3 Phase Multi Tap Transformer


Specifications

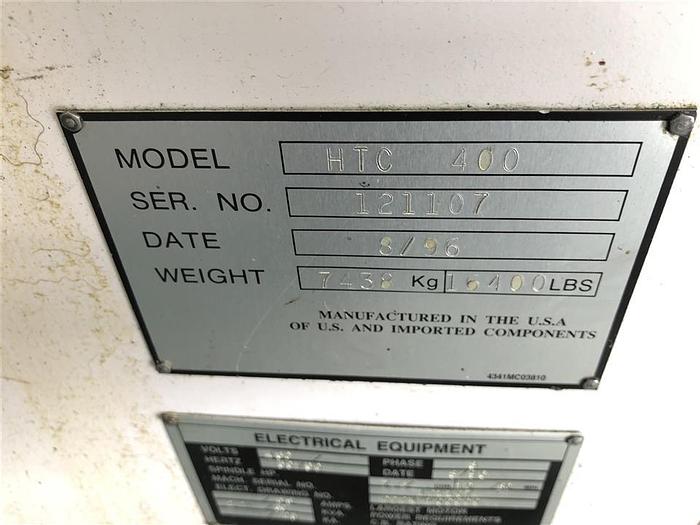

ManufacturerMazak
ModelHTC400
Year1996
ConditionUsed
Stock Number116947

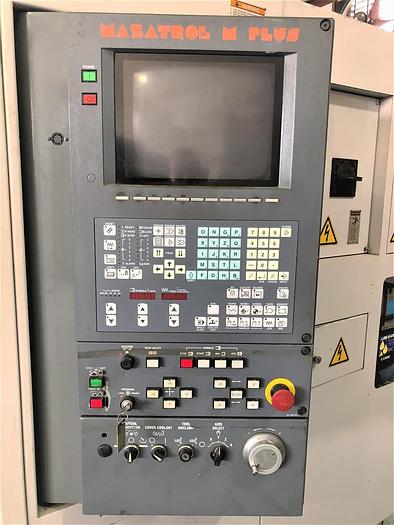

Machine ControlMazatrol Mplus
Pallet Size / Number of Pallets15.7"x15.7" / 2 pallet changer
Maximum Table Load660 lbs
Table Indexing15 Degree pallet index
X-axis travel22.05"
Y-Axis Travel20.08"
Z-Axis Travel20.08"
Distance Spindle Nose to Table Top5.9" - 25.98"
Spindle TaperCAT 40
Spindle Speed10,000 RPM

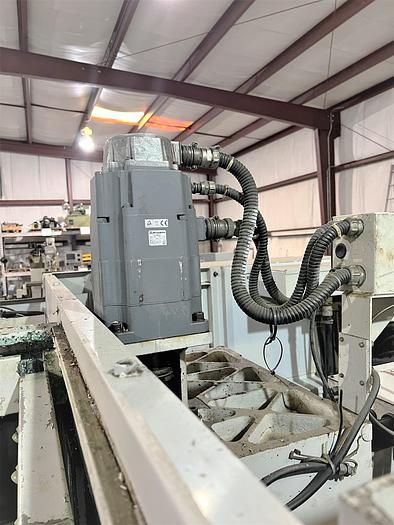

Spindle Motor15 HP
Spindle Torque51.3 ft. lbs
Spindle Torque51.3 ft lbs

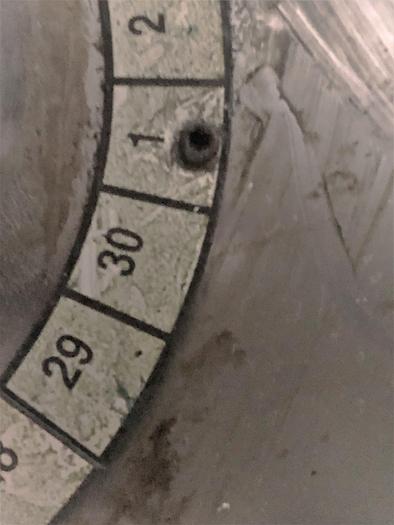

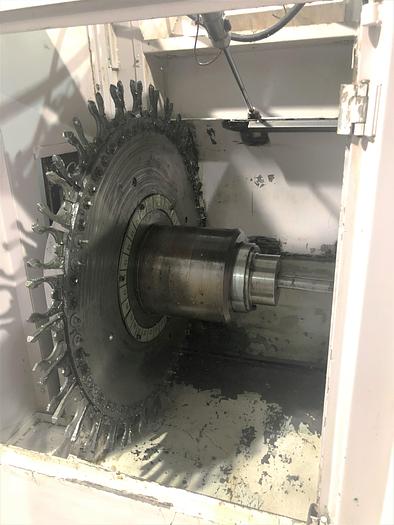

Tool magazine capacity30 Position Tool Changer
Maximum Tool Diameter / Length / Weight4.52" / 14.96" / 17.6 lbs
Rapid Traverse Rates1181 IPM
Machine Dimensions LxWxH140"x89"x90"
Machine Weight16,400 lbs
