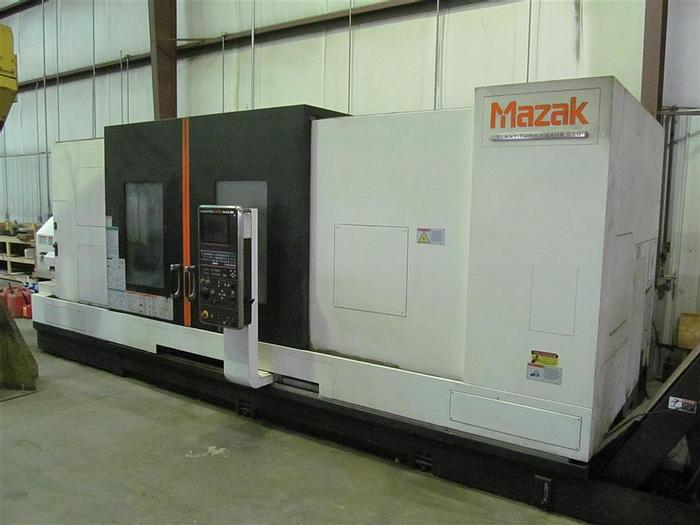

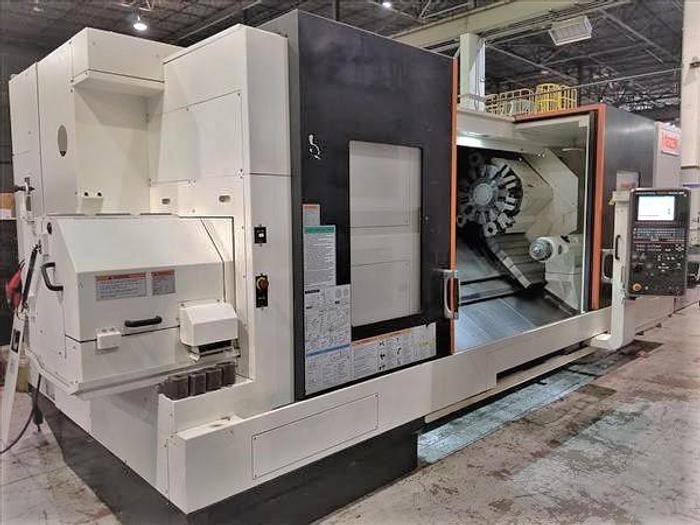

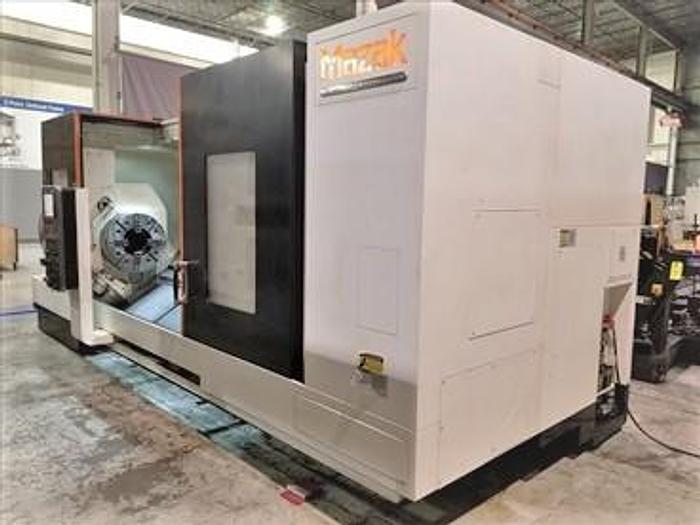

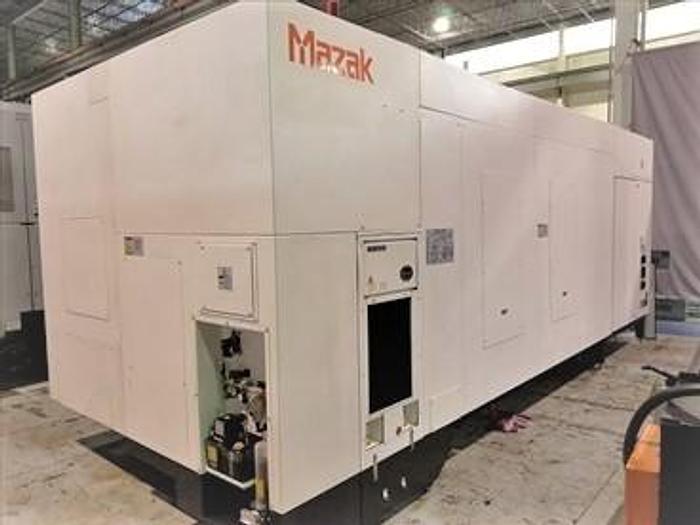

2011 Mazak Slant Turn Nexus 550/2000
No longer available
2011 Mazak Slant Turn Nexus 550/2000
$199,500 (USD)
Illinois
Description

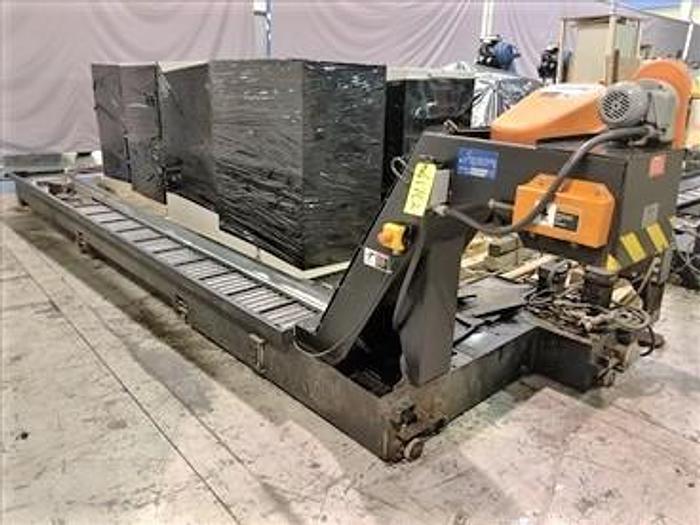

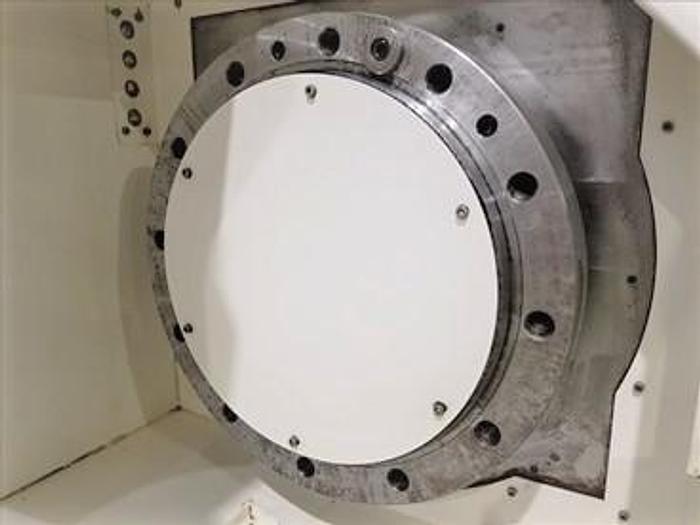

10.8" Spindle Bore Option 80" Center Distance 25" 4 Jaw Manual Chuck Prepped for Mounting of Rear Chuck Chip Conveyor Tool Presetter Tailstock RS 232 Port Interface USB Port Interface All Available Tooling All Available Manual
Manufactured new in August of 2011

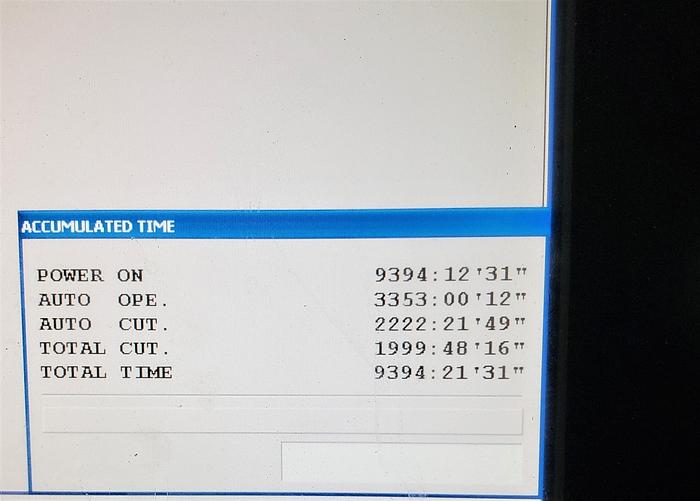

ONLY 1999 Total Cutting Hours
Specifications
| Manufacturer | Mazak |
| Model | Slant Turn Nexus 550/2000 |
| Year | 2011 |
| Condition | Used |
| Stock Number | 116946 |
| Quantity | 1 |

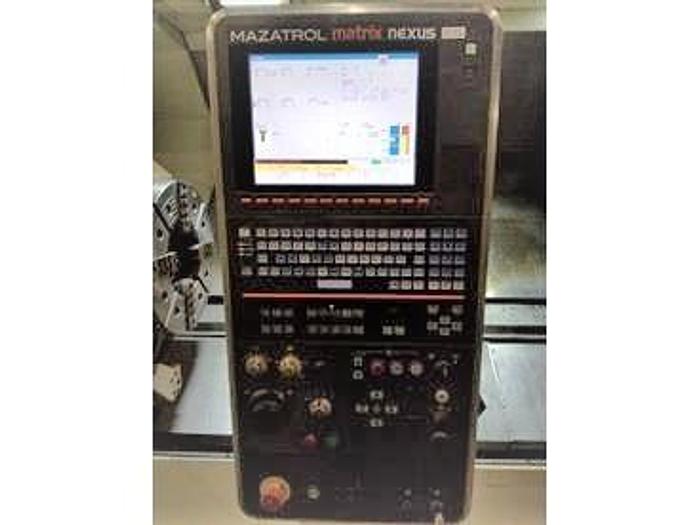

| Control | Mazatrol Matrix Nexus |

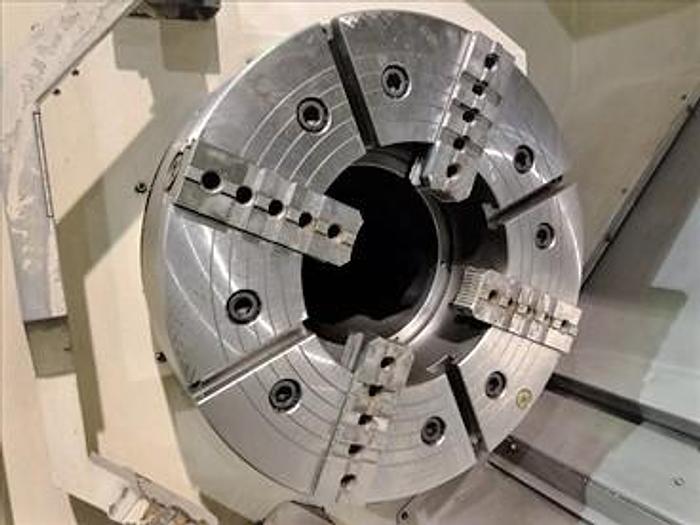

| Chuck Size | 24" 4 jaw manual chuck |
| Maximum Swing | 40.94" |
| Maximum Cutting Diameter | 36.38" |
| Maximum Turning Length | 82.78" |
| X-Axis Travel | 18.25" |
| Z-Axis Travel | 80" |
| Spindle Nose / Spindle Bore | A2-20" / 10.8" |
| Spindle Speeds | 4- - 1,000 RPM |
| Spindle Motor | 60 HP |

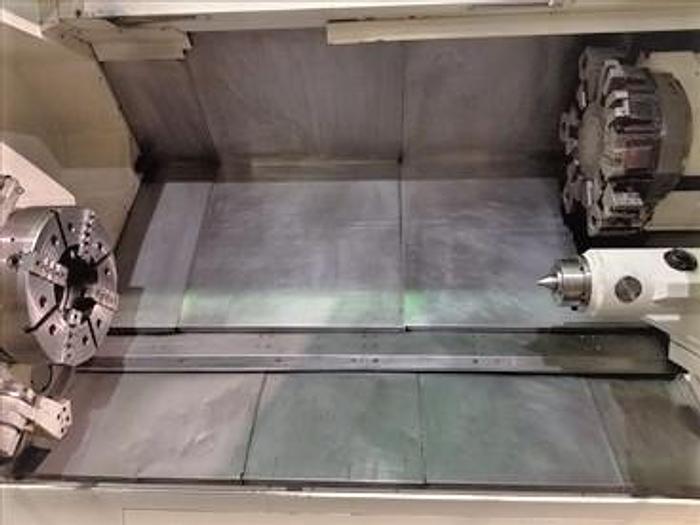

| Number of Turret Positions | 12 Station Turret |
| Turning Tool / Boring Tool | 1.25" / 2.5" round |
| Rapid Traverse Rates X/Z | 787 IPM / 945 IPM |

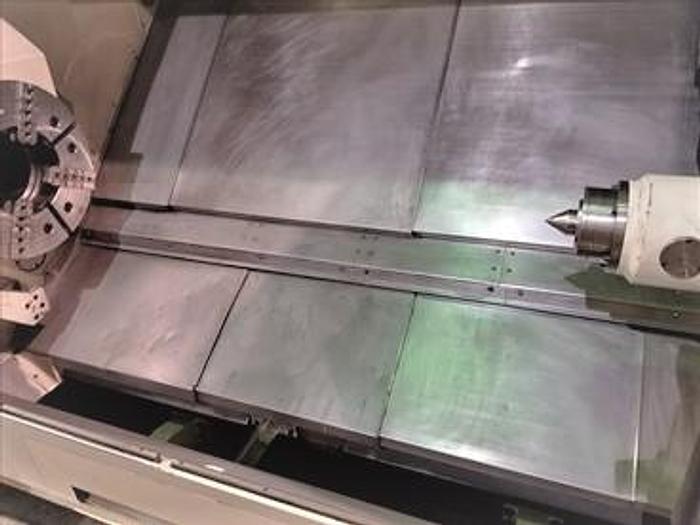

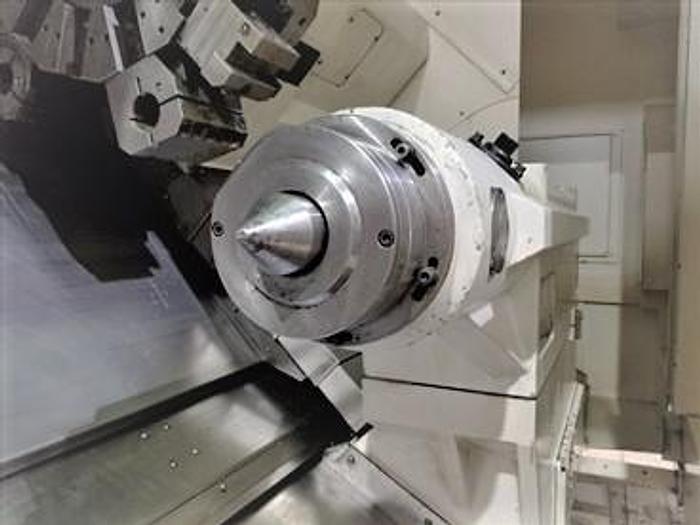

| Tailstock Body Travel / Quill Travel | 82.12" / 9.8" |
| Tailstock Quill Diameter / Center | 7.09" / MT #6 |
| Machine Dimensions | 250" x 96.1" x 96.9" |
| Machine Weight | 42,700 lbs. |
