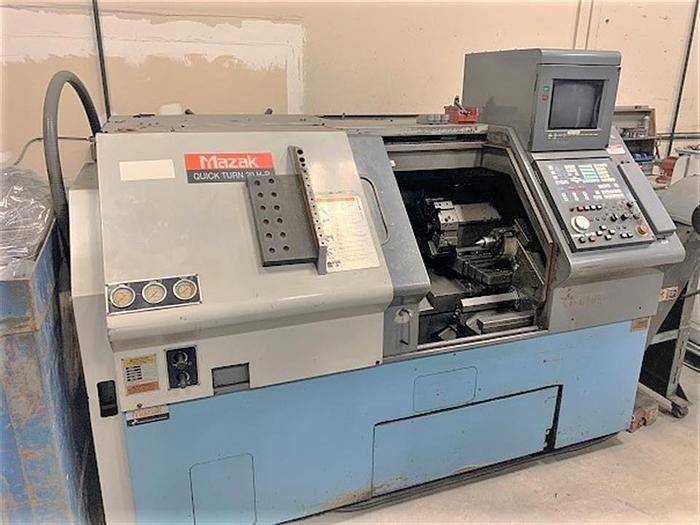

1997 Mazak QT20HP
1997 Mazak QT20HP
Contact us for price
Canada
orCall (863) 439-6066
Description

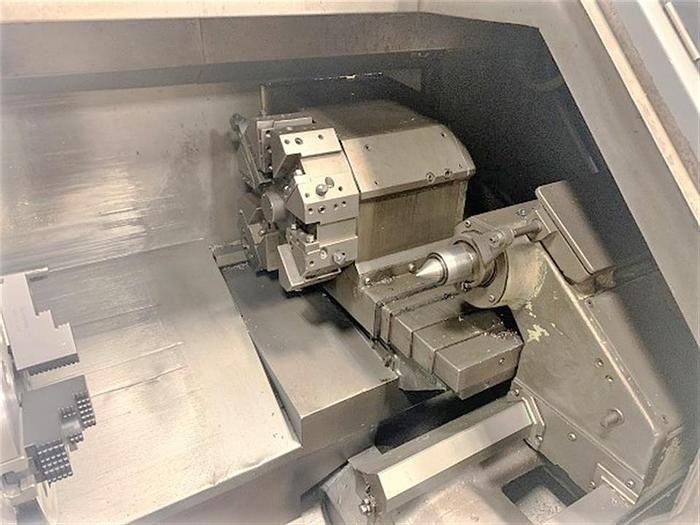

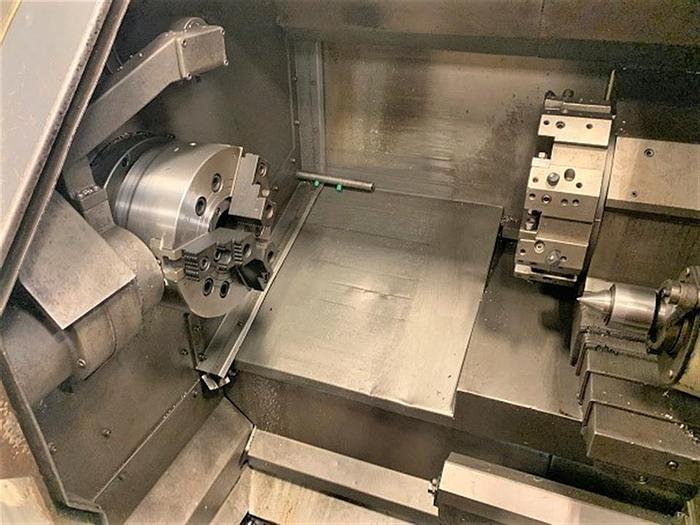

10" Kitagawa Hydraulic Chuck (new hydraulic chuck and cylinder) Automatic Tool Eye Programmable Tailstock Chip Conveyor Complete Coolant System with Tank & Pump RS 232 Port Interface All Available Manuals All Available Tooling
Specifications
| Manufacturer | Mazak |
| Model | QT20HP |
| Year | 1997 |
| Condition | Used |
| Stock Number | 116903 |
| Control | Mazatrol Tplus |
| Chuck Size | 10" Hydraulic Chuck |
| Maximum Swing | 17.32" |
| Maximum Swing Over Cross Slide | 10" |
| Maximum Turning Diameter | 10.62" |
| Maximum Turning Length | 16.75" |
| Maximum Bar Capacity | 2.75" |
| X-Axis Travel | 7.09" |
| Z-Axis Travel | 20.08" |
| Spindle Nose / Spindle Bore | A2-8" / 3.15" |
| Spindle Speeds | 40 - 4,000 RPM |
| Spindle Motor | 20 HP |
| Number of Turret Positions | 8 Station Turret |
| Turret Indexing Time - Chip to Chip | 1.4 seconds |
| Rapid Traverse Rates X / Z | 1200 IPM / 1300 IPM |
| Tailstock Body Travel / Quill Travel | 18.11" / 5.12" |
| Machine Dimensions | 105" x 68.5" x 73.1" |
| Machine Weight | 9,600 lbs. |
