2000 Mazak Integrex 100Y
No longer available
2000 Mazak Integrex 100Y
$34,500 (USD)
Michigan
Description
Y-Axis Capabiliity Full C Axis Spindle Rotation 0.001 Live Milling/Drilling Capability Pendulum Style B Axis Head B Axis Head Index .001 Deg Increment 40 Station Tool Magazine Automatic Tool Eye 6" 3 Jaw Hydraulic Chuck Tailstock with Hydraulic Quick EIA/ISO Input Function Milling Spindle Synchronous Tapping RS 232 Port Interface 3.5" Floppy Disk Drive Interface PCMCIA Type II Interface - 2 Slots IC Memory Card Interface Coolant Through Milling Head Multi Tap Transformer 15” Color LCD Monitor Inch/Metric Conversion All Available Manuals Machine is missing Coolant Tank & Pump
Specifications
| Manufacturer | Mazak |
| Model | Integrex 100Y |
| Year | 2000 |
| Condition | Used |
| Stock Number | 116849 |
| Quantity | 1 |

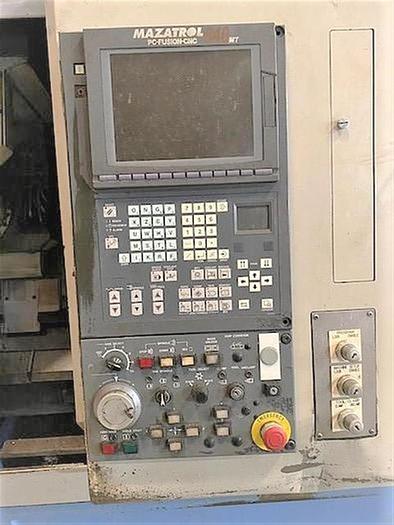

| Control | Mazatrol Fusion 640MT |
| Chuck Size | 6" Hydraulic |
| Maximum Swing Over Cross Slide | 18.5" |
| Maximum Swing Over Cross Slide | 11.42" |
| Maximum Cutting Diameter - Chucking | 18.5" |
| Maximum Cutting Length | 19.76" |
| Maximum Bar Capacity | 1.65" |
| X-Axis Travel | 14.17" |
| Y-Axis Travel | +/- 2.36" |
| Z-Axis Travel | 22" |
| B-Axis Tilt Movement | 225 Degrees - 0.001 Degree Increments |
| C Axis Spindle Rotation | 0.001 Degree - 360,000 Positions |
| Spindle Nose / Spindle Bore | A2-5" / 2.44" |
| Spindle Speeds | 6,000 RPM |
| Spindle Motor | 10 HP |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 7.5 HP |
| Turret Type | 1 Position with ATC - KM63 |
| Number of Tool Positions | 40 Station Tool Changer |
| Rapid Traverse Rates (X, Y, Z) | 1181 IPM / 1024 IPM / 1299 IPM |
| Rapid Traverse Rate C Axis | 400 RPM |
| Tailstock Quill Diameter / Travel | 2.598" / 3.74" |
| Tailstock Body Travel / Center | 15.75" / MT #4 |
| Machine Dimensions | 101" x 82" x 92" |
| Machine Weight | 9,200 lbs. |
