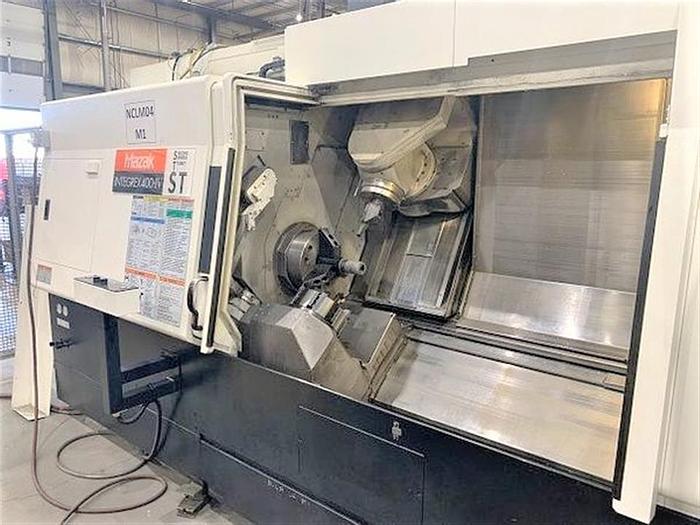

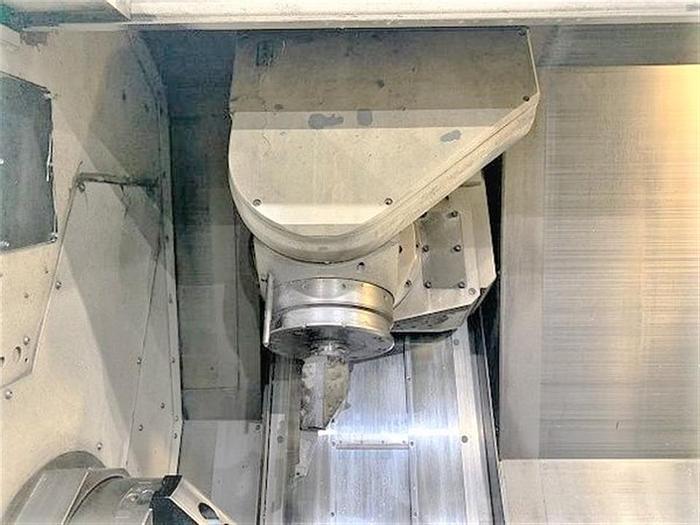

2010 Mazak Integrex 400-IV ST/1500
2010 Mazak Integrex 400-IV ST/1500
$257,950 (USD)
Alberta, Canada
Description
Y Axis Capability B Axis Pendulum Head Subspindle Full "C" Axis Main Spindle and Subspindle Live Milling/Drilling Capability 12" & 10" 3 Jaw Hydraulic Chucks 40 Tool Magazine Coolant Thru Mill Head Chip Conveyor Automatic Tool Eye Chuck Air Blast Subspindle Main & Subspindle Synchronous Cylindrical Interpolation EIA Coordinate Rotation EIA Pattern Cycle EIA/ISO 5-Axis Simultaneous Input Flash Tool G00 Slope Constant Polar Coordinate Input Rotary Axis Shape Compensation Scaling/Coordinate System Rotation Spiral EIA 3D Compensation Threading Thread Cut Speed Override Tilted Workplane Tool Center Point Control Variable 600 Sets 3D Coordinate Rotation Auto Pecking Comparison Stop EIA 3D Comp. EIA Helical Tapping Cycle EXT-Data I/O G54.1 Lower Turret Mazatrol Mill Spindle Sync. Tap. Re-Thread Rotation Geometric Shape Compensation Rotary Axis Sub C-Axis Control Thread/Inverse Time Thread Point Start Compensation Tool Center Point Control Tool Radius Compensation 5 Axis Simultaneous Machining Milling Synchronous Tapping User Macro w/ Interupt IC Memory Card Interface Cardbus Interface - 2 Slots LAN Port Interface USB Port Interface Multi Tap Transformer 230/460 Volt All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Integrex 400-IV ST/1500 |
| Year | 2010 |
| Condition | Used |
| Stock Number | 116799 |
| Quantity | 1 |

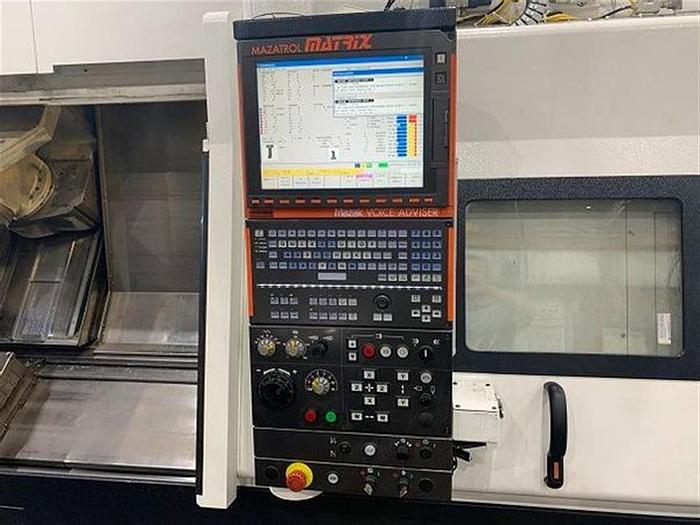

| Control | Mazatrol Matrix |
| Chuck Sizes Main / Subspindle | 12" Hydraulic / 10" Hydraulic |
| Maximum Swing / Using Y Axis | 34" / 26"-30" |
| Maximum Cutting Length | 60" |
| Distance Between Chuck Faces | 60.2" |
| X-Axis Travel | 24.8" |
| Y-Axis Travel | +/- 4.53" |
| Z-Axis Travel | 62.41" |
| B-Axis Tilt Movement | 225 Degrees in .001 Increment |
| C Axis Spindle Rotation Main & Subspindle | .0001 Degree |
| W-Axis Travel - Subspindle | 60.24" |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 404" / 4.0" |
| Spindle Speeds | 35 - 3,300 RPM |
| Spindle Motor | 40 HP |
| Subspindle Nose / Bore / Bar Capacity | A2-8" / 3.46" / 3.0" |
| Subspindle Speed | 4,000 RPM |
| Subspindle Motor | 35 HP |
| Rotary Tool Speed / Rotary Motor | 12,000 RPM / 25 HP |
| Number of Tools in ATC - KM63 | 40 Station Tool Changer |
| Rapid Traverse Rates X, Z / Y / W | 1496 IPM / 1024 IPM / 1181 IPM |
| Machine Dimensions | 202" x 93" x 115" |
| Machine Weight | 28,500 lbs. |
