2008 Mazak Integrex e-650 HS II/4000 Big Bore
2008 Mazak Integrex e-650 HS II/4000 Big Bore
$269,500 (USD)
Location:Louisiana
Description

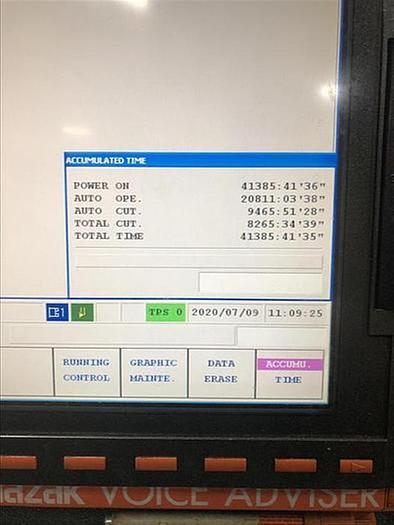

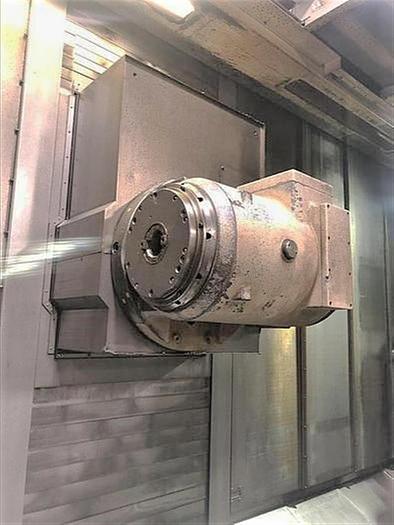

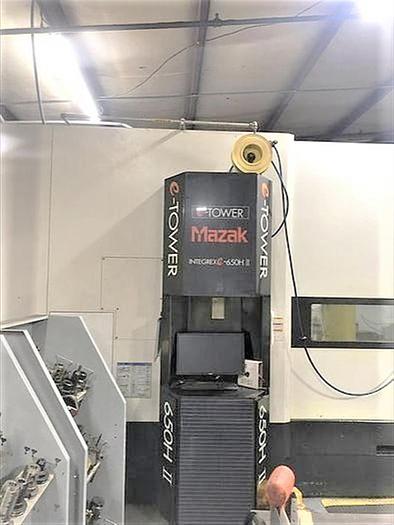

Y Axis Capability Full C Axis Spindle Rotation Live Milling/Drilling Capability B Axis Pendulum Head 120 Station Tool Changer 24" 3 Jaw Hydraulic Chuck on Main Spindle 24" 3 Jaw Hydraulic Chuck on Subspindle 10.24" Spindle Bore Option Chip Conveyor Tool Presetter for up to 24" Diameter Chuck Long Boring Bar Changer - 3 Bar (4.72" diameter x 39.37" long x 396.9 lbs. max) High Pressure 213 PSI Coolant with prep for 1000 psi Mazak Monitoring System B Probing Laser Measurement System for Tool Length CAT 50 Big Plus Mill Spindle w/ C6 Adaptor 8 MB Programming Memory Cyber Tower CNC Ethernet Interface USB Port Interface LAN Port Interface IC Memory Card Interface Cardbus Interface - 2 Slots Coolant Thru the Millhead Subspindle Spindle Orientation Auto Chuck Jaws Open/Close Mill Spindle Synchronized Tapping 8,265 Total Cutting Hours
Specifications
| Manufacturer | Mazak |
| Model | Integrex e-650 HS II/4000 Big Bore |
| Year | 2008 |
| Condition | Used |
| Stock Number | 116236 |

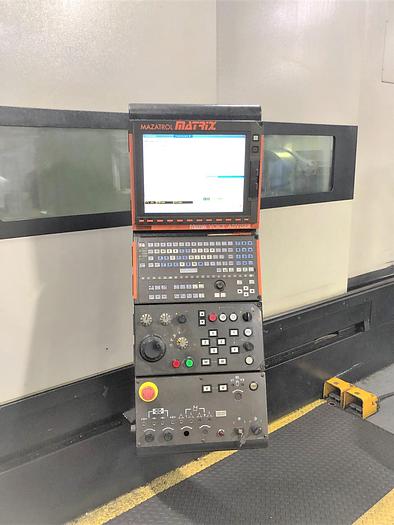

| Control | Mazatrol Matrix |

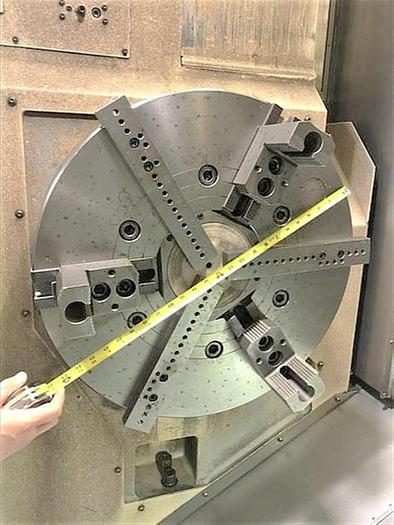

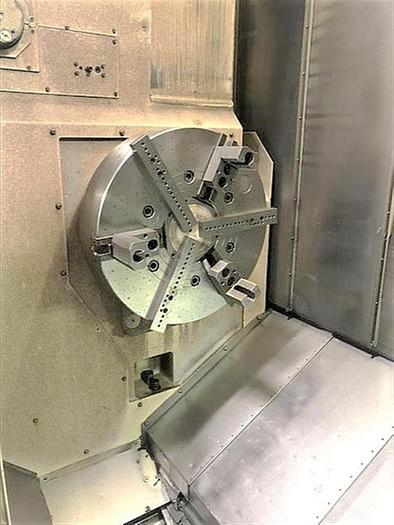

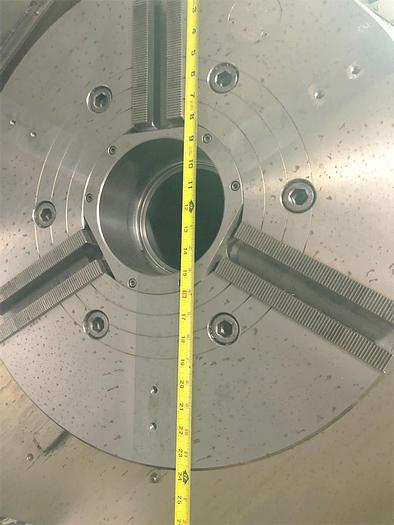

| Chuck Sizes Main / Subspindle | 24" hydraulic / 24" hydraulic |
| Maximum Swing | 36.2" |
| Maxiimum Cutting Length | 160" |
| B Axis Movement / Increment | 240 Degrees / 0.0001 Degree |
| C1 Axis Spindle Rotation/C2 Axis Spindle Rotation | 0.0001 Degree |
| Main & Subspindle Nose / Spindle Bore | A2-15" / 10.24" |
| Main & Subspindle Speeds | 35 - 1,600 RPM |
| Main & Subspindle Motor 30 minutes/continuous | 60 HP / 50 HP |
| Rotary Tool Spindle Taper | Big Plus CAT 50 |
| Milling Spindle Speed / Motor | 10,000 RPM / 50 HP |
| Number of Tool Positions | 120 Position ATC |
| Machine Dimensions | 368" x 155" x 155" |
| Machine Weight | 77,200 lbs. |
