2007 Mazak Integrex e-650 HS II/4000 Big Bore
2007 Mazak Integrex e-650 HS II/4000 Big Bore
$390,000 (USD)
Louisiana
Description

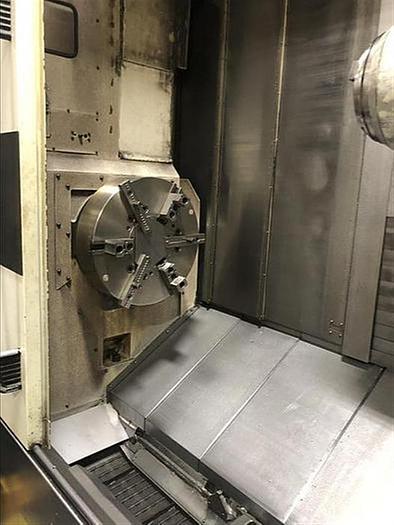

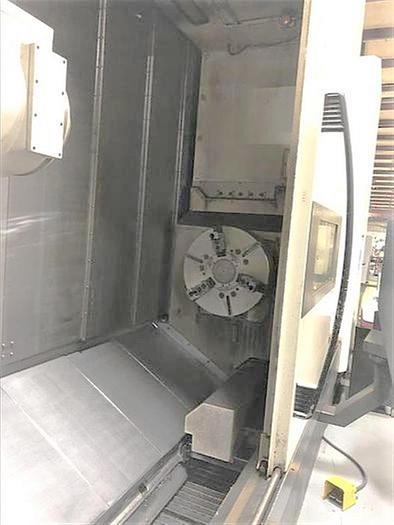

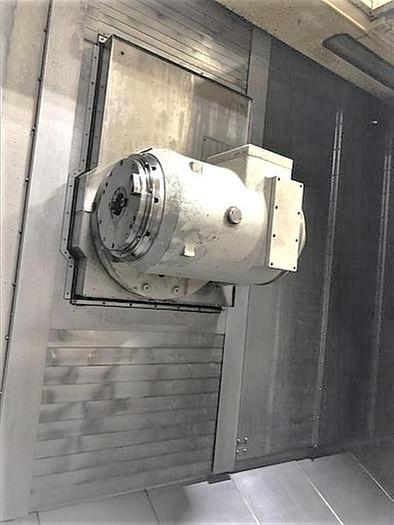

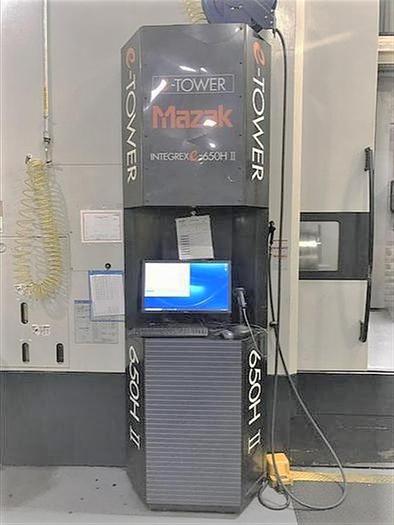

Y Axis Capability Full C Axis Spindle Rotation Live Milling/Drilling Capability B Axis Pendulum Head 120 Station Tool Changer 24" 3 Jaw Hydraulic Chuck on Main Spindle 24" 3 Jaw Hydraulic Chuck on Subspindle 10.24" Spindle Bore Option Chip Conveyor SMW SLUZ 5.1 Hydraulic Steady Rest (with capacity of 3.335" - 13.8") Long Boring Bar Changer - 3 Bar (4.72" diameter x 39.37" long x 396.9 lbs. max) Tool Presetter for Chuck Diameter up to 24" High Pressure 213 PSI Coolant with prep for 1000 psi Mazak Monitoring System B Probing Laser Measurement System for Tool Length CAT 50 Big Plus Mill Spindle w/ C6 Adaptor 8 MB Programming Memory Cyber Tower CNC Ethernet Interface USB Port Interface LAN Port Interface IC Memory Card Interface Cardbus Interface - 2 Slots Coolant Thru the Millhead Subspindle Spindle Orientation Auto Chuck Jaws Open/Close Mill Spindle Synchronized Tapping 8,265 Total Cutting Hours
Specifications
| Manufacturer | Mazak |
| Model | Integrex e-650 HS II/4000 Big Bore |
| Year | 2007 |
| Condition | Used |
| Stock Number | 116238 |
| Quantity | 1 |
| Control | Mazatrol Matrix |

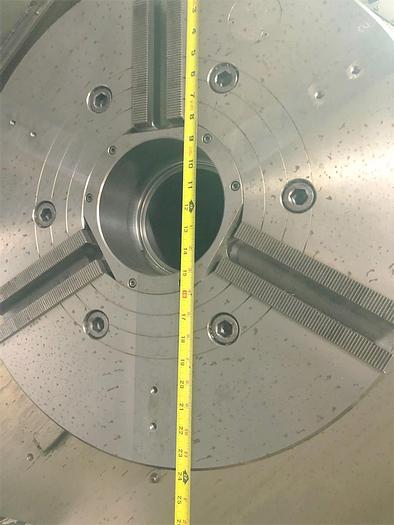

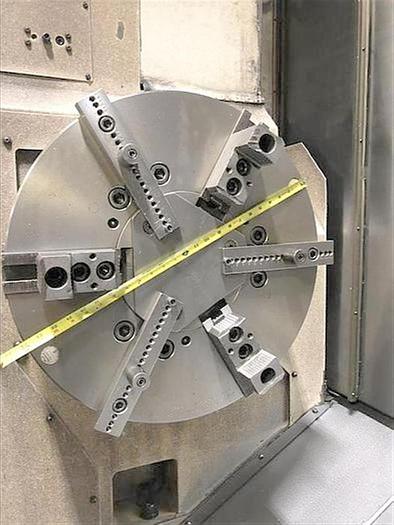

| Chuck Sizes Main / Subspindle | 24" Hydraulic / 24" Hydraulic |
| Maximum Swing | 36.2" |
| Maximum Cutting Diameter - Chucking | 36.2" |
| Maximum Cutting Length | 160" |
| X-Axis Travel | 82.91" |
| Y-Axis Travel | +/- 12.8" |
| Z-Axis Travel | 162.93" |
| W-Axis Travel (subspindle) | 160.2" |
| B-Axis Tilt Movement | 240 Degrees |
| B-Axis Increment | .0001 Degree |
| C1 Axis Spindle Rotation/C2 Axis Spindle Rotation | 0.0001 Degree / 0.0001 Degree |
| Main & Subspindle Nose / Spindle Bore | A2-15" / 10.24" |
| Main & Subspindle Speeds | 1,600 RPM in 2 Ranges |
| Main & Subspindle Motor | 60 HP |
| Mill Spindle Speed / Mill Spindle Motor | 10,000 RPM / 50 HP |
| Turret Type | 1 Position with ATC |
| Rotary Tool Spindle Taper | Big Plus CAT #50 |
| Number of Tool Positions | 120 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 10.23" / 19.68" / 66 lbs. |
| Rapid Traverse Rates X, Y, Z / W | 1575 IPM / 472 IPM |
| Machine Dimensions | 368" x 155" x 155" |
| Machine Weight | 77,200 lbs. |
