2016 Mazak Integrex e-420H-S II
No longer available
2016 Mazak Integrex e-420H-S II
$440,000 (USD)
Location:Florida
Description
Full C Axis Spindle Rotation .0001 Both Spdl's Live Milling/Drilling Capability Y Axis Capability B Axis Pendulum Style Upper Turret 40 Position ATC (2) 12" Hydraulic Chucks for each Spindle Chip Conveyor Cyber Tower CNC USB Port Interface LAN Port Interface Intelligent Thermal & Safety Sheild Virtual Machining e-Tower Coolant Thru Milling Head ATC Auto Recovery User Macros Mazak Tapping/Boring Tornado (EIA/ISO) 3-D Coordinate Conversion C1C2 Synchronous Function Automatic Tool Eye Hobbing Function W/O Tooling 5-Axis Machiningi Package Tool Radius Compensation 5-Axis EIA Dynamic Compensation 2 Shape Compensation for Rotary Axes All Available Manuals

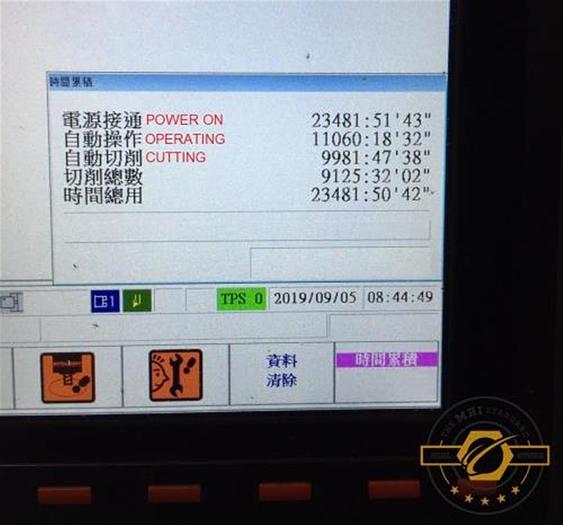

Showing 9,981 Cutting Hours
Specifications
| Manufacturer | Mazak |
| Model | Integrex e-420H-S II |
| Year | 2016 |
| Condition | Used |
| Stock Number | 116250 |
| Quantity | 1 |

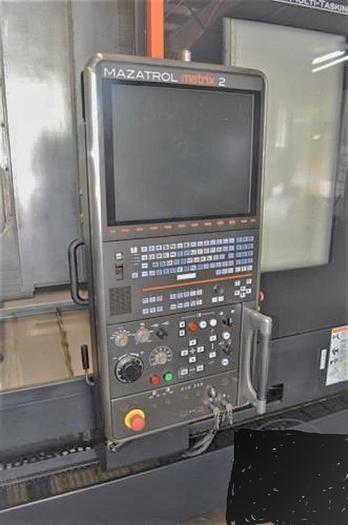

| Control | Mazatrol Matrix 2 |
| Chuck Sizes Main / Subspindle | 12" Hydraulic / 12" Hydraulic |
| Maximum Swing | 26.37" |
| Maximum Cutting Length | 54.43" |
| X-Axis Travel | 33.27" |
| Y-Axis Travel | 16.53" |
| Z-Axis Travel | 54.43" |
| B-Axis Tilt Total Movement / Increment | 240 Degrees / .0001 Degree |
| C1 Axis Spindle Rotation/C2 Axis Spindle Rotation | 0.0001 Degree / 0.0001 Degree |
| W-Axis Movement (2nd Spindle) | 54.02" |
| Main & Subspindle Nose / Bore | A2-8" / 3.583" |
| Main & Subspindle Speeds | 4,000 RPM |
| Spindle Motor / Sub Spindle Motor | 40 HP / 40 HP |
| Milling Spindle Speed / Motor | 12,000 RPM / 30 HP |
| Number of Tool Positions | 40 Station Tool Changer |
| Turret Type | 1 Station Pendulum Style Turret |
| Maximum Tool Diameter / Length / Weight | 10.23" / 19.68" / 66 lbs. |
| Rotary Spindle Taper | BBT #40 |
| Rapid Traverse Rates X, Y, Z / W | 1969 IPM / 1179 IPM |
| Machine Dimensions | 234" x 136" x 124" |
| Machine Weight | 44,910 lbs. |
