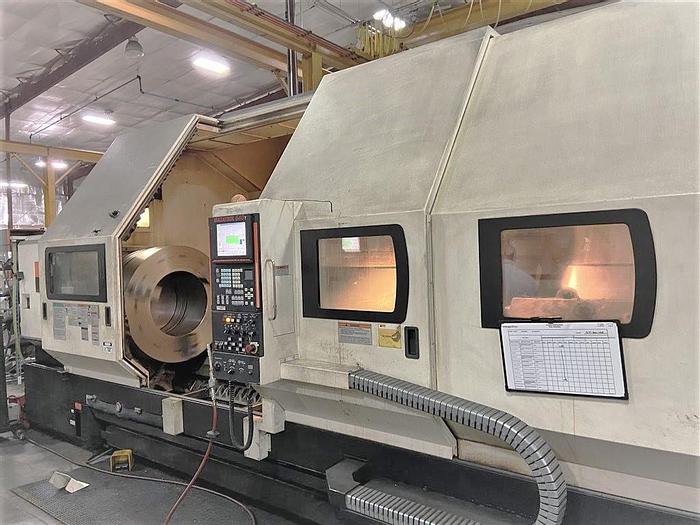

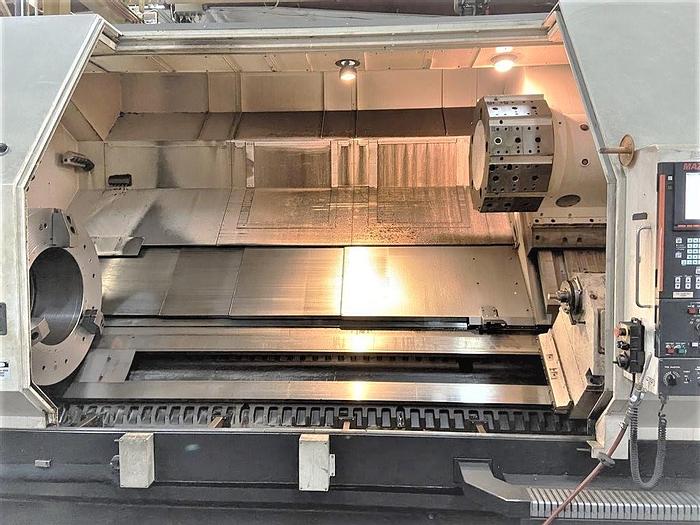

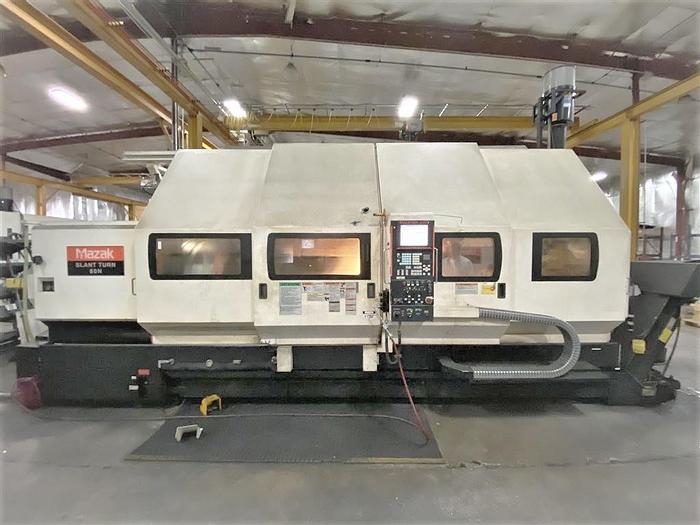

2013 Mazak Slant Turn 80NR 21.25" Bore
No longer available
2013 Mazak Slant Turn 80NR 21.25" Bore
$499,900 (USD)
Florida
Description
Mazatrol Fusion 640T Control

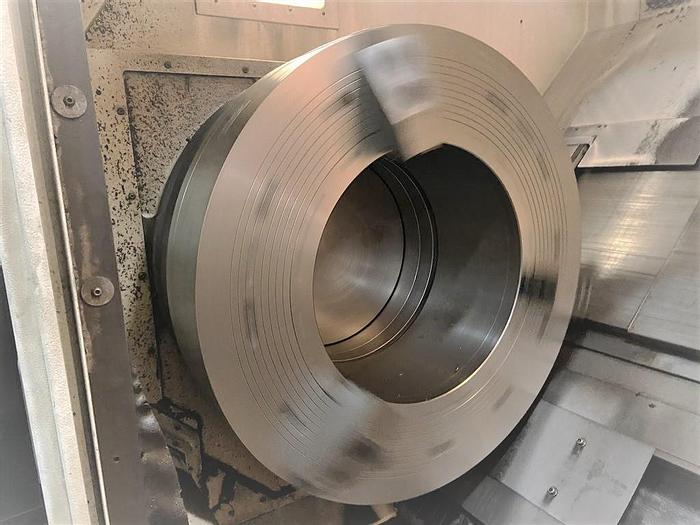

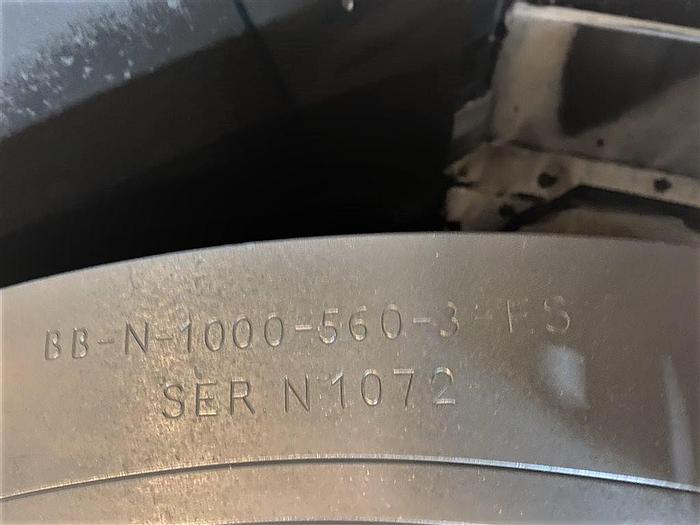

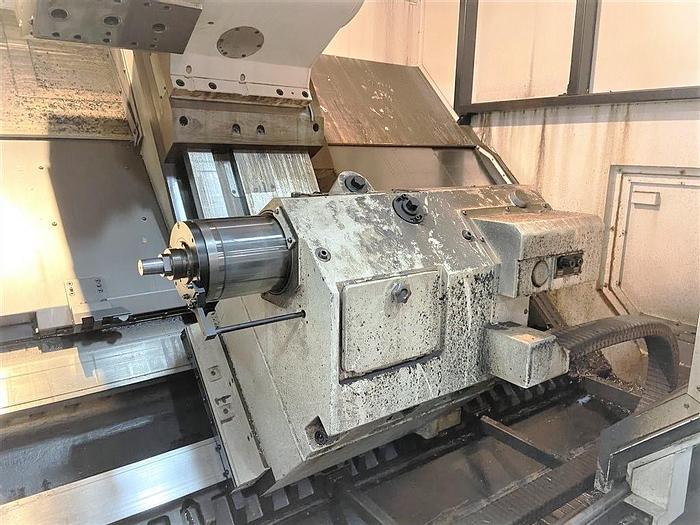

21.75" Spindle Bore Programmable Tailstock LNS Autoblok 39.4" Model BB-N-1000-560-3EES Front Mount Air Chuck

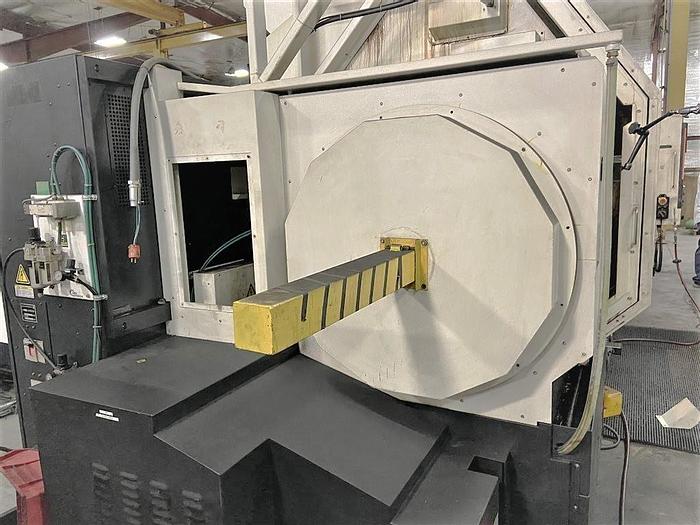

Rear Chuck Prep Rear Chuck Cover w/ Door Interlock Steady Rest Prep Thread Start Point Compensation Chip Conveyor

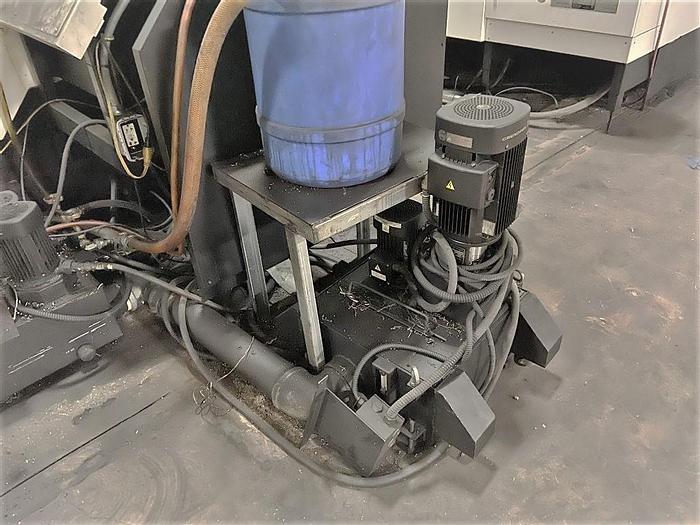

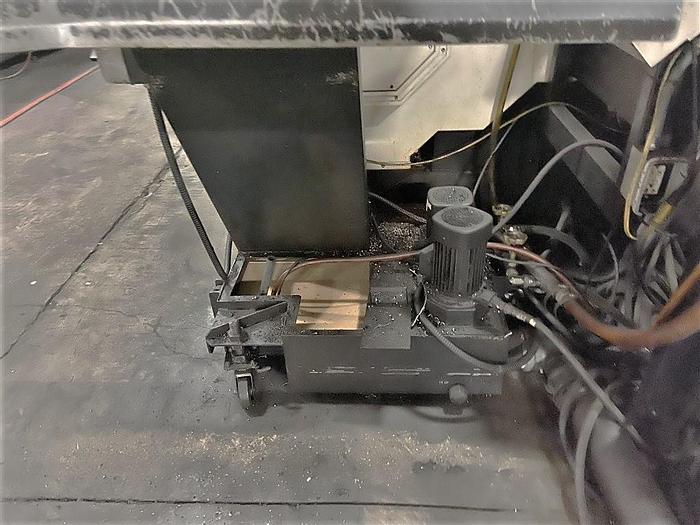

70 PSI High Power Coolant Flood Coolant

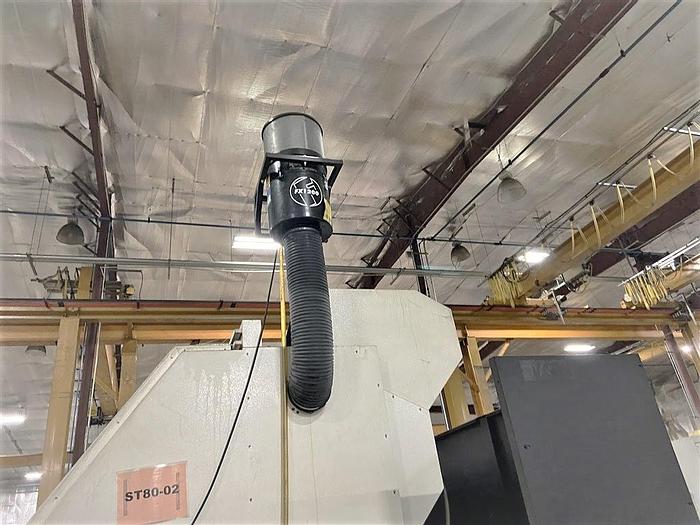

FX1200 Mist Collector Manual Pulse Generator Absolute Positioning System Multi-Tap Transformer
PCMCIA Interface - 2 Slots
3.5" Floppy Disk Interface
IC Memory Card Interface
RS 232 Port Interface
Backround Tool Path Check

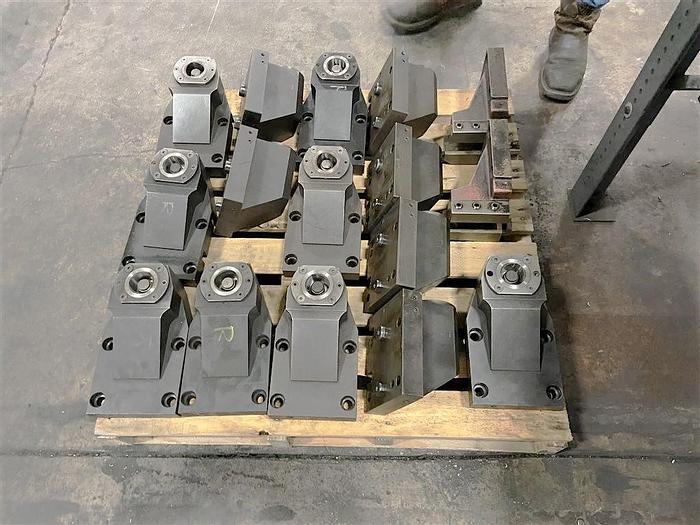

EIA/ISO Input Function All Available Manuals & Tooling About 8,000 Total Cutting Hours
Specifications
| Manufacturer | Mazak |
| Model | Slant Turn 80NR 21.25" Bore |
| Year | 2013 |
| Condition | Used |
| Stock Number | 116528 |
| Quantity | 1 |
| Control | Mazatrol Fusion 640T |
| Chuck Size | 39.4" Air Chuck w/ 22" hole |
| Maximum Swing over Bed | 42.13" |
| Maximum Machining Diameter | 42" |
| Maximum Machining Length | 118" |
| Maximum Bar Capacity | 21.75" |
| X-Axis Travel | 27.56" |
| Z-Axis Travel | 120.3" |
| Spindle Nose / Spindle Bore | 700mm H6 / 21.75" |
| Spindle Speeds | 2 - 300 RPM |
| Spindle Motor | 80 HP |
| Number of Speed Ranges | 4 Gear Ranges |

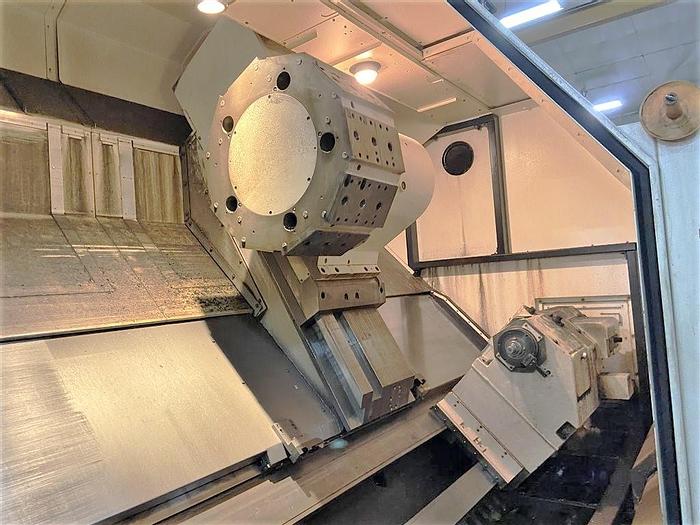

| Number of Tool Positions | 15 Position Turret |
| Rapid Traverse Rates X/Z | 315 IPM / 394 IPM |
| Machine Dimensions | 360" x 162" x 122" |
| Machine Weight | 39,600 lbs. |
