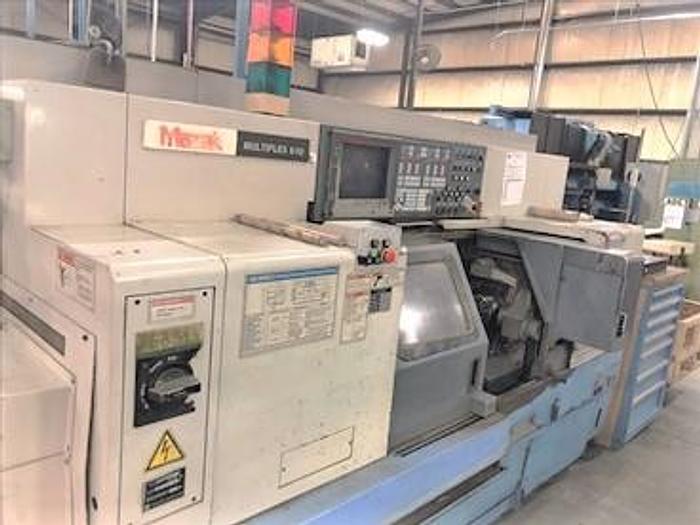

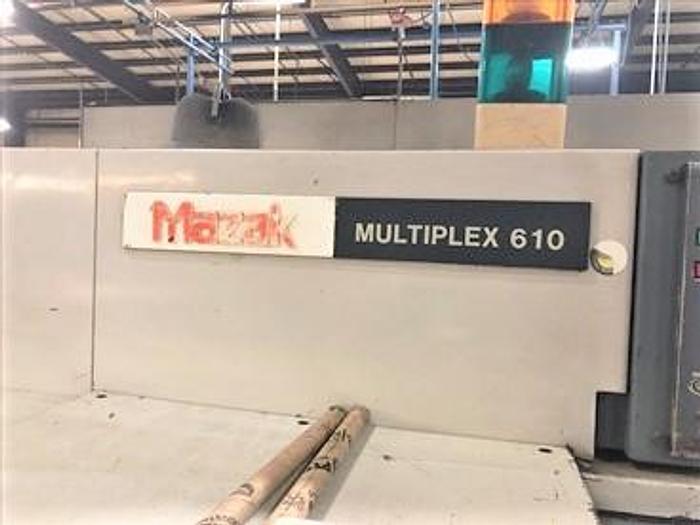

1996 Mazak Multiplex 610
No longer available
1996 Mazak Multiplex 610
$29,500 (USD)
Location:North Carolina
Description
Full C Axis .001 Degree Spindle Rotation on both Spindles

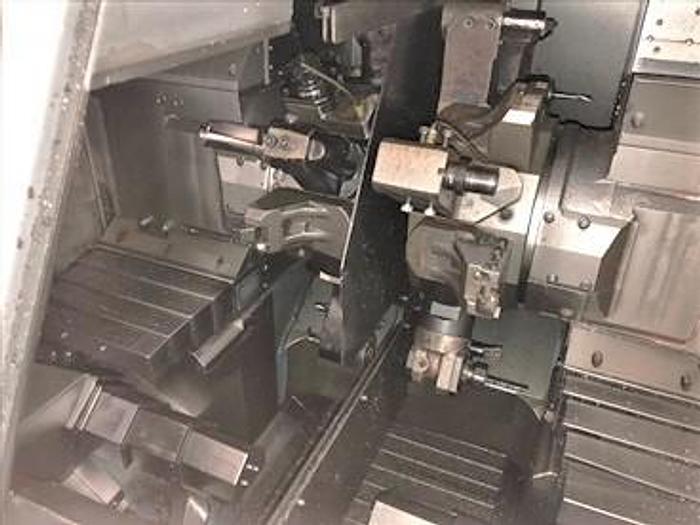

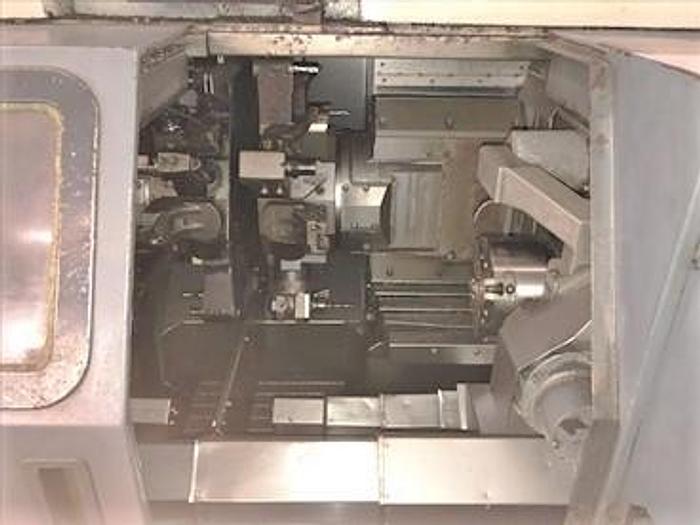

Live Milling/Drilling Capability - all 12 stations on both turrets
Dual Facing Spindle Design

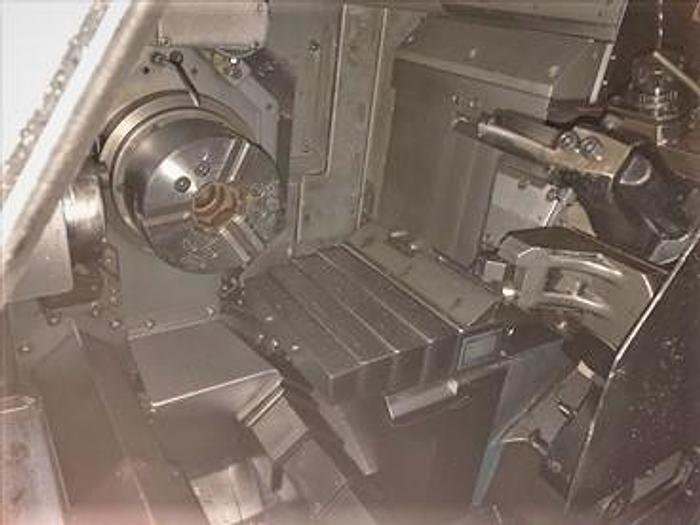

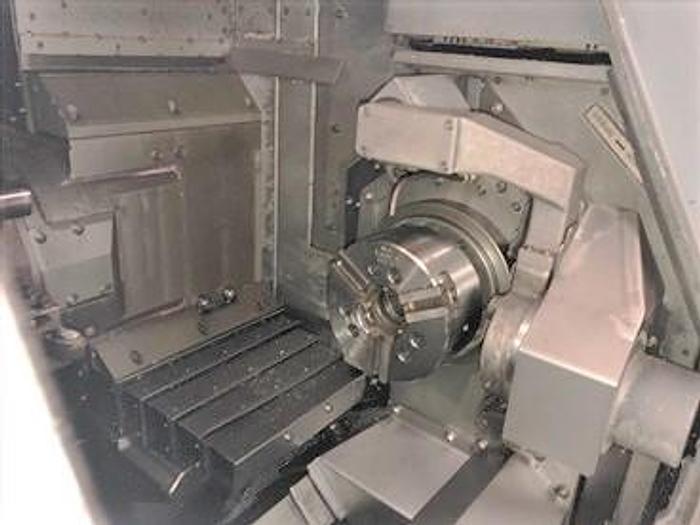

(2) 6" Kitagawa B206 3 Jaw Hydraulic Chucks
Rear Exit Chip Conveyor
Automatic Tool Eye (both)
Automatic Center Partition Auto Power Off Turret Air Blast (both) Auto Chuck Jaws Open/Close Operation Status Lights (3 colors) Automatic Workpiece Transfer System All Available Manuals

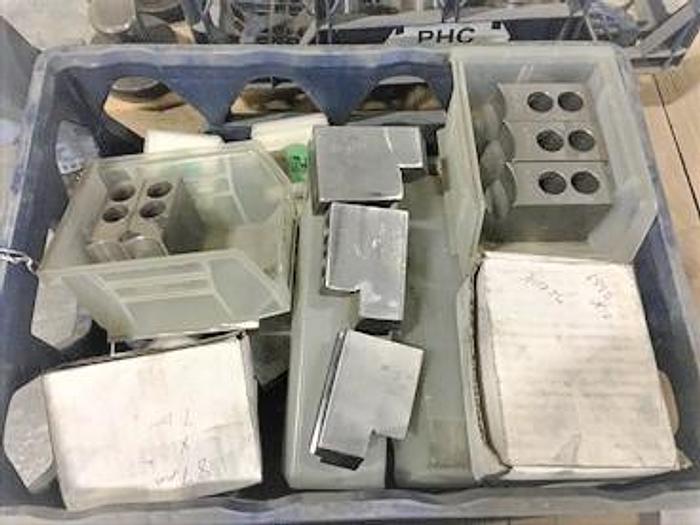

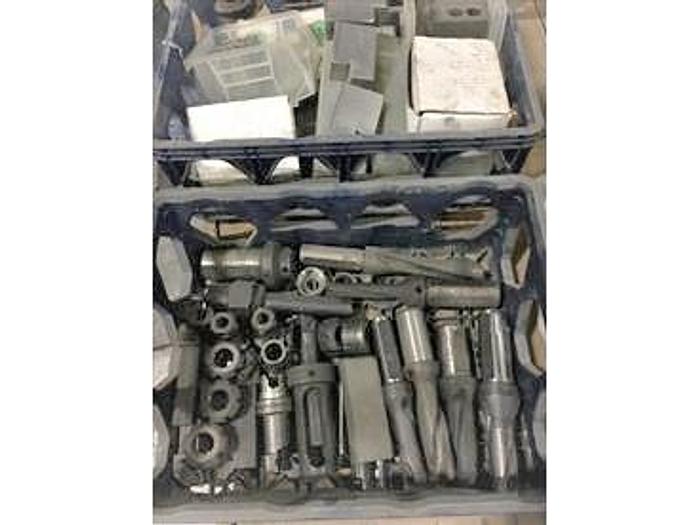

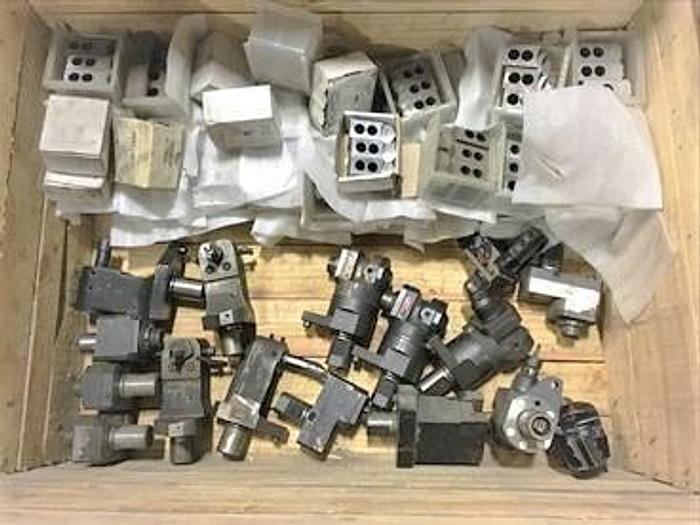

All Available Tooling inclusive of both live and static tooling, jaws, collets, drills, etc.
Specifications
| Manufacturer | Mazak |
| Model | Multiplex 610 |
| Year | 1996 |
| Condition | Used |
| Stock Number | 115056 |

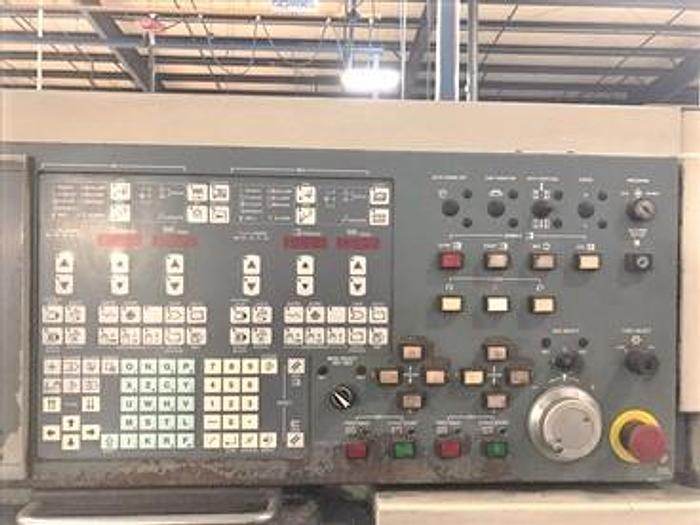

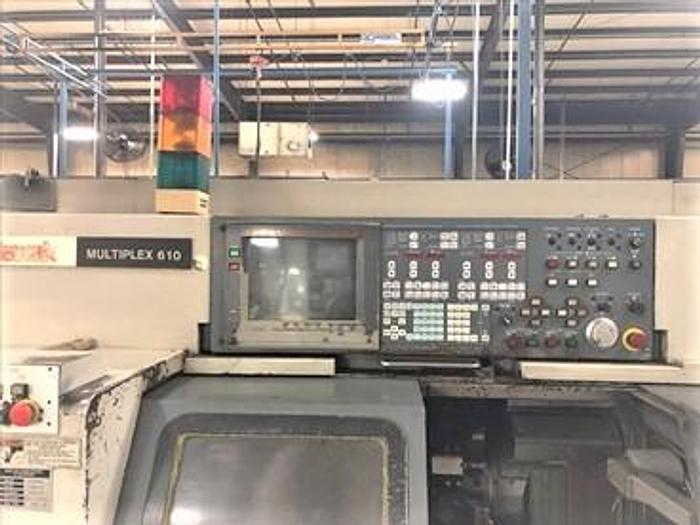

| Control | Mazatrol T-Plus |
| Maximum Swing over Bed | 13.8" |
| Standard Cutting Diameter | 9" |
| Maximum Cutting Length - Chuck Work/Shaft Work | 6.7" / 15.75" |
| Distance Between Spindles | 10" - 40.5" |
| Maximum Bar Capacity | 1.65" |
| X Axis Travel - Both | 7.9" |
| Z Axis Travel - Turret 1 / Turret 2 | 14.4" / 16.5" |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Nose / Spindle Bore - Both Spindles | A2-6" / 2.05" |
| Spindle Speeds - Both Spindles | 35 - 5,000 RPM |
| Spindle Motor - Both Spindles | 15 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 3 HP |
| Number of Turret Positions | 12 Stations each |
| Rapid Traverse Rates X/Z | 945 IPM / 1180 IPM |
| Machine Dimensions | 129" x 67" x 74" |
| Machine Weight | 14,300 lbs. |
