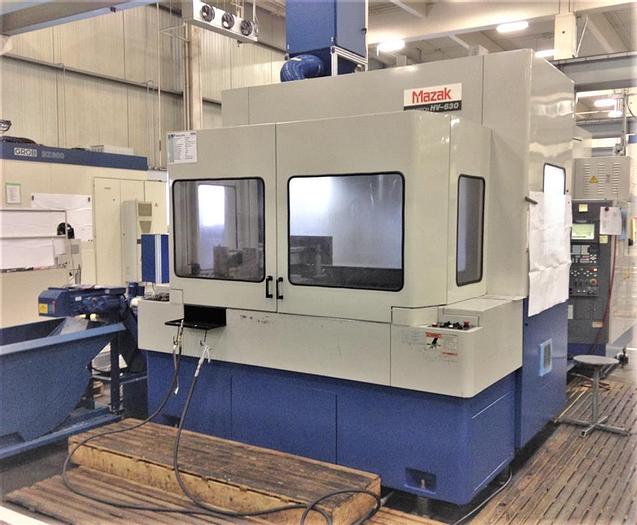

1999 Mazak HV630 5 Sided Machining Center
1999 Mazak HV630 5 Sided Machining Center
$34,950 (USD)
Location:Ohio
Description
2 Pallet Changer System 5 Sided Capability with Horizontal/Vertical Head Software for Allowing for Angled Machining in Incremental Movements of .001 Degree Full 4th Axis NC Rotary Table- .001 Degree Mazak MMSB Part Probing with Probe included Automatic Tool Length Measurement Probe 80 Tool Magazine Chip Conveyor Coolant Thru Spindle - 213 PSI Rigid Tapping EIA/ISO Input Function Flood & Niagara Coolant Spindle Chiller System Air Blast System Adaptive Feedrate Control Tool Breakage Detection Tool Life Monitoring EIA/ISO Input Function Helical Interpolation Hand Held Manual Pulse Generator RS 232 Port Interface IC Memory Card Interface 3.5" Floppy Disk Drive Interface PCMCIA Type II Interface - 2 Slots Mazak Tapping/Boring Tornado Tool Path Solid Model Mazak Tapping/Boring Tornado
**Refurbished in 2014 with new Linear Rails & New Ballscrews, and Geometry**
**Estimated Rigging Cost $ 4,500**
**Machine needs to be removed by Mid May**
Specifications
| Manufacturer | Mazak |
| Model | HV630 5 Sided Machining Center |
| Year | 1999 |
| Condition | Used |
| Stock Number | 115046 |

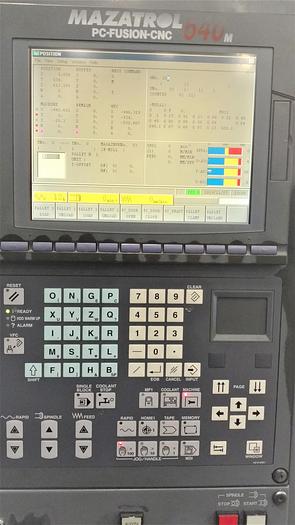

| Control | Mazatrol Fusion 640M |

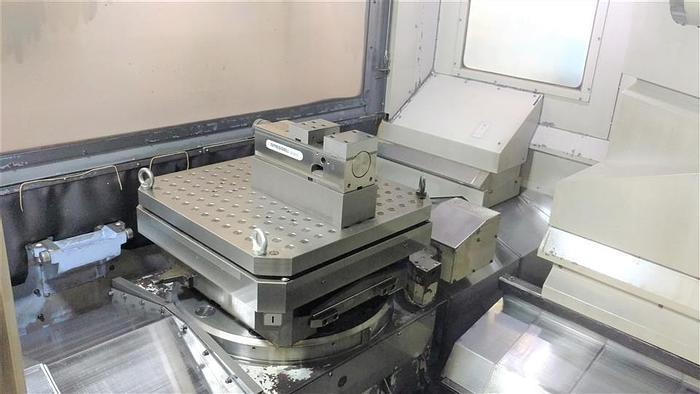

| Pallet Size / Number of Pallets | 24.8" x 24.8" / 2 Pallets |
| Maximum Table Load | 2,640 lbs. |
| Table Indexing | .001 Degree - Full 4th Axis |
| Maximum Workpiece Size Diameter x Height | 35.43" x 37.4" |
| Distance Spindle Center to Table Top | 7.09" - 30.58" |
| Distance Spindle Center to Table Top - Horizontal | 3.15" - 34.65" |
| X-Axis Travel | 43.34" |
| Y-Axis Travel | 31.5" |
| Z-Axis Travel | 41.34" |
| Spindle Nose | CAT #50 |
| Spindle Speeds | 35 - 4,000 RPM |
| Spindle Motor / Ranges | 30 HP / 3 Speeds |
| Maximum Spindle Torque | 430 ft./lbs. |
| Rapid Traverse Rates | 787 IPM |
| Number of Tool Positions | 80 Station Tool Changer |
| Maximum Tool Diameter / Weight | 5.3" / 59.4 lbs. |
| Machine Dimensions | 243" x 131" x 139" |
| Machine Weight | 44,000 lbs. |
