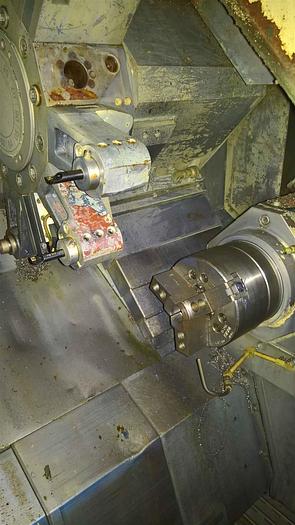

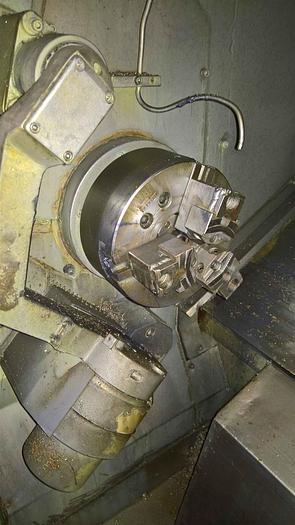

1993 Mazak SQT15MS Mark II w/ Gantry
No longer available
1993 Mazak SQT15MS Mark II w/ Gantry
$19,500 (USD)
Location:Illinois
Description

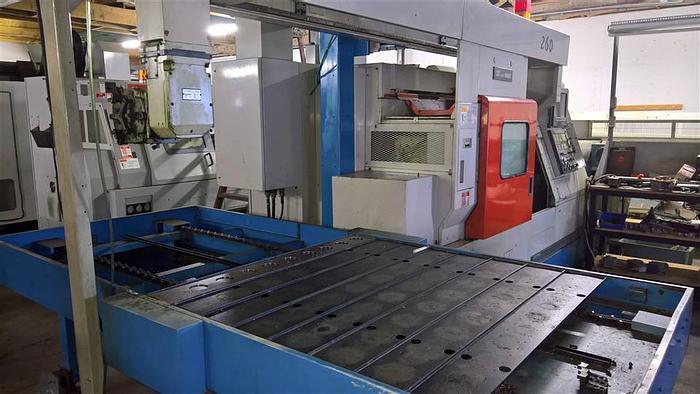

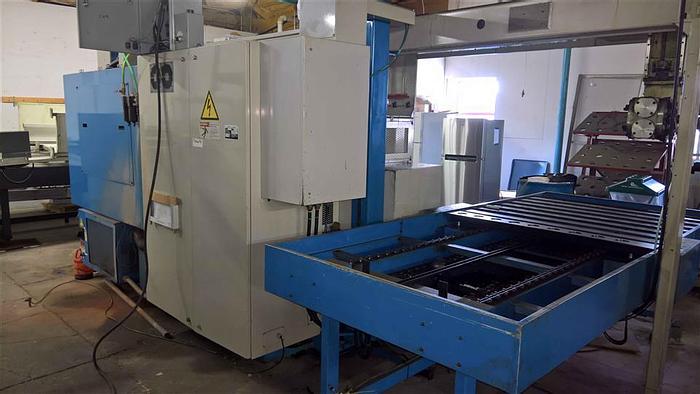

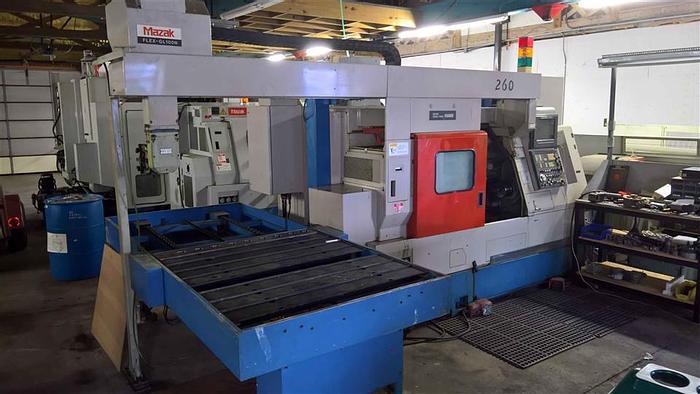

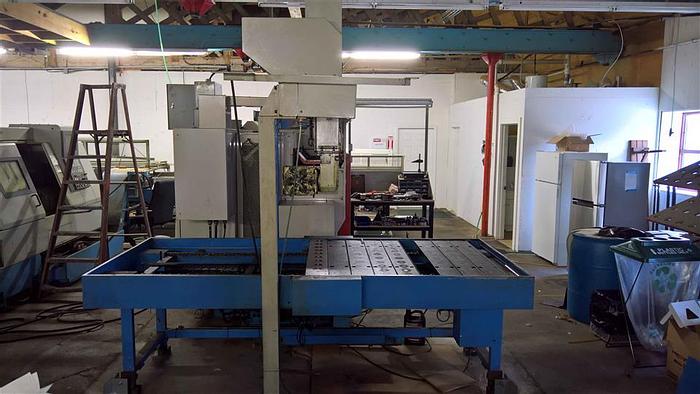

Mazak GL-75 Gantry Loading System Full "C" Axis Spindle Rotation Live Milling/Drilling Capabilty Subspindle 8" Hydraulic Chuck - Main 6" Hydraulic Chuck - Subspindle Automatic Tool Eye All Available Manuals Multi-Tap Transformer
Specifications
| Manufacturer | Mazak |
| Model | SQT15MS Mark II w/ Gantry |
| Year | 1993 |
| Condition | Used |
| Stock Number | 114946 |

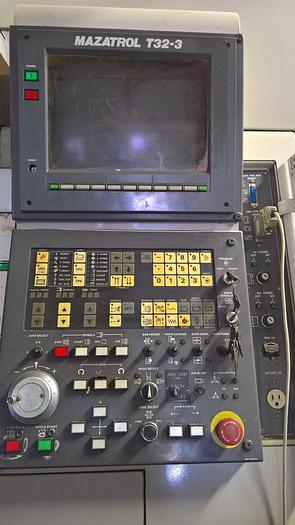

| Control | Mazatrol T32-3 |
| Chuck Sizes Main / Subspindle | 8" Hydraulic Chuck / 6" Hydraulic Chuck |
| Maximum Swing | 20.91" |
| Maximum Swing over Bed | 15.74" |
| Maximum Cutting Diameter | 11.81" |
| Maximum Turning Length | 20.91" |
| Maximum Bar Capacity | 2.0" |
| X-axis travel | 7.125" |
| Z-Axis Travel | 22.75" |
| B-Axis Travel (Subspindle) | 23.25" |
| Spindle Nose / Spindle Bore | A2-6" / 2.44" |
| Spindle Speeds | 35 - 5,000 RPM |
| Spindle Motor 30 Minutes/Continuous | 25 HP / 20 HP |
| Subspindle Speed | 180 - 5,000 RPM |
| Subspindle Motor | 10 HP |
| Rotary Tool Speed / Rotary Motor | 120 - 3,000 RPM / 5 HP |

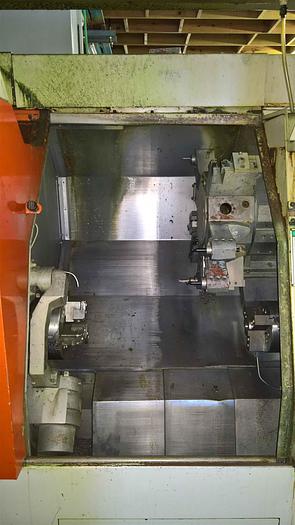

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 1180 IPM |
| Machine Dimensions | 120" x 62" x 80" (machine only) |
| Machine Weight | 10,365 lbs. (machine only) |
