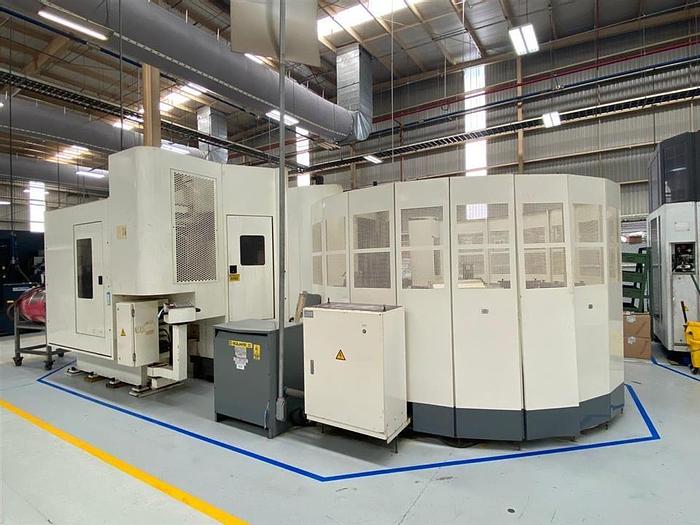

2006 Kitamura Mycenter HX-400iF w/ 8 Pallet Pool
No longer available
2006 Kitamura Mycenter HX-400iF w/ 8 Pallet Pool
$79,500 (USD)
Location:Michigan
Description

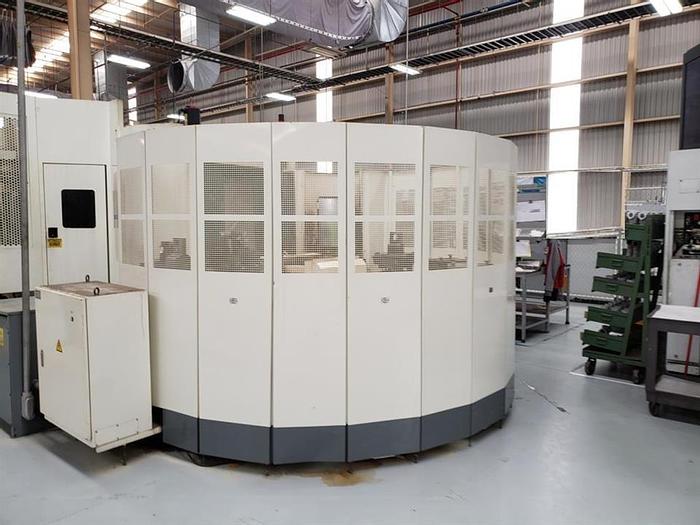

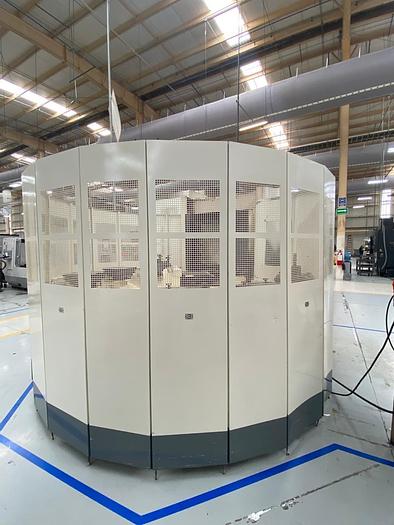

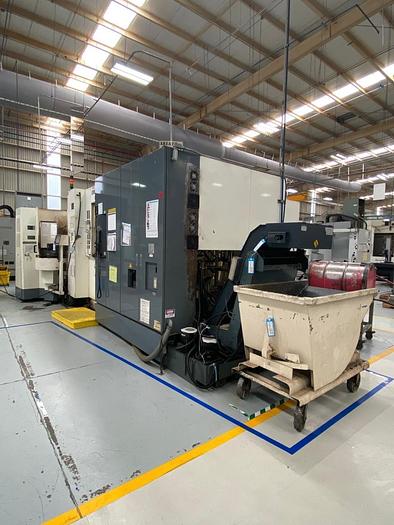

8 Pallet Pool System Full 4th Axis Pallet Rotation Cool Jet Coolant Thru Spindle Chip Conveyor Renishaw Probe Ethernet Capable Box Way Construction 4-Axis Chilled Lead Screws & Spindle Twin Lead Screws All Axis 2 Speed Gear Box All Available Manuals
Specifications
| Manufacturer | Kitamura |
| Model | Mycenter HX-400iF w/ 8 Pallet Pool |
| Year | 2006 |
| Condition | Used |
| Stock Number | 117353 |

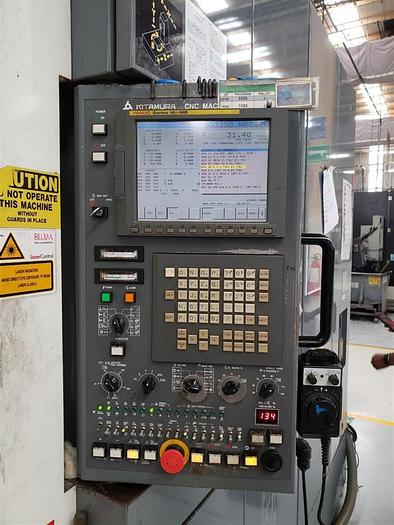

| Control | Fanuc 16i-MB |
| Pallet Size / Number of Pallets | 15.8" x 15.8" / 8 Pallets |
| Maximum Weight on Table | 880 lbs. |

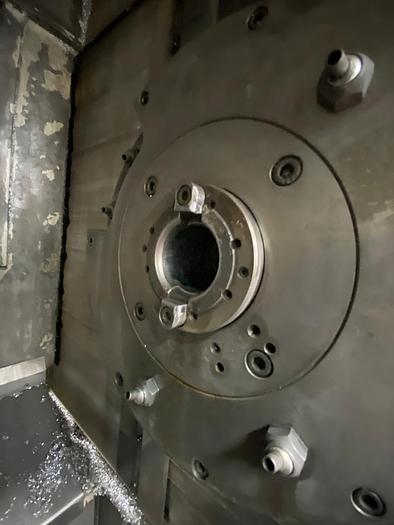

| Pallet Indexing | .001 Degrees Full 4th |
| X-Axis Travel | 28.9" |
| Y-Axis Travel | 24" |
| Z-Axis Travel | 24" |
| Spindle Taper | BT #40 |
| Spindle Speeds | 13,000 RPM Geared Head |
| Spindle Motor | 25 HP |

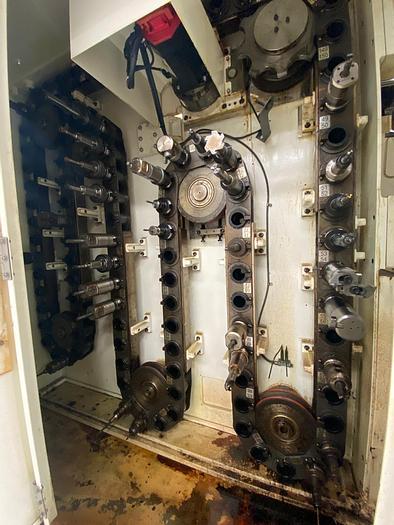

| Number of Tool Positions | 150 Station Tool Changer |
| Tool Change Time Tool to Tool | 1 second |
| Tool Change Time Chip to Chip | 3.2 seconds |
| Maximum Tool Diameter / Length / Weight | 5.91" / 15.7" / 22 lbs. |
| Rapid Traverse Rates | 1969 IPM |
| Machine Dimensions | n/a |
| Machine Weight | 25,000 lbs. |
