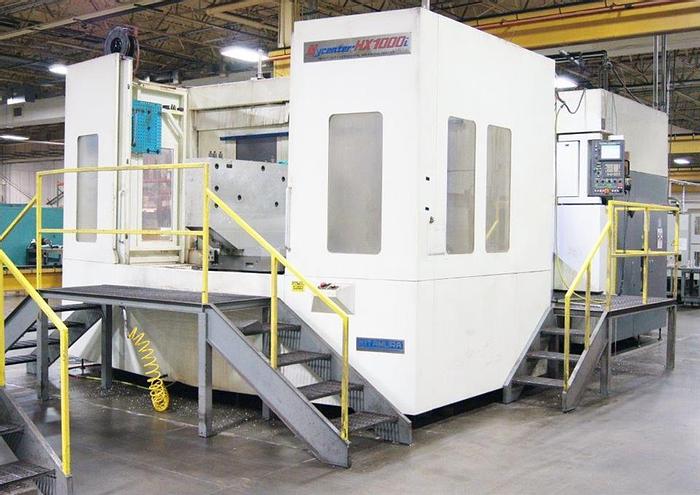

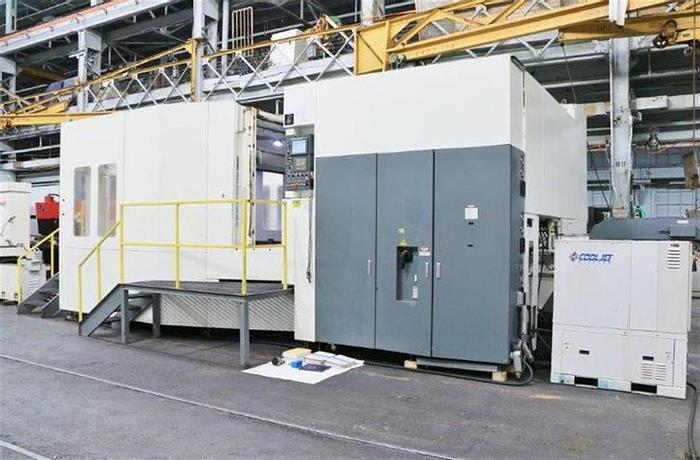

2010 Kitamura HX-1000i
2010 Kitamura HX-1000i
$199,500 (USD)
Location:New Jersey
or
Call (863) 439-6066
Description
2 Pallet Changer System 150 Positions Tool Changer Cool Jet Hi-Press. 1000 PSI Cool. Thru Spindle Full 4th Axis Rotary Table 5th Axis Drive / Wiring Renishaw Part Probing Syst. w/ OMP400 Probe Chip Conveyor Chip Auger System RS-232 Port Interface 3.5" Floppy Disk Interface AI Nano High Precision Contour Control 500 Block Lookahead 2 Speed Geared Boxed Ways Rigid Tapping Linear Scale Feedback - All Axis' Hand Held Manual Pulse Generator Twin Ball Screws Tool Retract/Recover Program Restart Approximately (60) BT 50 Tool Holders (2) Heavy Duty Fixed Operators Stands All Available Manuals **Tsudakoma RWB500R 5th axis table and tailstock available at addl cost**
Specifications
| Manufacturer | Kitamura |
| Model | HX-1000i |
| Year | 2010 |
| Condition | Used |
| Stock Number | 114159 |

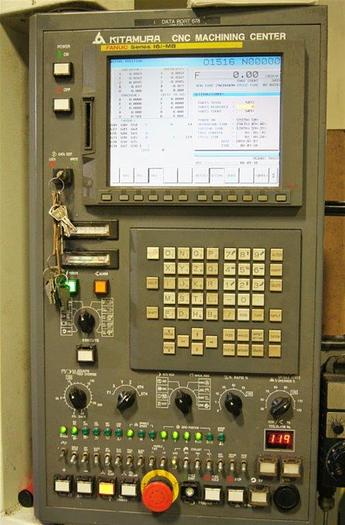

| Control | Fanuc 16i-MB |
| Pallet Size / Number of Pallets | 39.3" x 39.3" / 2 Pallet Changer |
| Maximum Weight on Table | 6,600 lbs. |

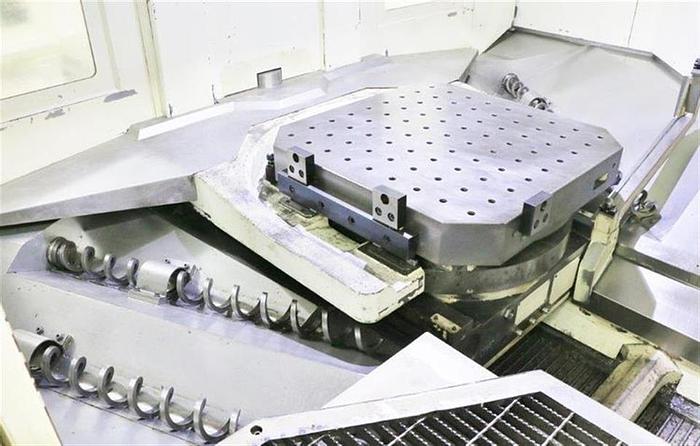

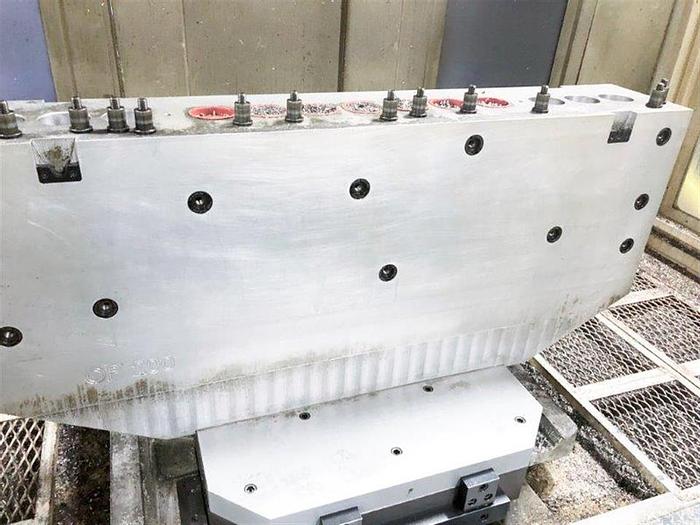

| Pallet Indexing | .001 Degree Full 4th Axis Rotary Table |
| X-Axis Travel | 80.31" |
| Y-Axis Travel | 51.97" |
| Z-Axis Travel | 53.94" |

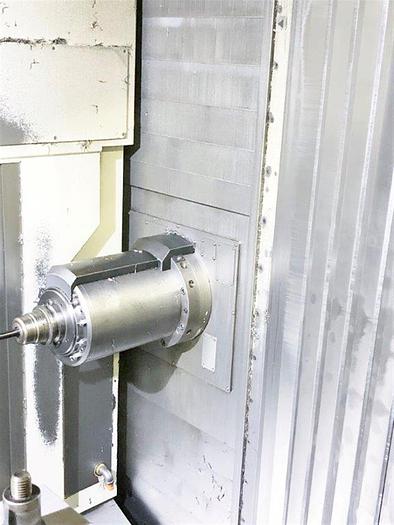

| Spindle Taper | BT #50 |
| Spindle Speeds | 35 - 8,000 RPM |
| Spindle Motor | 40 HP Geared |

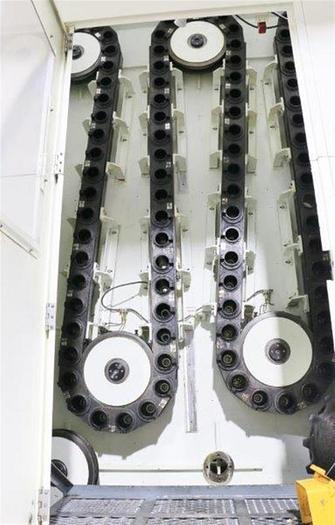

| Number of Tool Positions | 150 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 4.925" / 25.6" / 66 lbs. |
| Tool Change Time Tool to Tool | 3 Seconds |
| Tool Change Time Chip to Chip | 7 Seconds |
| Rapid Traverse Rates | 1417 IPM |
| Cutting Feedrates | 1417 IPM |
| Machine Dimensions | 194" x 345" x 150" |
| Machine Weight | 126,104 lbs. |
