2005 Haas MDC-500 Mill Drill Center
No longer available
2005 Haas MDC-500 Mill Drill Center
$29,950 (USD)
Location:Maryland
Description
Coolant Thru the Spindle Renishaw Probing System Rigid Tapping Chip Auger Side-Mount Tool Changer 15" Color LCD Monitor w/ USB Quick Code Programming Macros Brushless Servos on All Axes Cut Primarily Aluminum All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | MDC-500 Mill Drill Center |
| Year | 2005 |
| Condition | Used |
| Stock Number | 116267 |

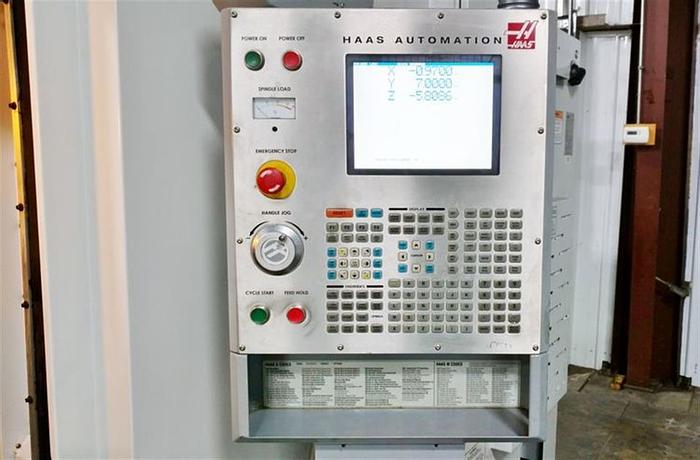

| Control | Haas CNC Control |

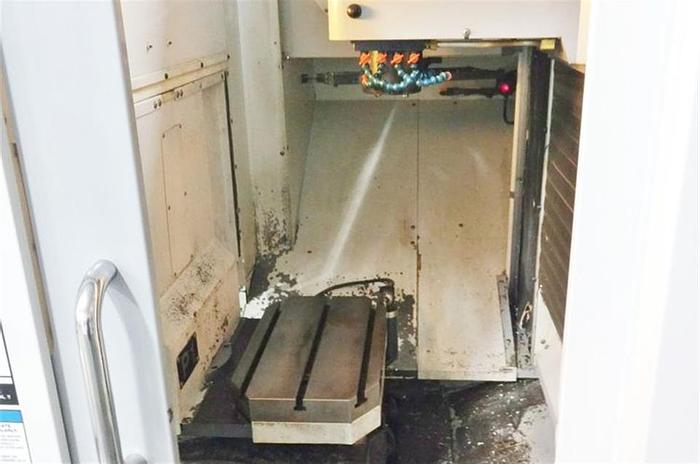

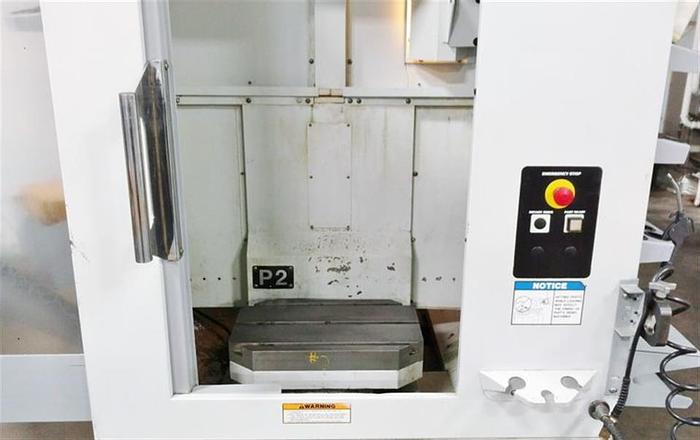

| Table Size | 20"x12.75" (2) Pallets |
| Maximum Table Load | 700 lbs |
| X-Axis Travel | 20" |
| Y-Axis Travel | 14" |
| Z-Axis Travel | 20" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 10,000 rpm |
| Spindle Motor | 20 hp |
| Spindle Torque | 75 ft lb @ 1,400 rpm |

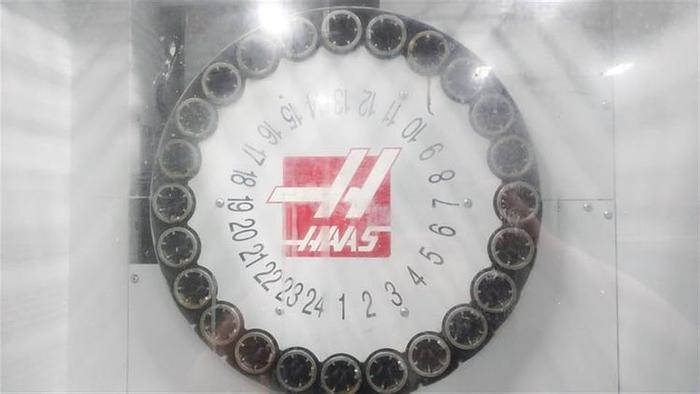

| Tool Magazine Capacity | 24+1 Side Mount |
| Maximum Tool Diameter / Length / Weight | 3 "/ NA / 12 lbs |
| Tool Change Time Chip to Chip | 4.8 Seconds |
| Rapid Traverse Rates | 1,000 ipm |
| Machine Dimensions LxWxH | 143"x134"x113" |
| Machine Weight | 14,000 lbs |
