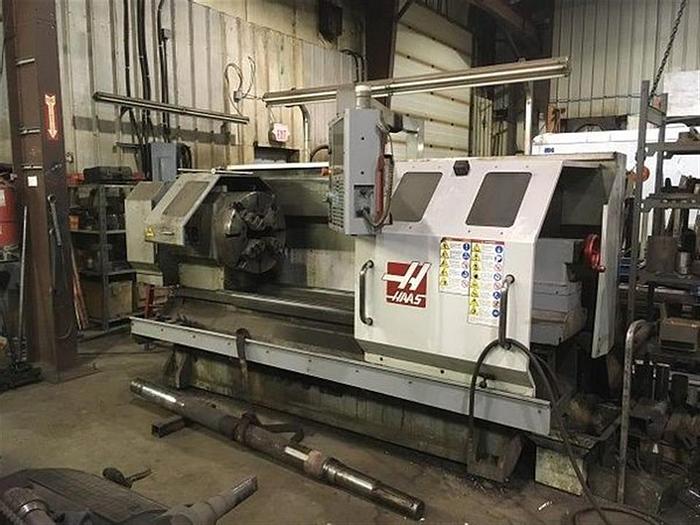

2007 Haas TL-3B Big Bore
No longer available
2007 Haas TL-3B Big Bore
$59,500 (USD)
Canada
Description
8.5" Big Bore Spindle
24" 4 Jaw Front Manual Chuck
24" 3 jaw Rear Manual Chuck
Tailstock
Tool Post Vector Drive Spindle 15" Color LCD Monitor Integral Chip-Flow Channel 1 MB Program Memory Memory Lock Key Switch USB Port Interface
RS232 Port Interface 2 Speed Geared Headstock
Haas Operators Manual
Specifications
| Manufacturer | Haas |
| Model | TL-3B Big Bore |
| Year | 2007 |
| Condition | Used |
| Stock Number | 116425 |
| Control | Haas CNC Control |
| Chuck Size | 24" 4 Jaw Manual Front & 24" 3 Jaw Manual Rear |
| Maximum Swing over Bed | 30" |
| Maximum Swing Over Cross Slide | 18.5" |
| Maximum Turning Diameter | 30" |
| Maximum Turning Length | 60" |
| Maximum Bar Capacity | 8.5" |
| X-Axis Travel | 16" |
| Z-Axis Travel | 60" |
| Spindle Nose / Spindle Bore | A2-15" / 8.5" |
| Spindle Speed | 650 RPM |
| Spindle Motor | 30 HP - 2 Speed Geared |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Tailstock Center | MT #3 |
| Machine Dimensions | 132" x 97" x 79" |
| Machine Weight | 9,624 lbs. |
