2007 Haas SL-10 Chucker
No longer available
2007 Haas SL-10 Chucker
$18,500 (USD)
Location:Arkansas
Description
6" 3 Jaw Hydraulic Chuck Tool Presetter System Chip Auger High Speed Brushless Servos RS 232 Port Interface Coolant System with Tank & Pump All Available Manuals All Available Tooling
*This unit is a chucker without a tailstock Machine On Hours 2,216, but have been effected by a software update
Specifications
| Manufacturer | Haas |
| Model | SL-10 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 117099 |
| Quantity | 1 |

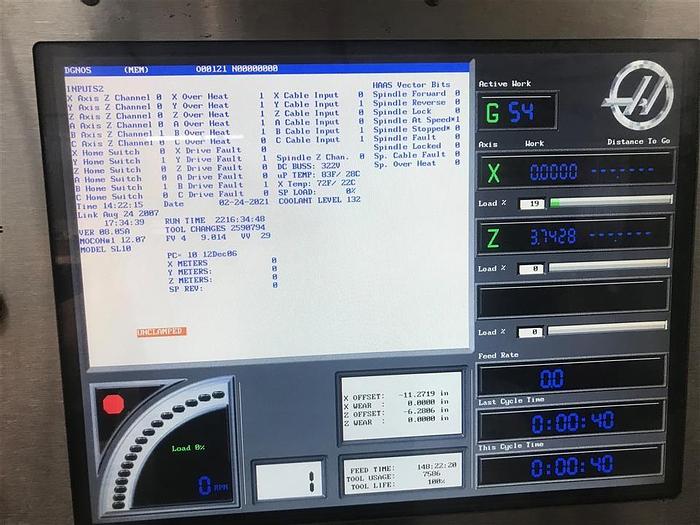

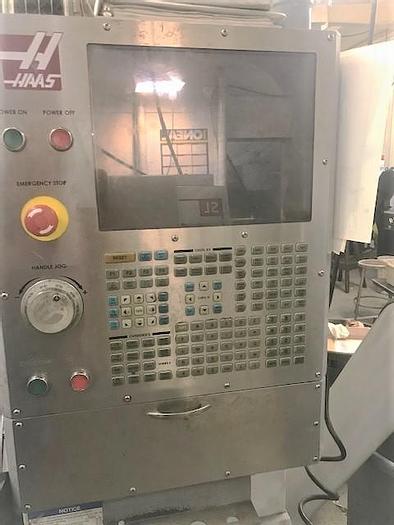

| Control | Haas 32 BIT |

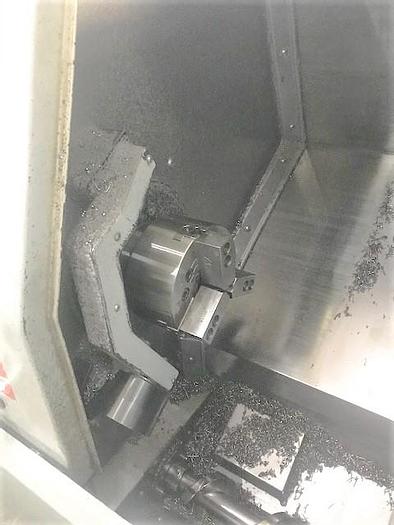

| Chuck Size | 6" 3 Jaw Hydraulic |
| Maximum Turning Diameter | 10" |
| Maximum Turning Length | 14" |
| Maximum Distance Between Centers | 16.5" |
| Maximum Bar Capacity | 1.75" |
| X-Axis Travel | 6.25" |
| Z-Axis Travel | 14" |
| Spindle Nose / Spindle Bore | A2-5" / 2.31" |
| Spindle Speed | 6,000 RPM |
| Spindle Motor | 15 HP |
| Spindle Torque | 75 ft./lbs. |

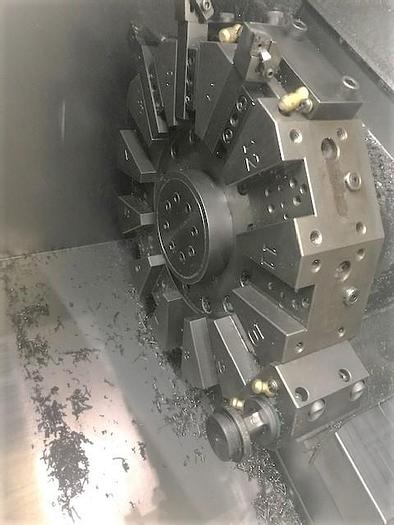

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 1,200 IPM |
| Machine Dimensions | 96"x54"x70" |
| Machine Weight | 6,000 lbs. |
