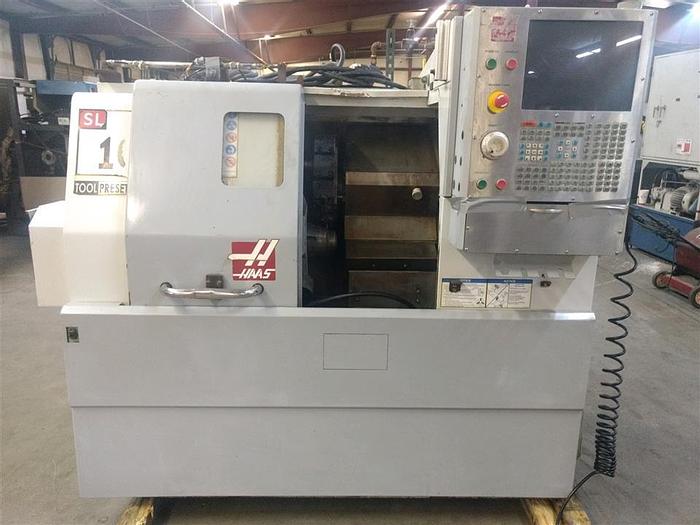

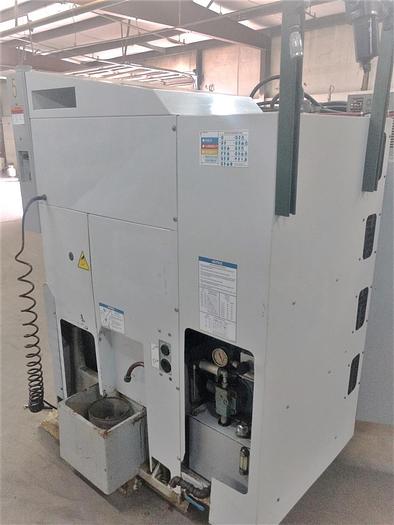

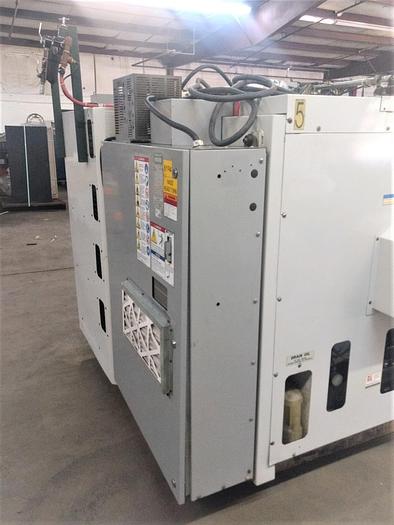

2008 Haas SL-10 Chucker
No longer available
2008 Haas SL-10 Chucker
$17,500 (USD)
Location:North Carolina
Description

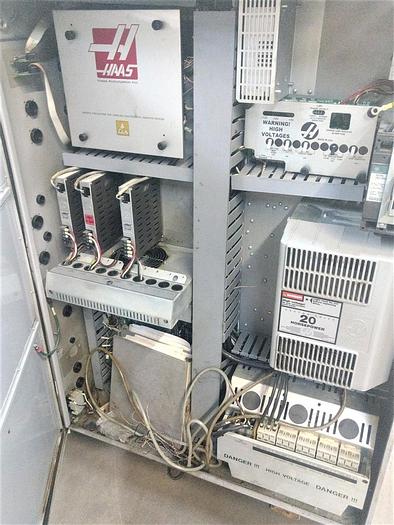

Collet Chuck Tool Presetter System Complete Coolant System with Pump RS 232 Port Interface High Speed Brushless Servos All Available Manuals Wired 360/480V Electrics
Specifications
| Manufacturer | Haas |
| Model | SL-10 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 117153 |
| Quantity | 1 |

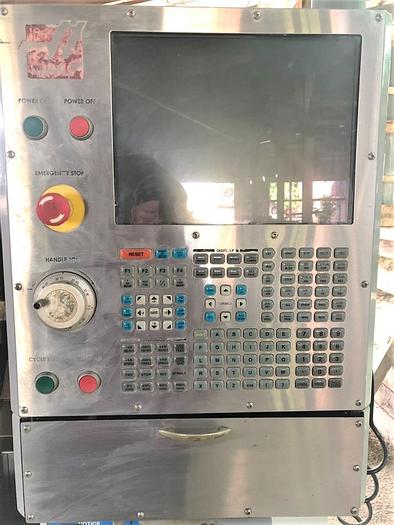

| Control | Haas 32 BIT |

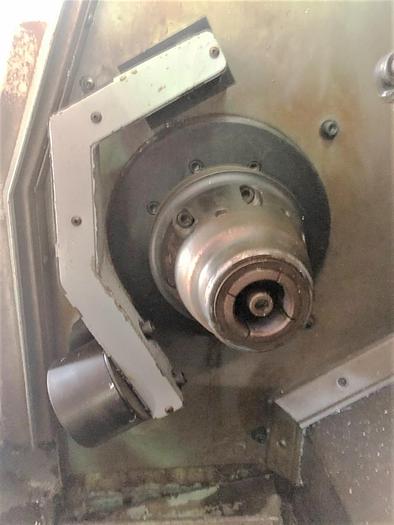

| Chuck Size | Collet Chuck |
| Maximum Turning Diameter | 10" |
| Maximum Turning Length | 14" |
| Maximum Distance Between Centers | 16.5" |
| Maximum Bar Capacity | 1.75" |
| X-axis travel | 6.25" |
| Z-Axis Travel | 14" |
| Spindle Nose / Spindle Bore | A2-5" / 2.31" |
| Spindle Speed | 6,000 RPM |
| Spindle Motor | 15 HP |
| Spindle Torque | 75 ft./lbs. |

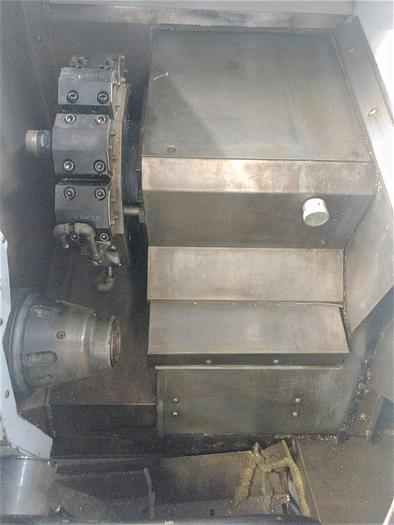

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 1,200 IPM |
| Machine Dimensions | 96" x 54" x 70" |
| Machine Weight | 6,000 lbs. |
