2004 Haas VF3D
No longer available
2004 Haas VF3D
$39,950 (USD)
Location:Mississippi
Description

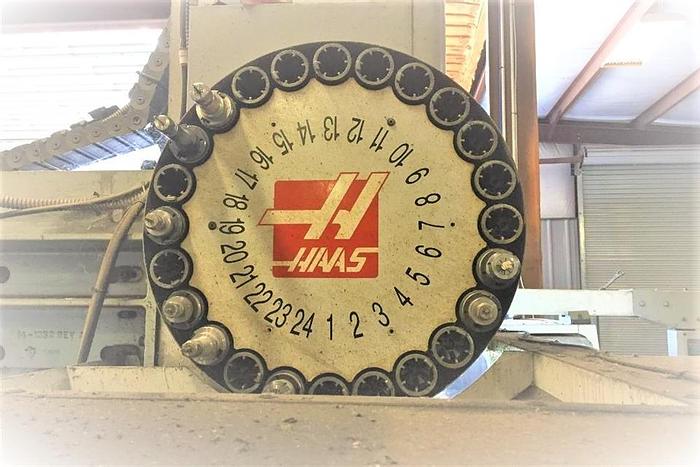

24 Station Side Mounted Tool Changer

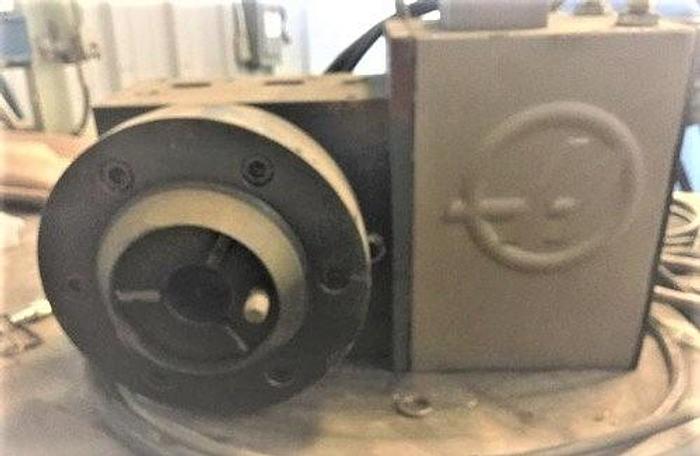

Haas HRT-160 Rotary Table w/6" Chuck
4th Axis Drive & Wiring
10,000 RPM Spindle
Auger Style Chip Conveyor Programmable Coolant Nozzle 1 MB Program Memory Visual Quick Code Programming Spindle Orientation Coordinate Rotation & Scaling Remote Jog Handle User Definable Macros Vector Drive Spindle RS 232 Port Interface Coolant System All Available Manuals Wired 208/230V Electrics
Manufactured New in April 2004
Specifications
| Manufacturer | Haas |
| Model | VF3D |
| Year | 2004 |
| Condition | Used |
| Stock Number | 117531 |
| Control | Haas 32 BIT |

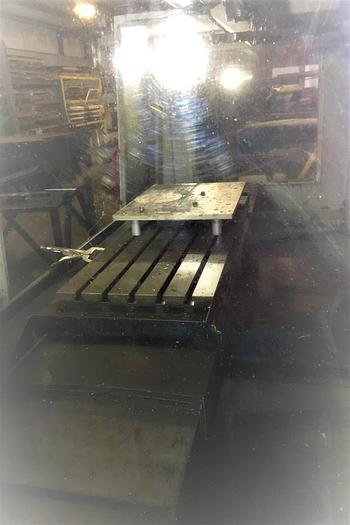

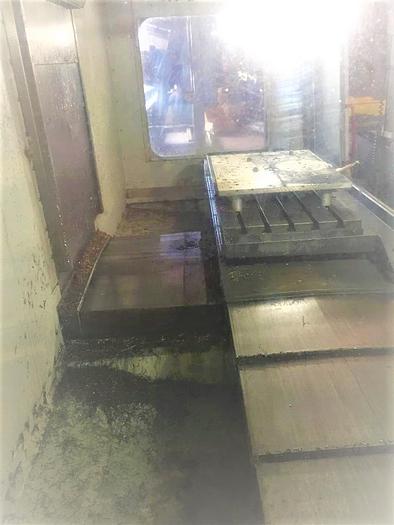

| Table Size | 48" x 18" |
| Maximum Weight on Table | 3,500 lbs. |
| Distance Spindle Nose to Table Top | 4" - 29" |
| X-axis travel | 40" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 25" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 10,000 RPM Direct Drive |
| Spindle Motor | 20 HP Brushless |
| Number of Tool Positions | 24 Station Side Mounted ATC |
| Rapid Traverse Rates | 1,000 IPM |
| Machine Dimensions | 118" x 98" x 95" |
| Machine Weight | 12,500 lbs. |
